Body Control Module: Service and Repair

Intelligent Switching Unit Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery connector.

2. Remove the instrument panel under cover.

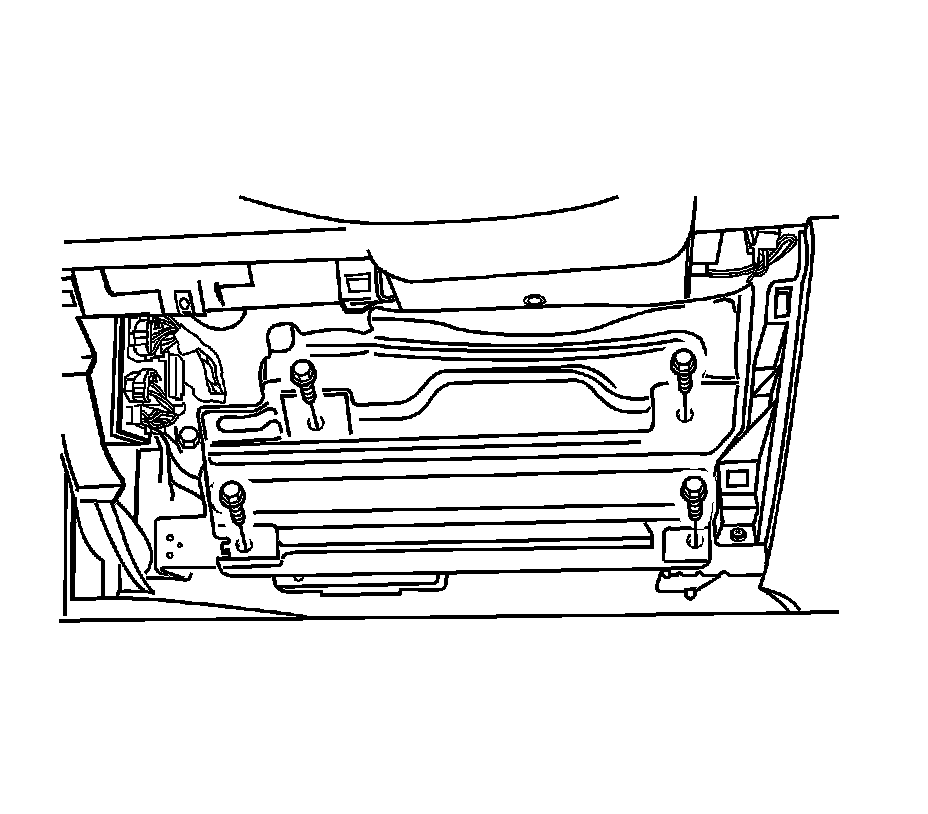

3. Remove the knee bolster. Refer to Knee Bolster Replacement Knee Bolster Replacement in Interior Trim.

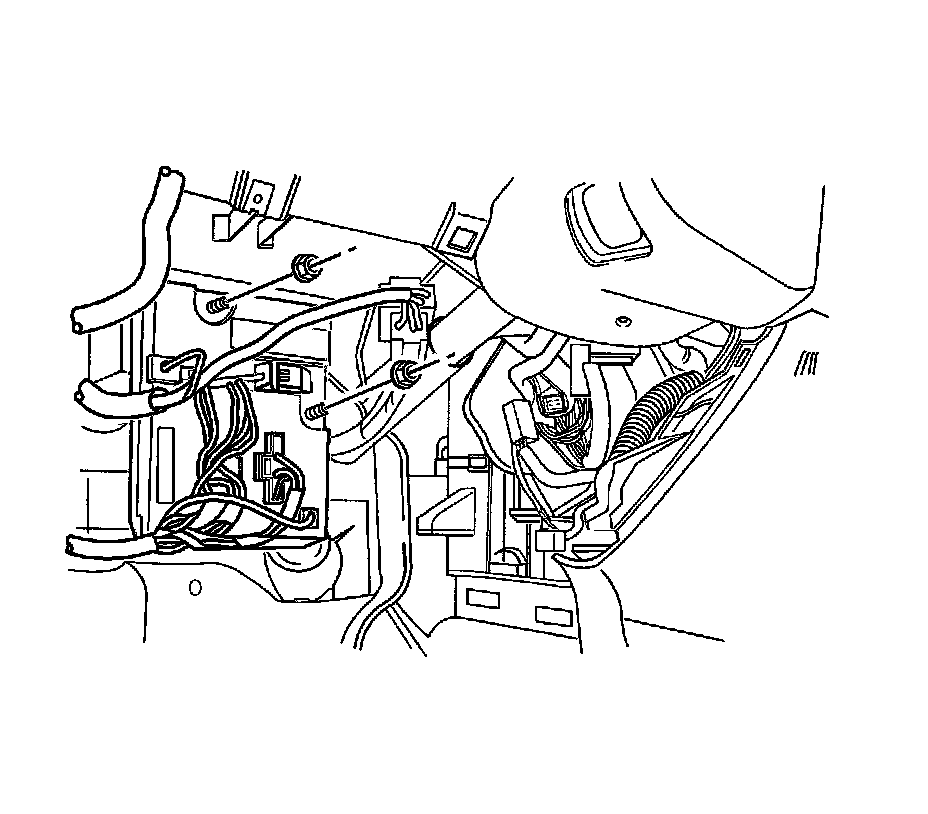

4. Disconnect the electrical connectors.

5. Remove the nuts securing the intelligent switching unit (ISU).

6. Remove the ISU.

Installation Procedure





1. Install the ISU with the nuts.

2. Connect the electrical connectors.





3. Install the knee bolster. Refer to Knee Bolster Replacement Knee Bolster Replacement in Interior Trim.

4. Install the instrument panel under cover.

5. Connect the negative battery connector.
