Transmission Position Sensor/Switch: Service and Repair

Park/Neutral Position Switch Replacement

Tools Required

DT 46473 (DW260-050) Park/Neutral Position Switch Installer

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

2. Remove the air filter housing (2.5L).

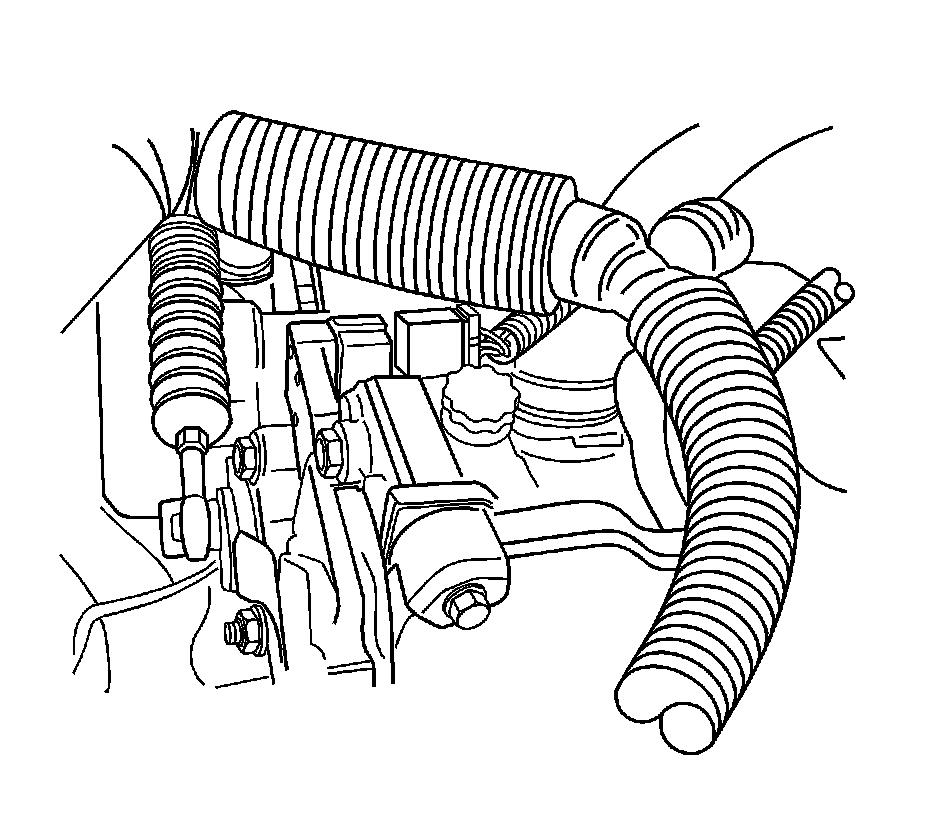

3. Disconnect the park/neutral position switch electrical connector.

4. Disconnect the shift control cable and the retaining clip





5. Remove the shift lever nut and the shift lever.





6. Remove the park/neutral start switch.

Installation Procedure





Notice:
Refer to Fastener Notice Fastener Notice.

1. Install the park/neutral start switch.

Tighten the bolts to 10 Nm (89 lb in).

Important:
When installing the park/neutral switch, use the special service tools. Position the shift lever in NEUTRAL.


2. Use the DT 46473 (1) to adjust the park/neutral switch.





3. Install the shift lever and the shift lever nut.

Tighten the nut to 10 Nm (89 lb in).





4. Connect the shift control cable and the retaining clip.

5. Connect the park/neutral position switch electrical connector.

6. Install the air filter housing.

7. Connect the negative battery cable.
