Powertrain Management: Locations

Engine Controls Component Views

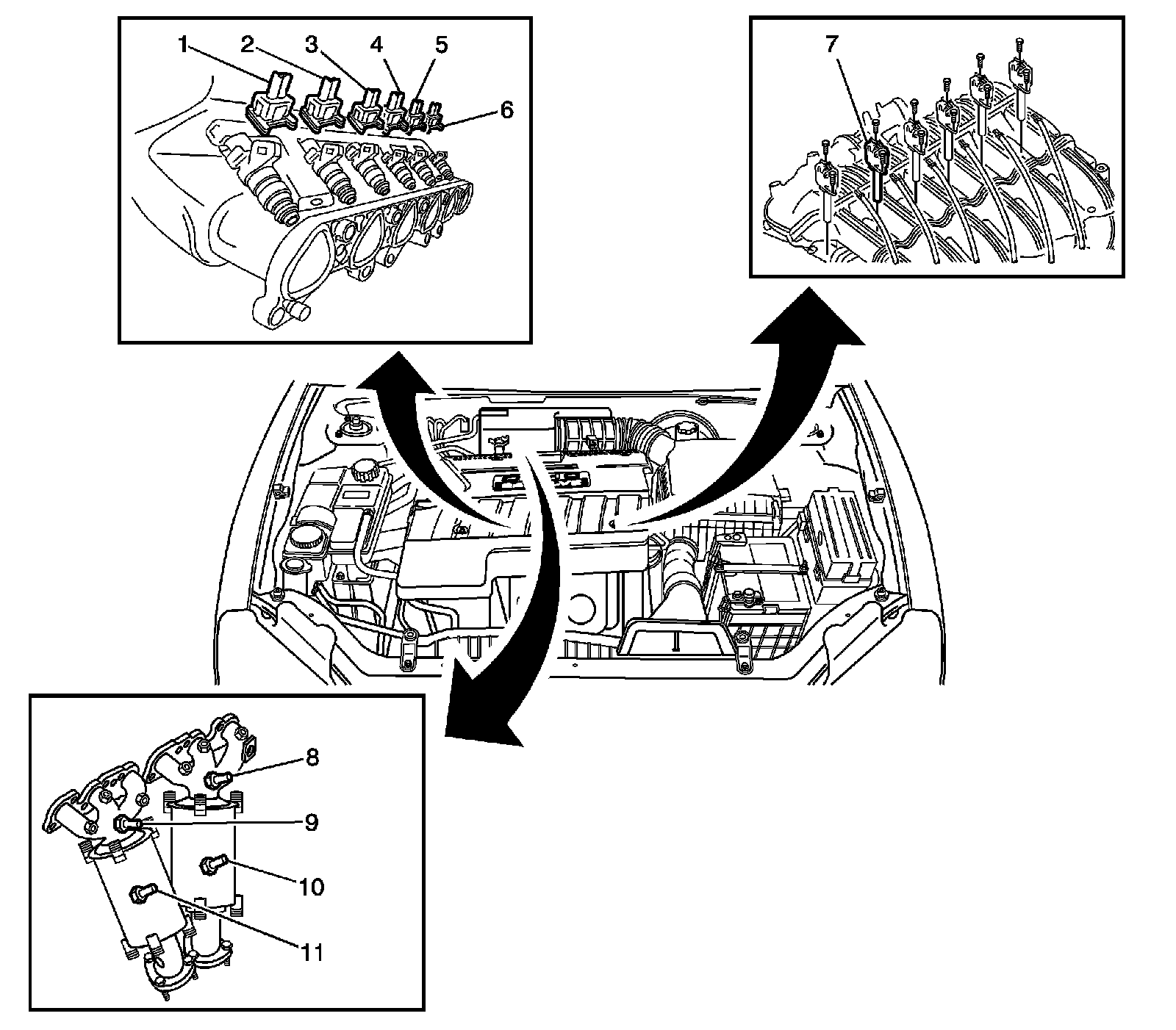

Ignition Coils, Injectors, and Heated Oxygen Sensor (HO2S) (Bank 1 and 2)





1 - Fuel Injector 1

2 - Fuel Injector 2

3 - Fuel Injector 3

4 - Fuel Injector 4

5 - Fuel Injector 5

6 - Fuel Injector 6

7 - Ignition Coil

8 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1

9 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1

10 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2

11 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

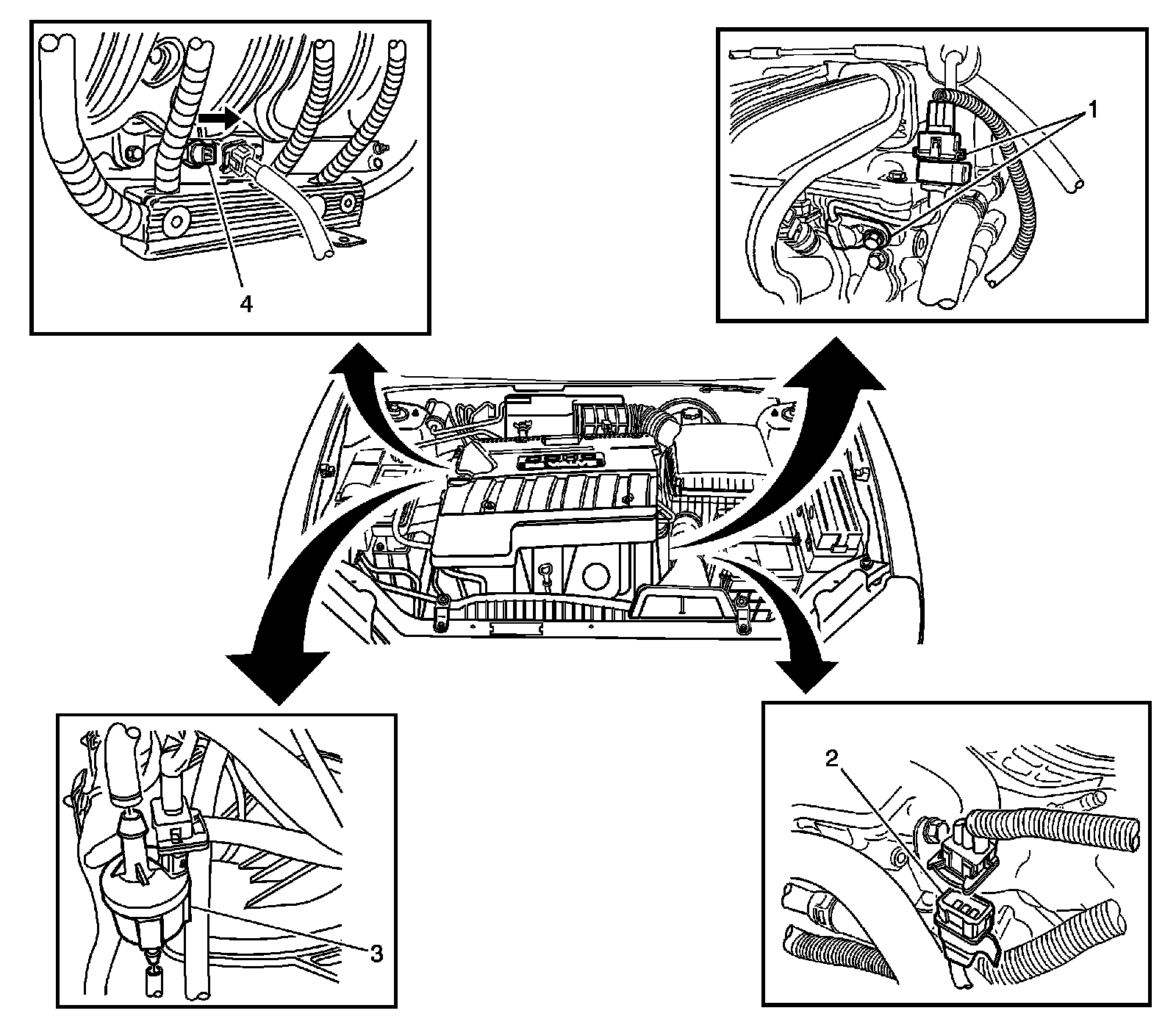

Camshaft Position (CMP), Crankshaft Position (CKP) and Engine Coolant Temperature (ECT) Sensors, EVAP Purge Solenoid Valve





1 - Camshaft Position (CMP) Sensor and Connector

2 - Crankshaft Position (CKP) Sensor

3 - EVAP Canister Purge Solenoid Valve

4 - Engine Coolant Temperature (ECT) Sensor 2.5L

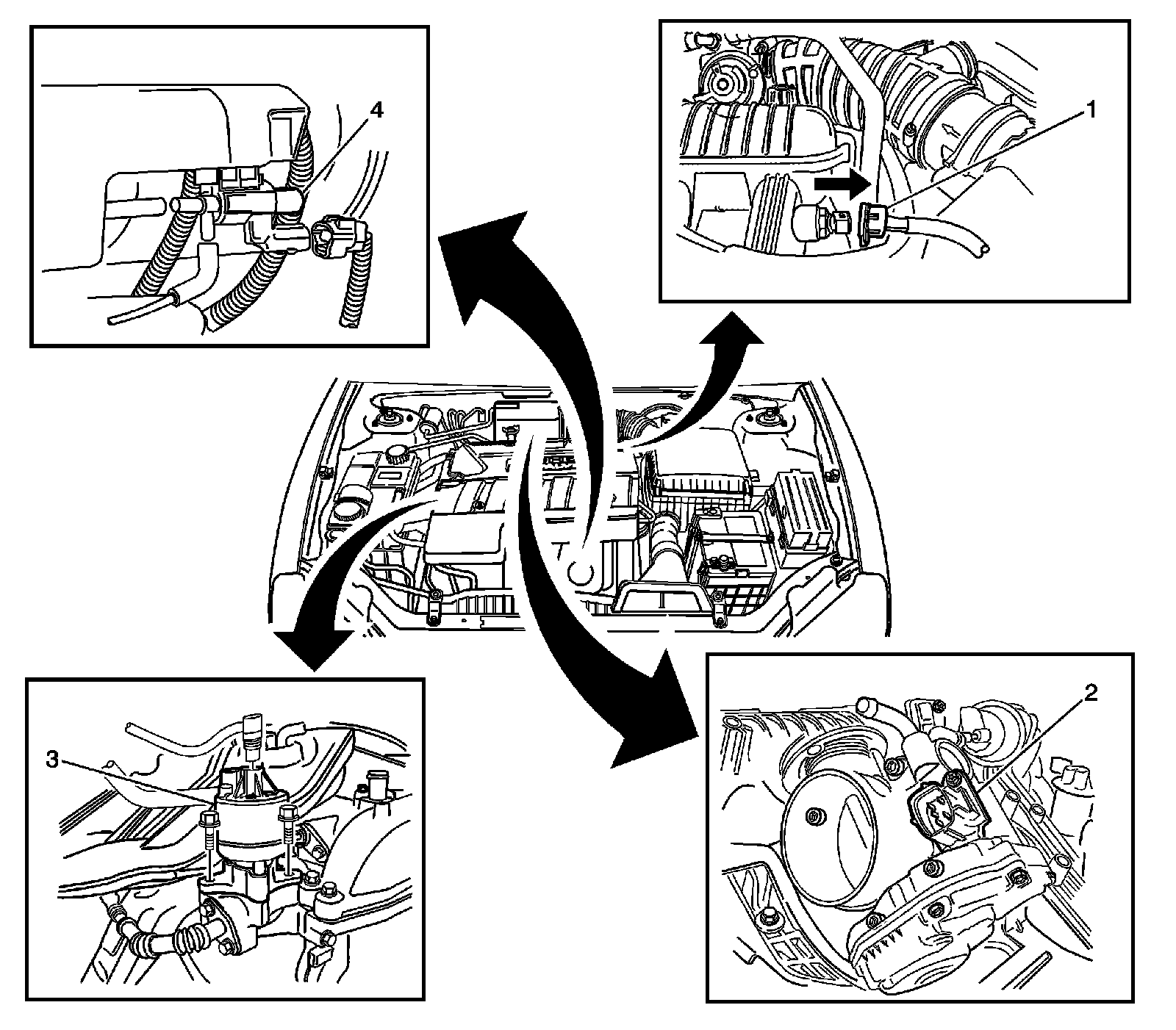

Intake Air Temperature (IAT) Sensor, Throttle Body (MTIA) , Exhaust Gas Recirculation (EGR) and Intake Manifold Tuning Valve (IMTV) Solenoid





1 - Intake Air Temperature (IAT) Sensor

2 - Main Throttle Idle Actuator (MTIA)

3 - Exhaust Gas Recirculation (EGR) Valve 2.5L

4 - Intake Manifold Tuning Valve (IMTV) Solenoid

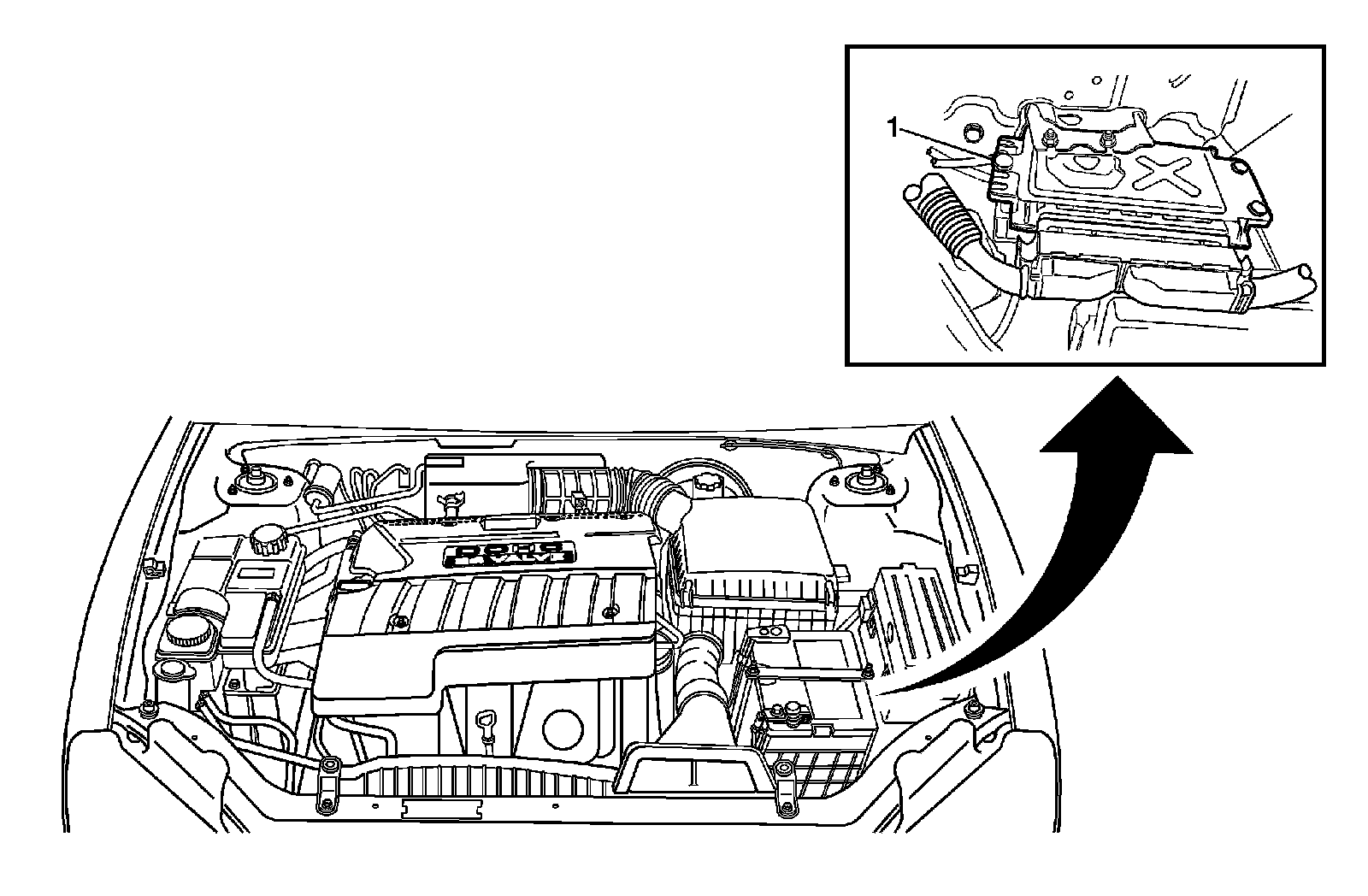

Sirius D6 Engine Control Module (ECM)





1 - Engine Control Module (ECM) 2.5L

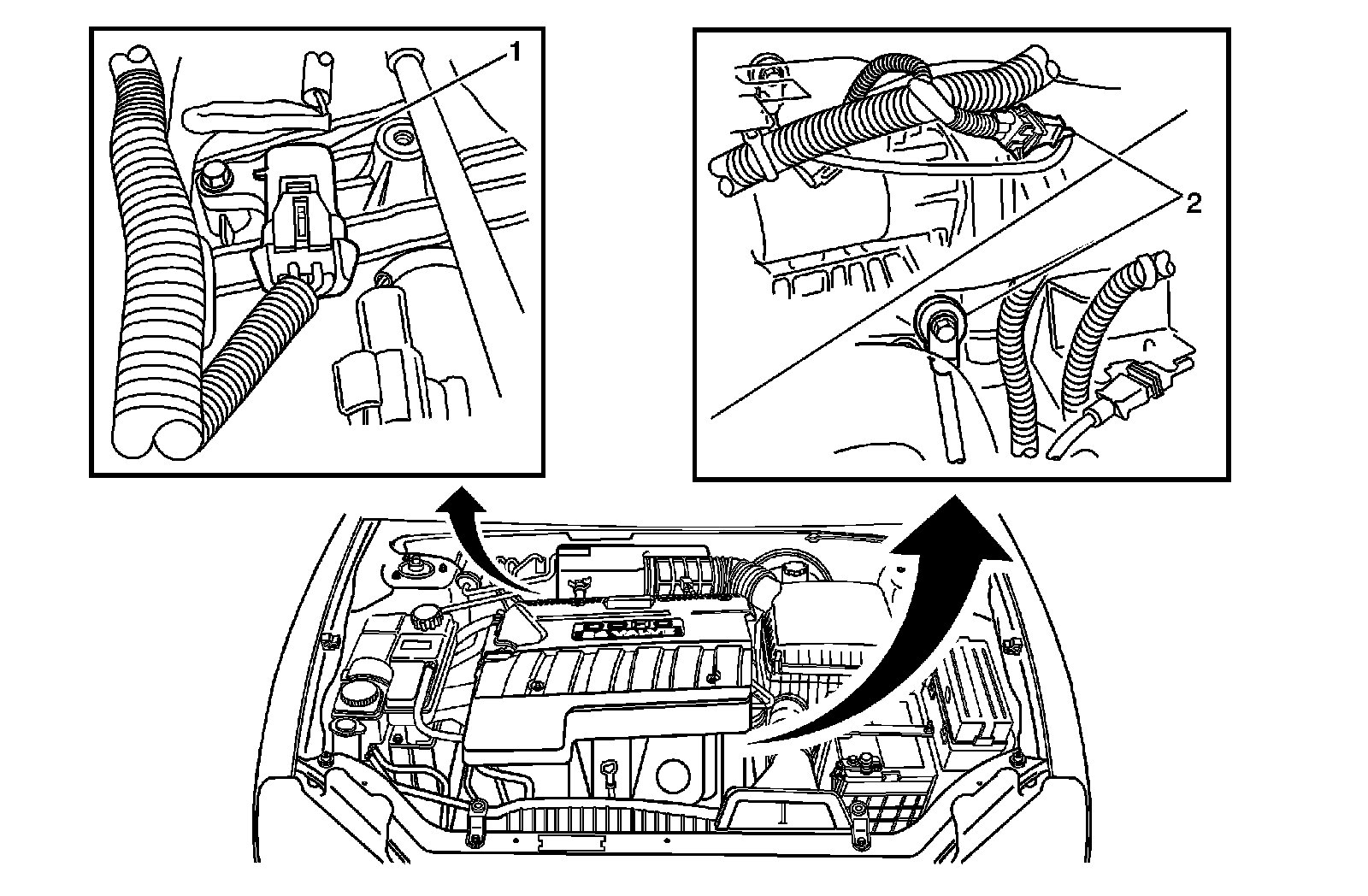

Knock Sensors (KS)/ Manifold Absoulte Pressure (MAP) Sensor





1 - Manifold Absoulte Pressure (MAP) Sensor

2 - Knock Sensor (KS) and Connector

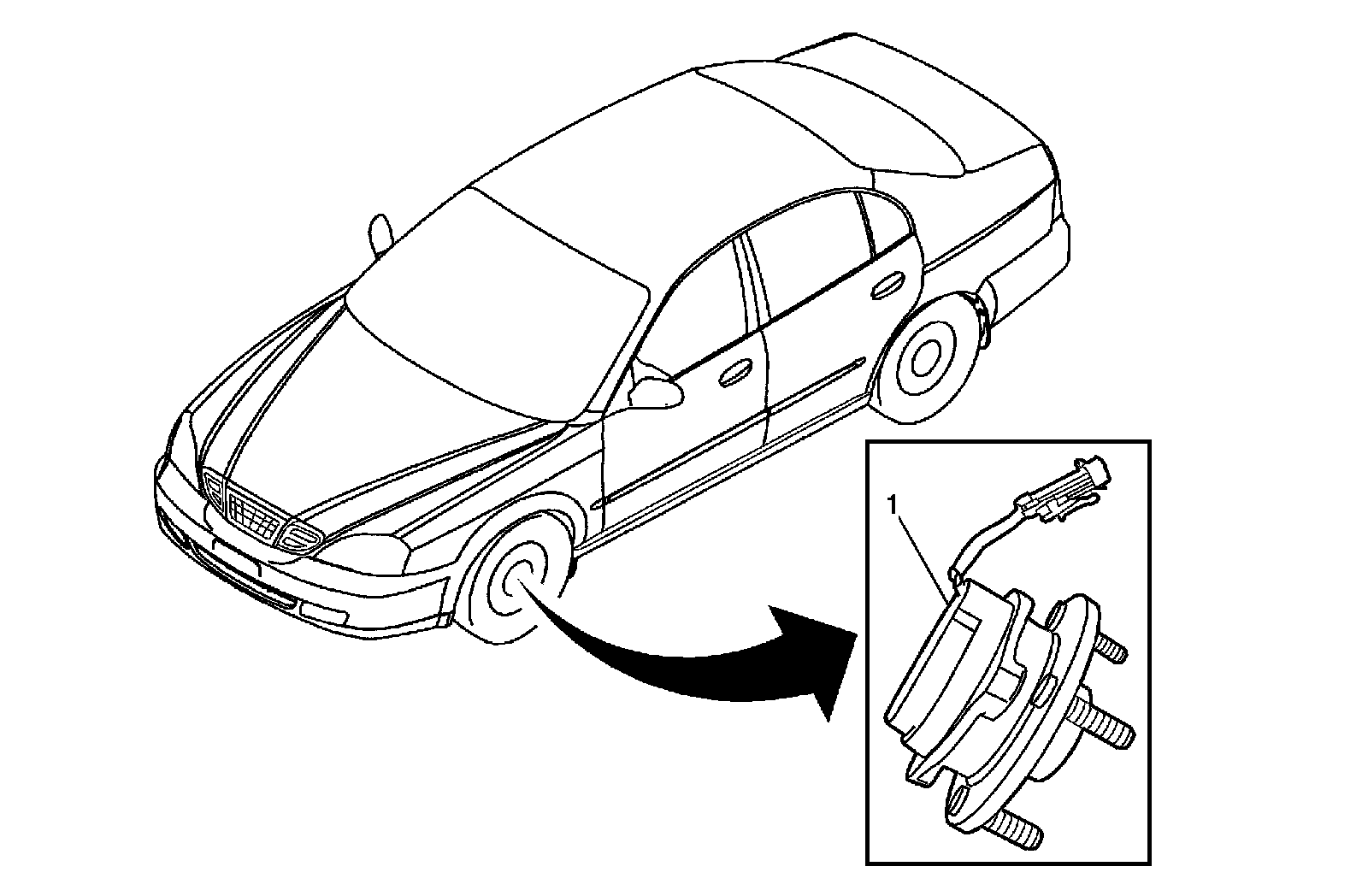

Rough Road Wheel Speed Sensor





1 - Rough Road Wheel Speed Sensor (W/O ABS)
