Control Module HVAC: Service and Repair

Blower Motor Control Module Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

2. Remove the glove box lower panel cover. Refer to Instrument Panel Storage Compartment Replacement Service and Repair in Instrument Panel, Gauges, and Console.

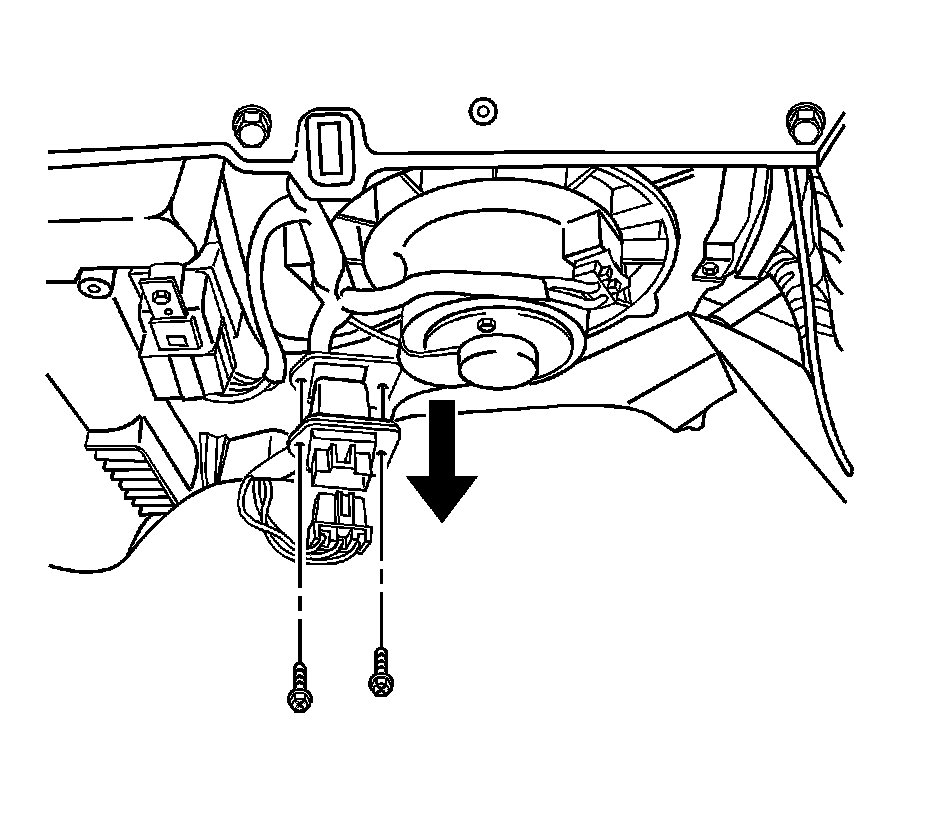

3. Disconnect the electrical connector at the resistor.

4. Remove the screws from the resistor.

5. Remove the resistor from the A/C module by gently pulling the resistor downward.

Installation Procedure





Notice:
Refer to Fastener Notice Fastener Notice in Cautions and Notices.

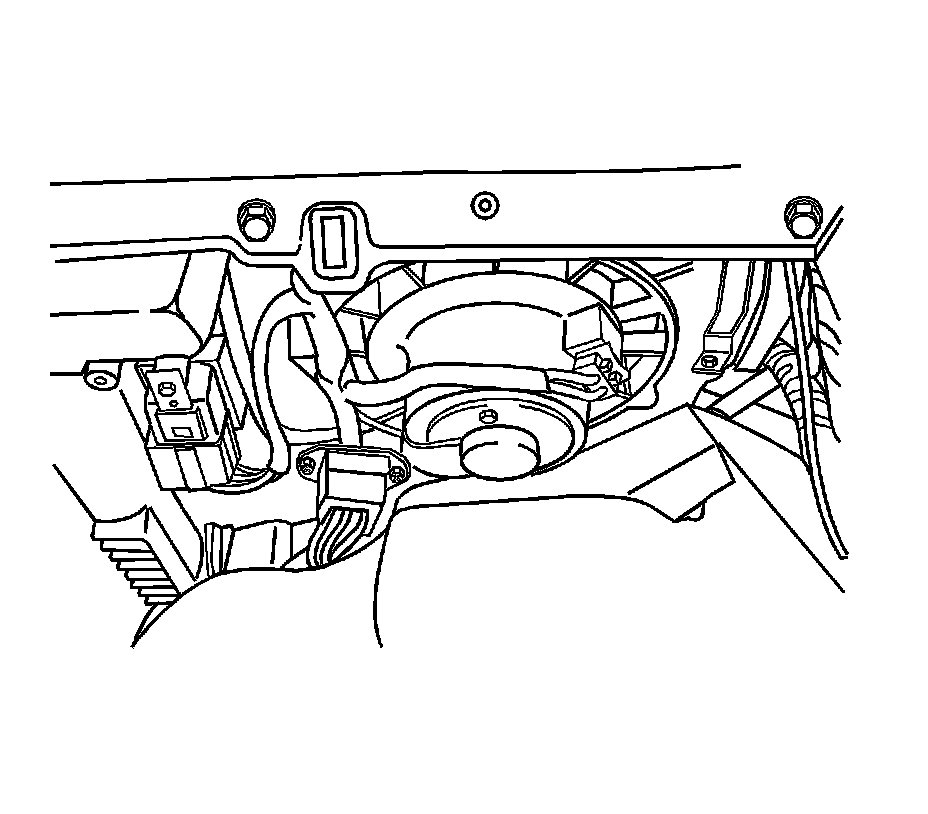

1. Install the new resistor into the heater/air distributor case assembly with the screws.

Tighten the blower motor resistor screws to 6 Nm (53 lb in).

2. Connect the electrical connector at the resistor.

3. Connect the negative battery cable.

4. Confirm the proper performance of the blower.

5. Install the glove box lower panel cover. Refer to Instrument Panel Storage Compartment Replacement Service and Repair in Instrument Panel, Gauges, and Console.
