Starting and Charging: Locations

Engine Electrical Component Views

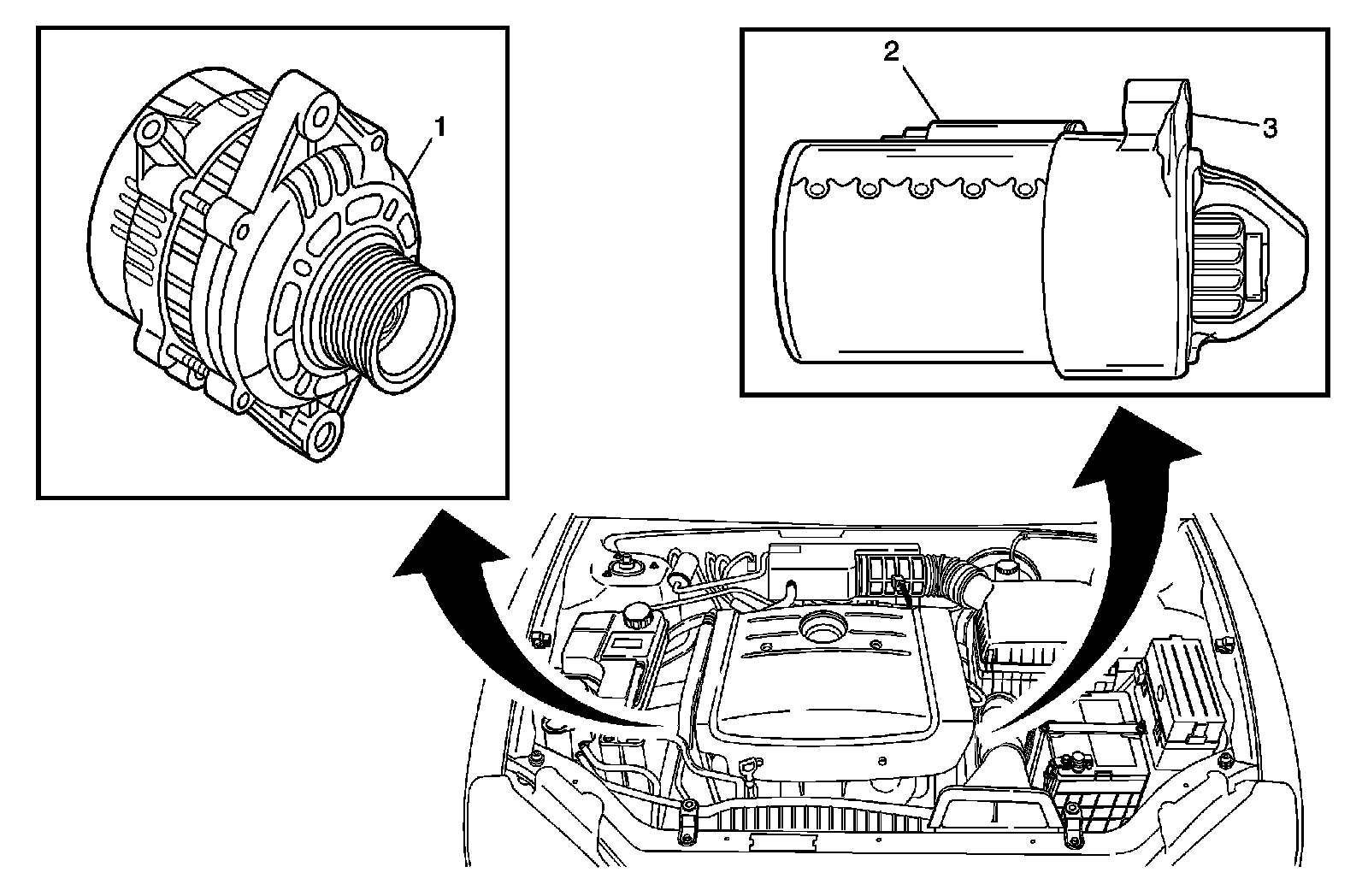

Generator and Starter





1 - Generator

2 - Starter Solenoid

3 - Starter

Starter Motor Assembly





1 - Starter Motor Assembly

2 - Starter Solenoid Assembly

3 - Starter Housing

4 - Shift Lever

5 - Armature Set

6 - Armature

7 - Pinion Gear Assembly

8 - Ring Set

9 - Field Frame Assembly

10 - Brush Holder Assembly

11 - Contact End Frame Assembly

12 - Starter Through-Bolts

Generator Assembly





1 - Generator Assembly

2 - Generator Drive End Nut

3 - Generator Pulley

4 - Generator Collar

5 - Generator Front Bracket

6 - Front Bearing

7 - Generator Stator Assembly

8 - Fan

9 - Generator Rotor Assembly

10 - Generator Rear Bracket

11 - Rectifier Assembly

12 - Cover

13 - Voltage Regulator/Brush Holder Assembly
