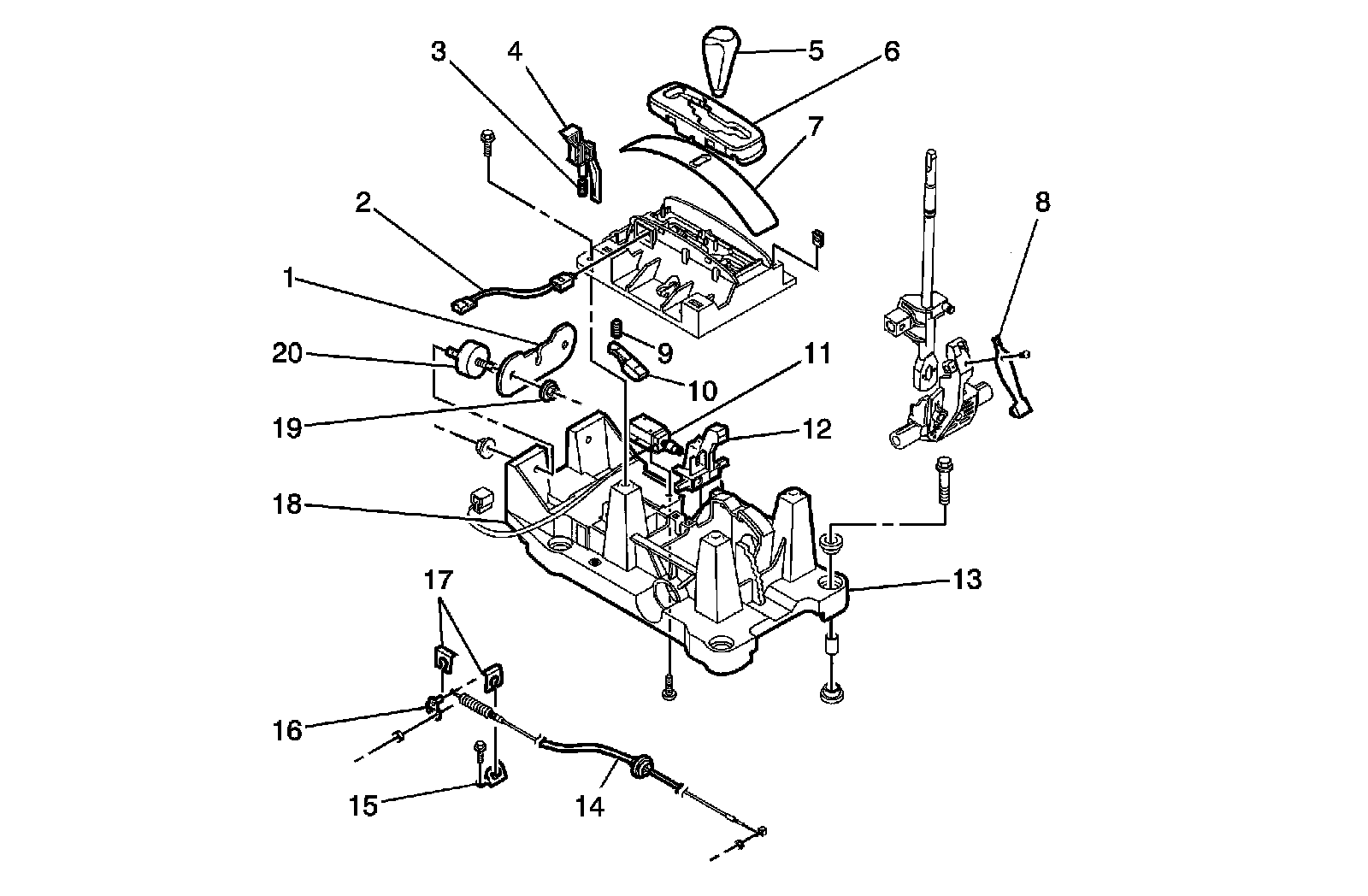

Shift Select Control

Shift Select Control

Shift Select Control





1 - Fastener Plate

2 - Park Position Switch

3 - Spring

4 - BTSI Button

5 - Gear Shift Knob

6 - Cover

7 - Step Gate Slider

8 - Positioning Spring

9 - Spring

10 - Safety Stopper

11 - A/T Shift Lock Solenoid

12 - A/T Shift Lock Solenoid Lever

13 - Base Plate

14 - Select Cable

15 - Cable Fastener

16 - T/A Lever

17 - E-Ring

18 - Base Plate Front

19 - Nut

20 - Selector Control Isolator
