Window Regulator: Service and Repair

Door Window Regulator Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

2. Remove the door glass. Refer to Front Side Door Window Replacement Front Side Door Window Replacement.

3. Disconnect the electrical connector.

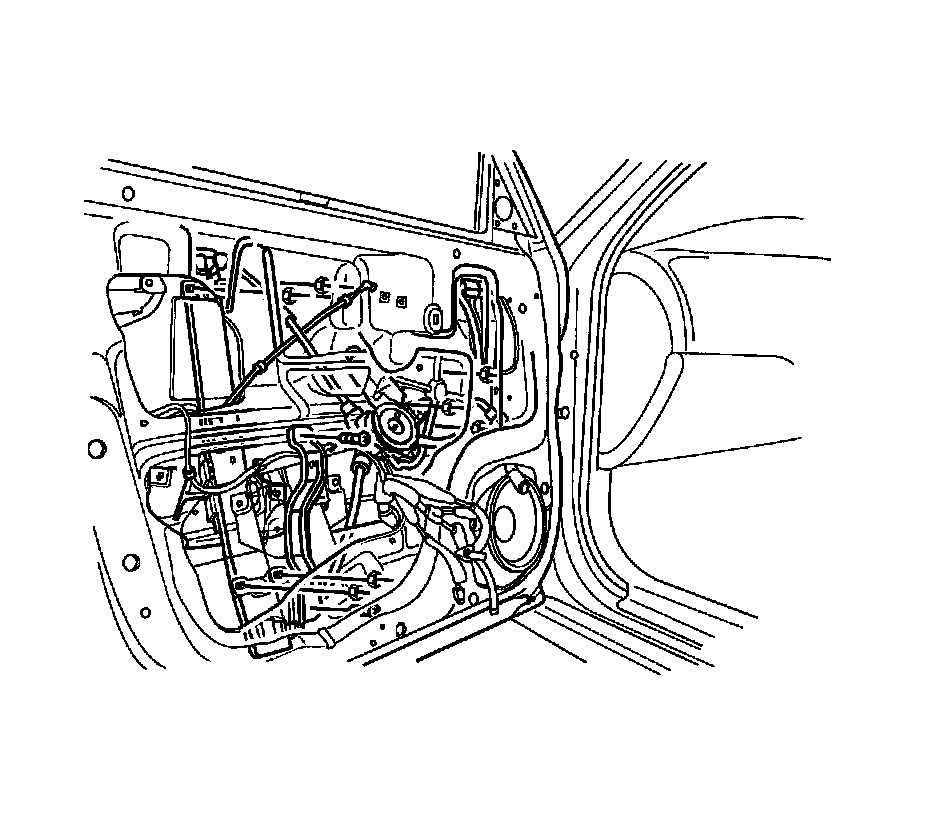

4. Remove the nuts and the window regulator.

Installation Procedure





Notice:
Refer to Fastener Notice Fastener Notice.

1. Install the window regulator with the nuts.

Tighten the window regulator nuts to 10 Nm (89 lb in).

2. Connect the electrical connector.

3. Install the door glass. Refer to Front Side Door Window Replacement Front Side Door Window Replacement.

4. Connect the negative battery cable.
