Splash Guard: Service and Repair

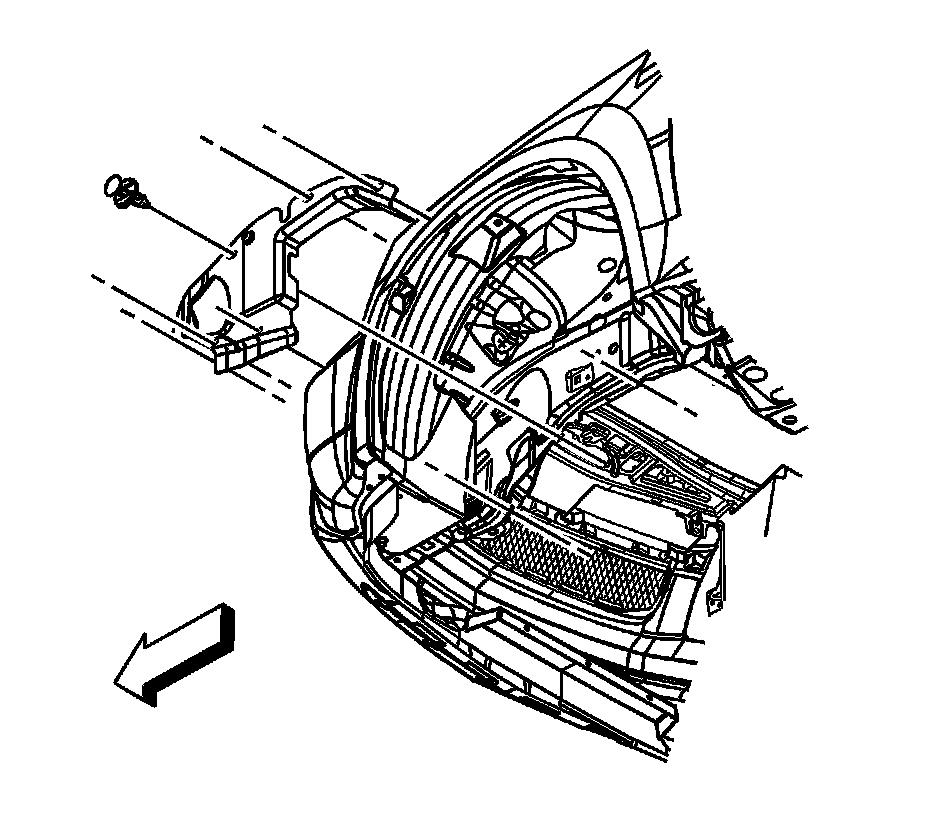

Splash Shield Replacement - EngineRemoval Procedure 1.
Remove the splash shield to structure push-in retainers.
2.
Slide the splash shield forward to remove.
Installation Procedure 1.
Position the splash shield to the vehicle by sliding rearward and aligning holes.
2.
Install the splash shield to structure push-in retainers.
