Seat Temperature Switch
Seat Temperature Switch

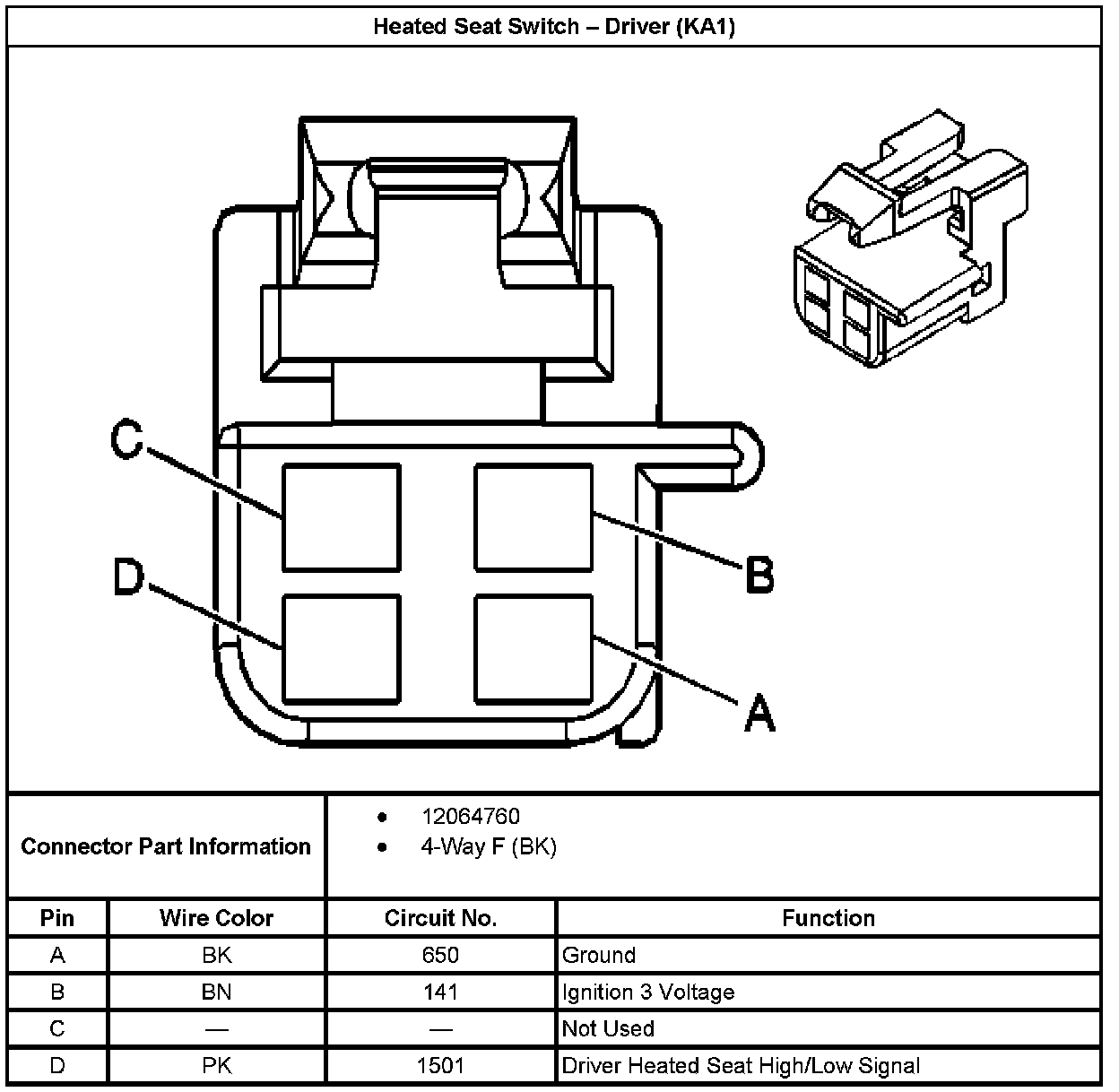

Heated Seat Switch - Driver (With RPO Code KA1):

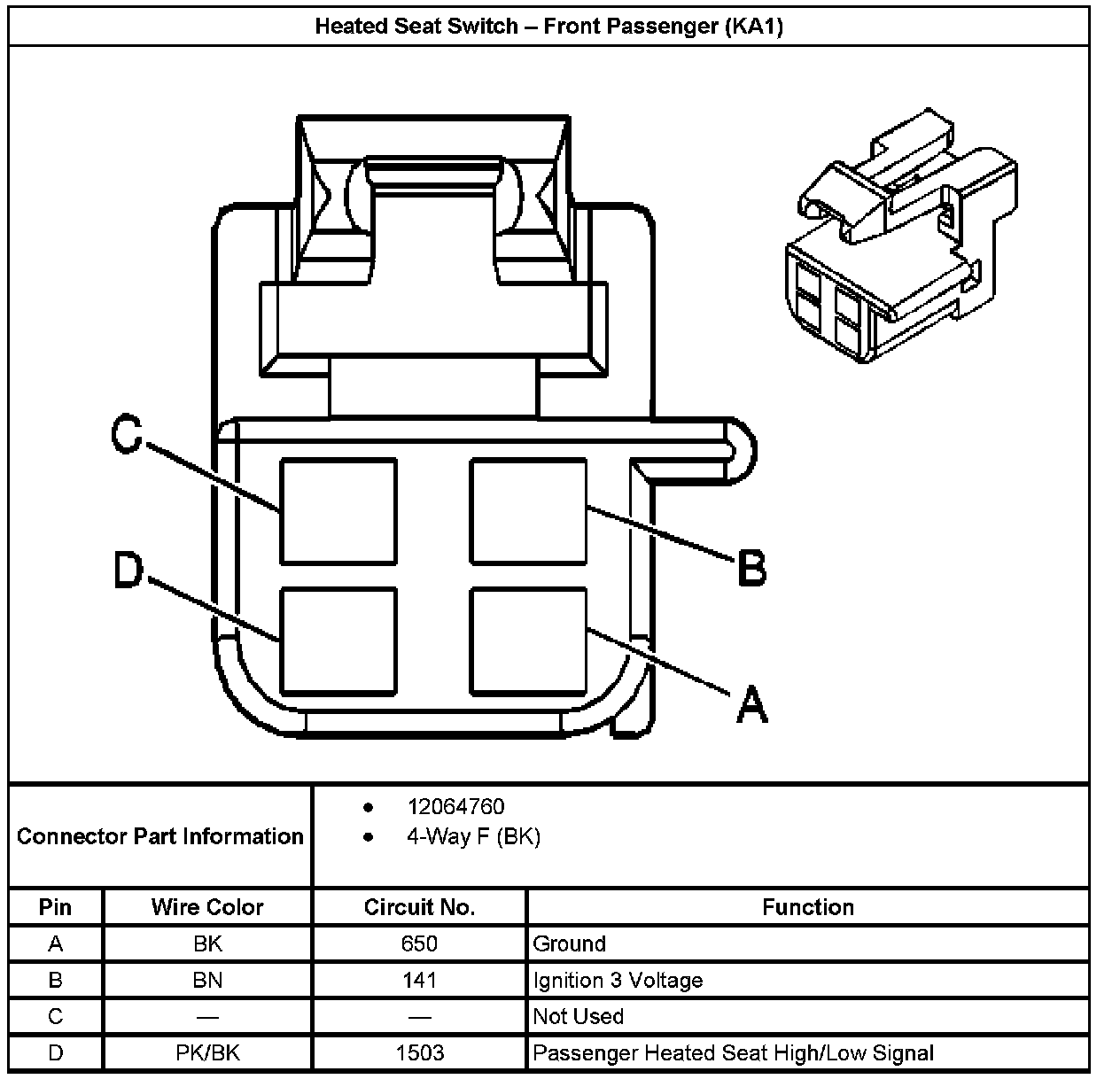

Heated Seat Switch - Front Passenger (With RPO Code KA1):
