Service Limits & General Specifications

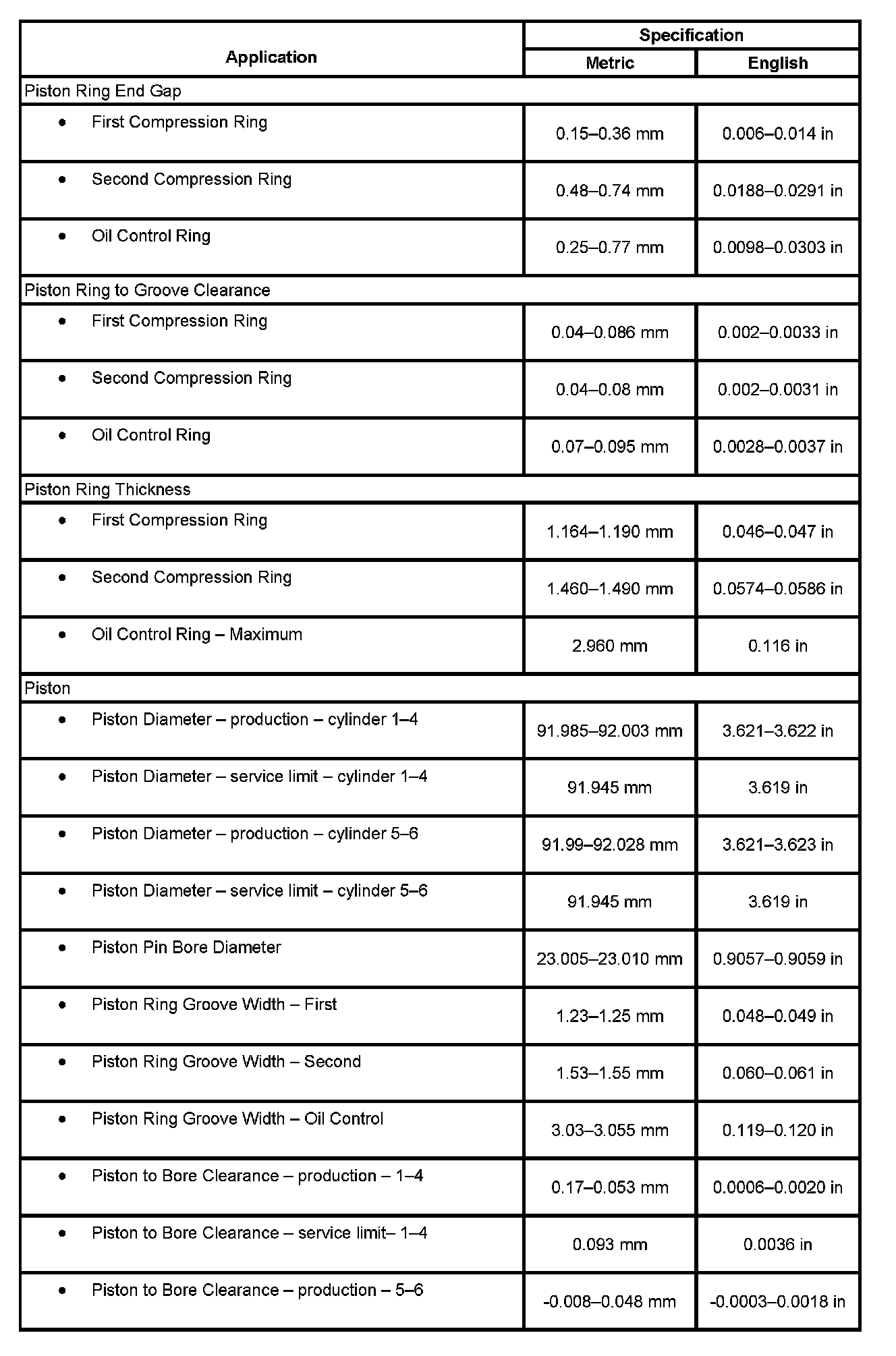

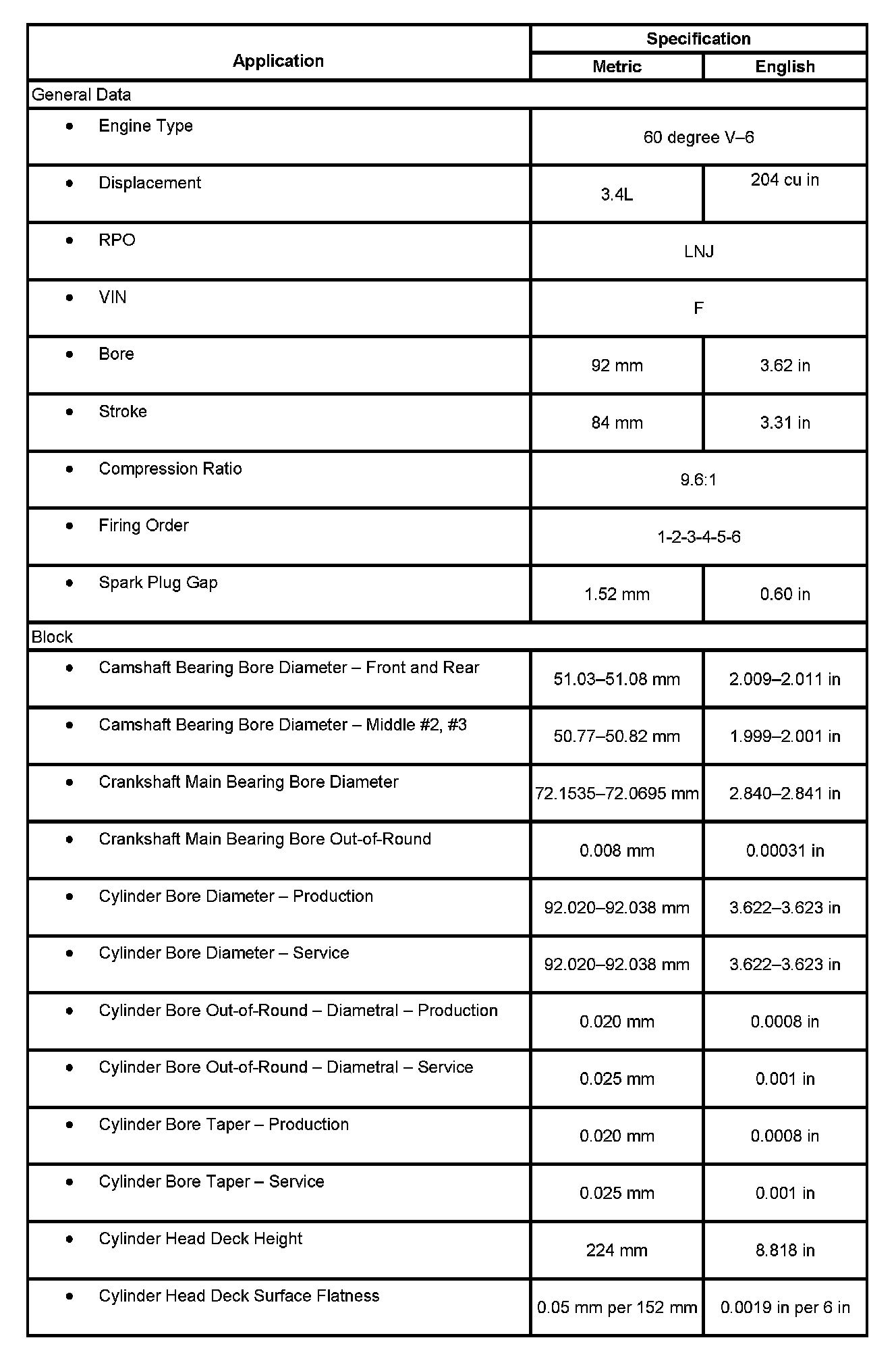

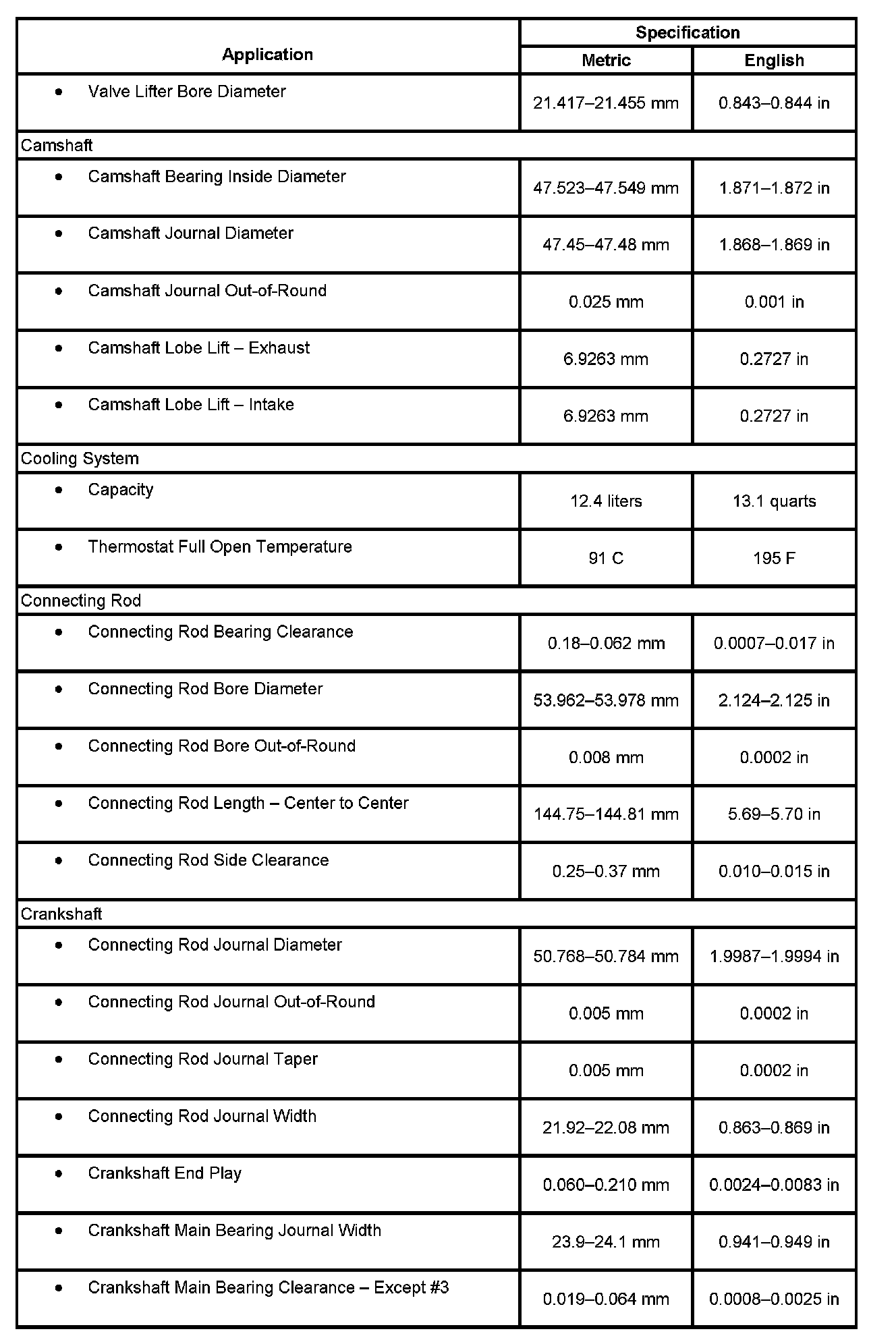

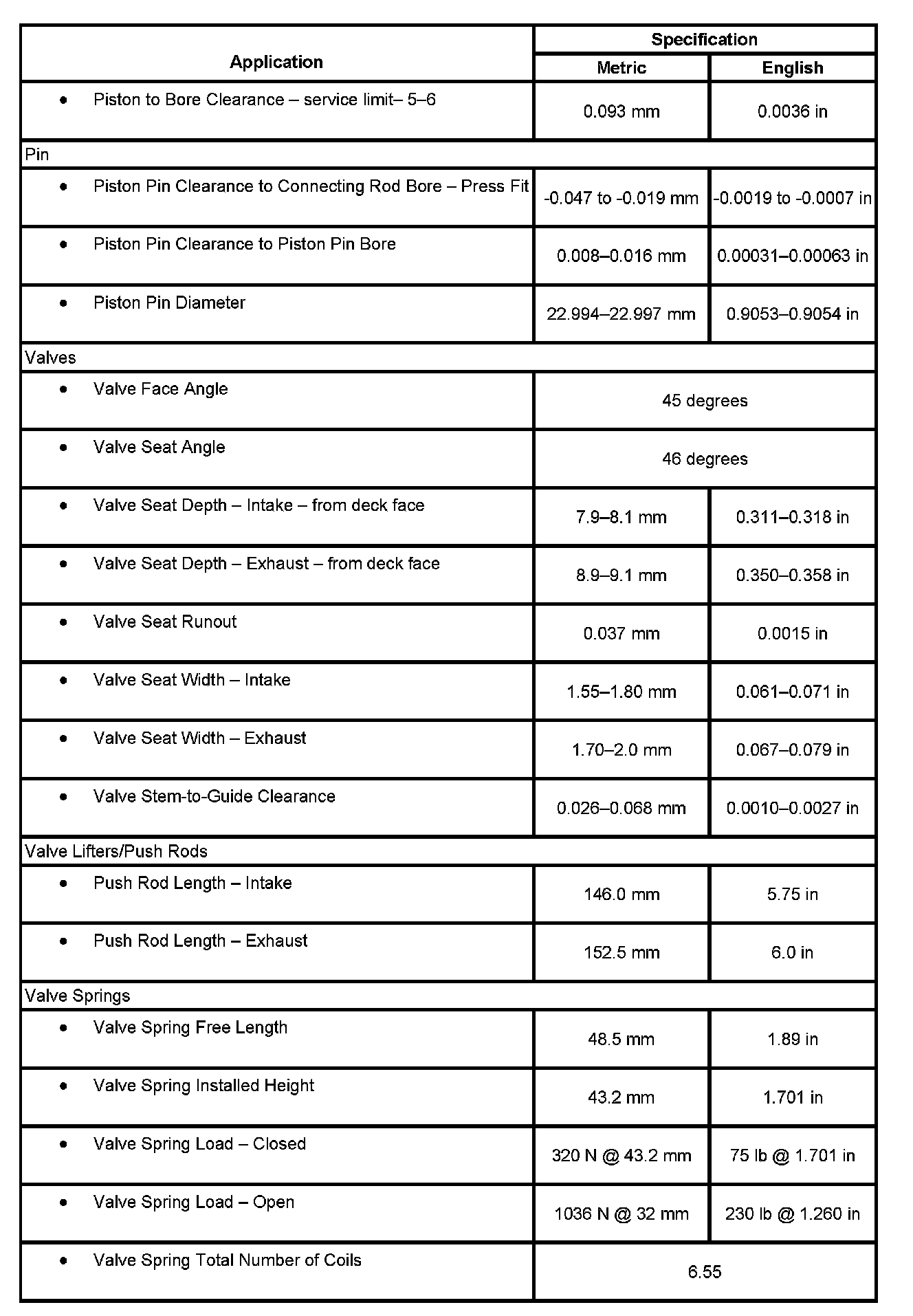

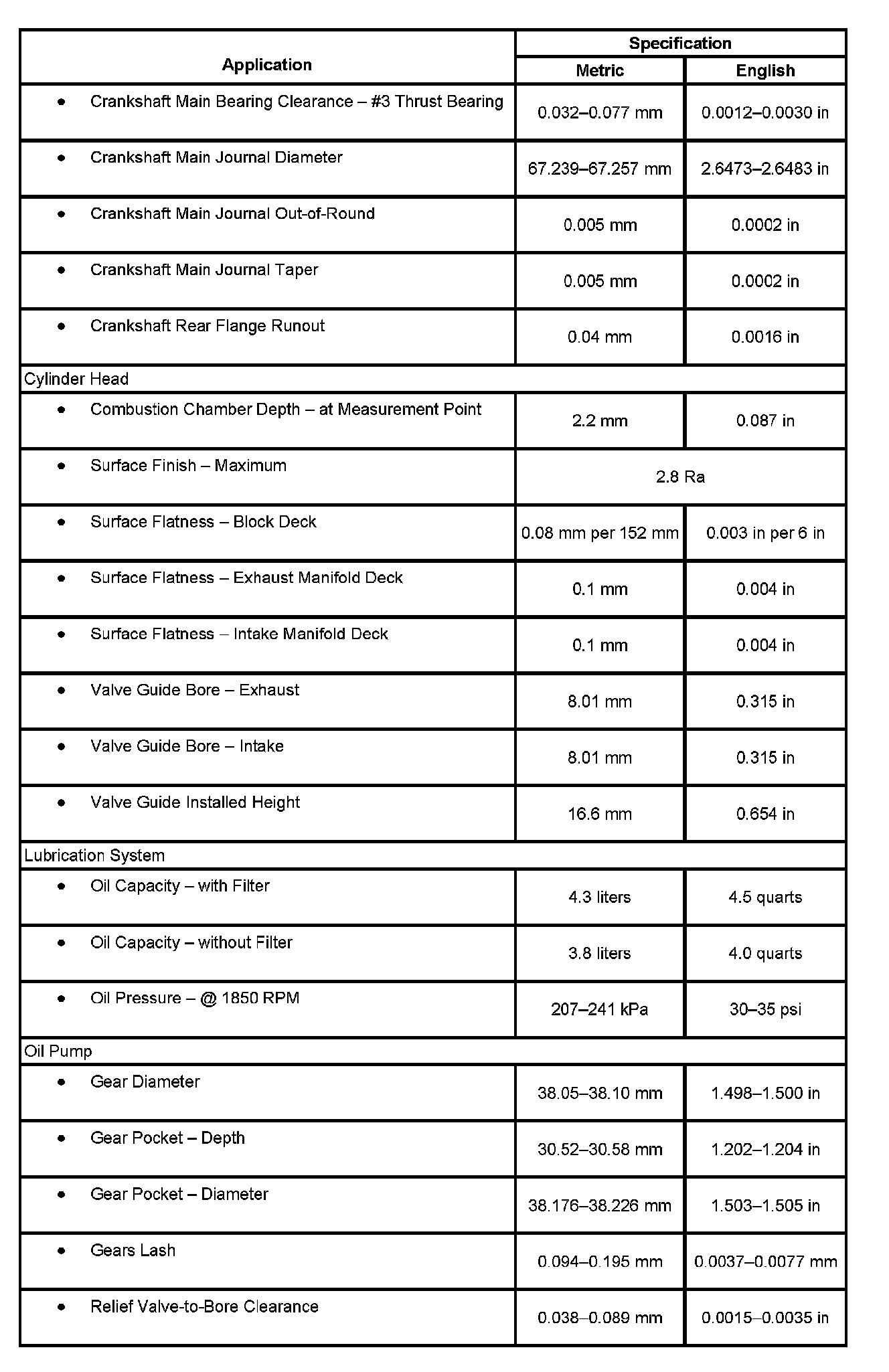

Engine Mechanical Specifications:



Engine Mechanical Specifications:



Engine Mechanical Specifications:



Engine Mechanical Specifications:



Engine Mechanical Specifications:
