Tightening Torques & Sequences

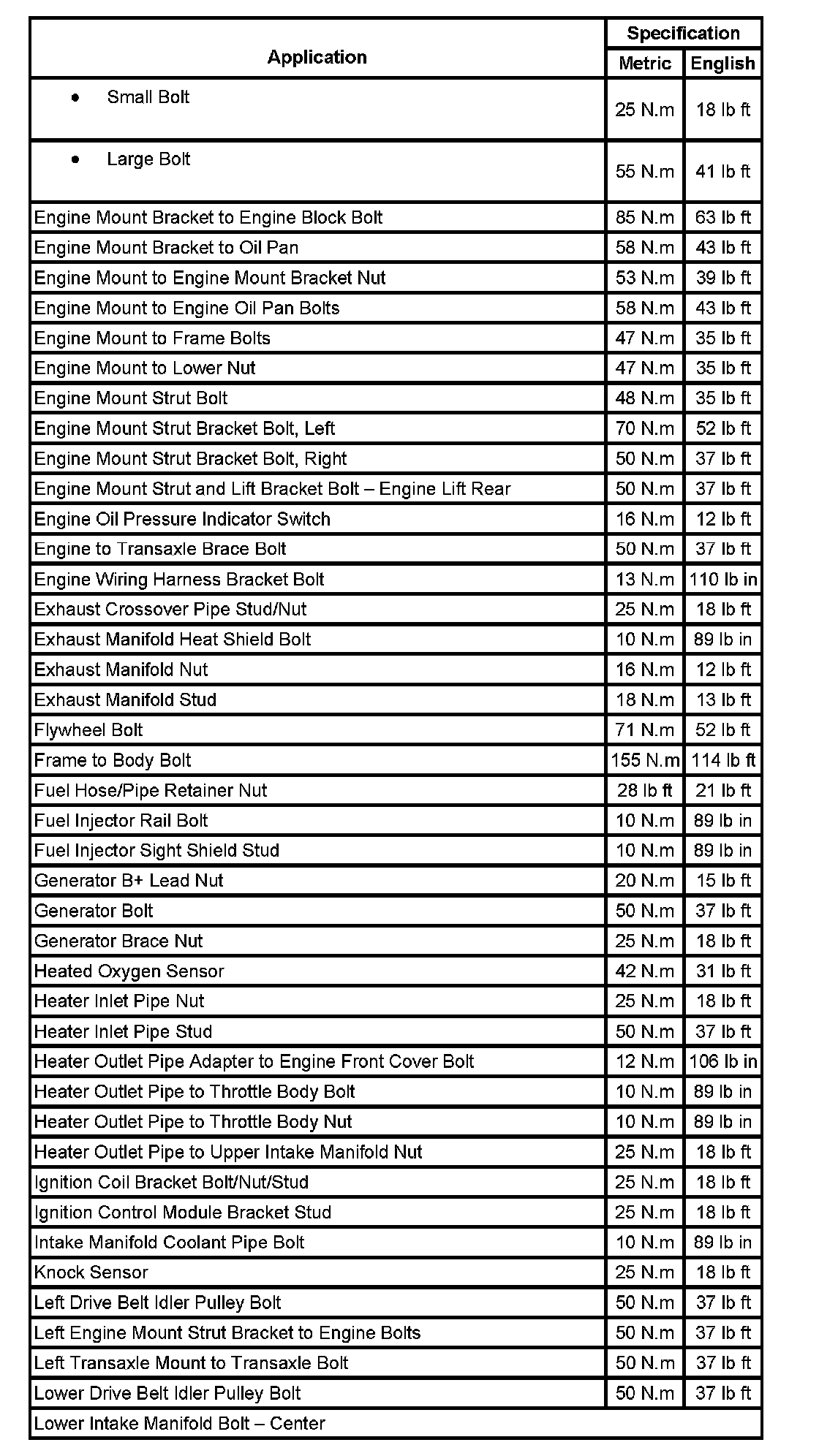

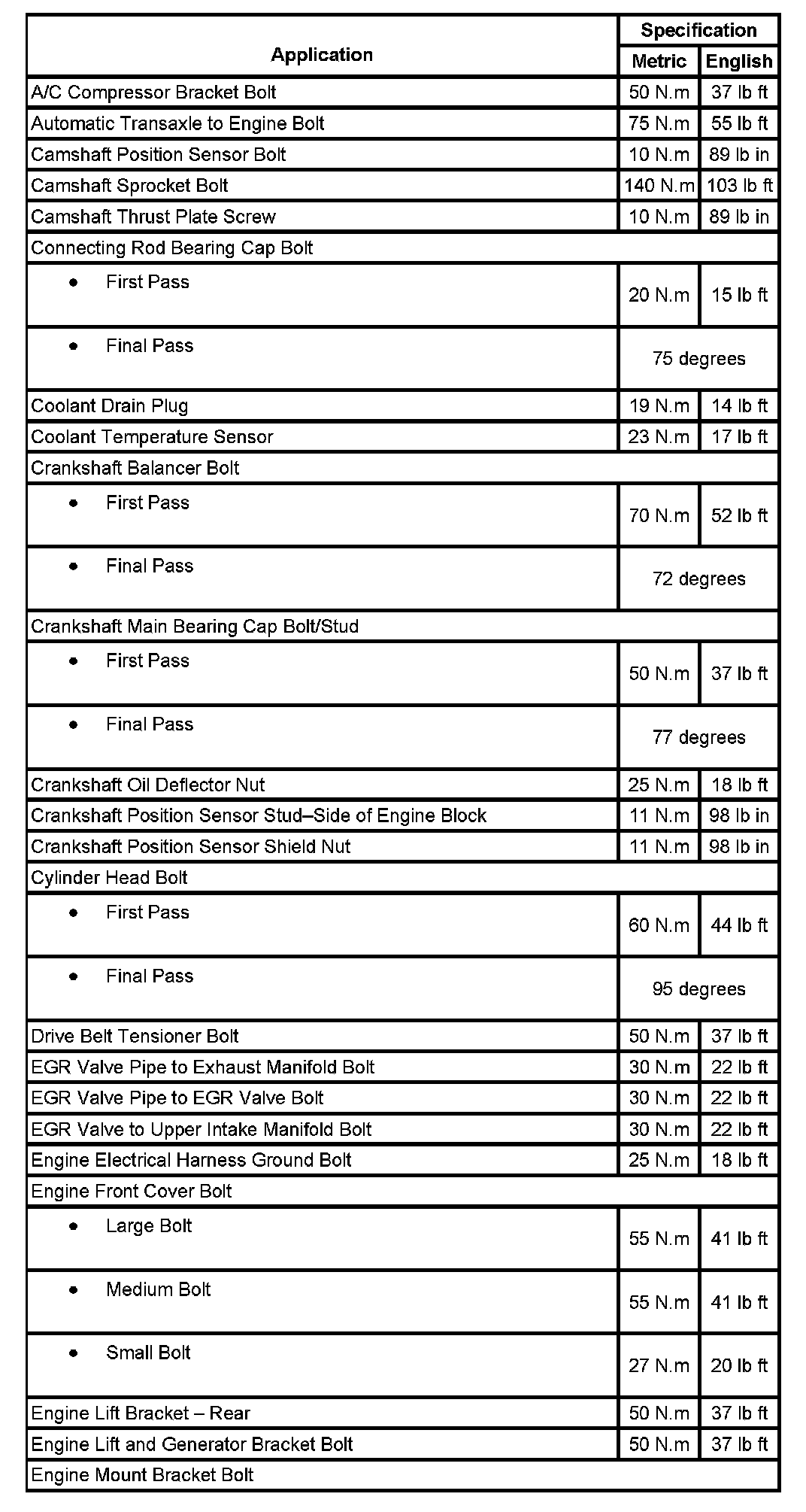

Fastener Tightening Specifications:



Fastener Tightening Specifications:



Fastener Tightening Specifications:
