Turn Signal Relay
Trailer Stop/Turn Relay - Left (With RPO Code UY7):

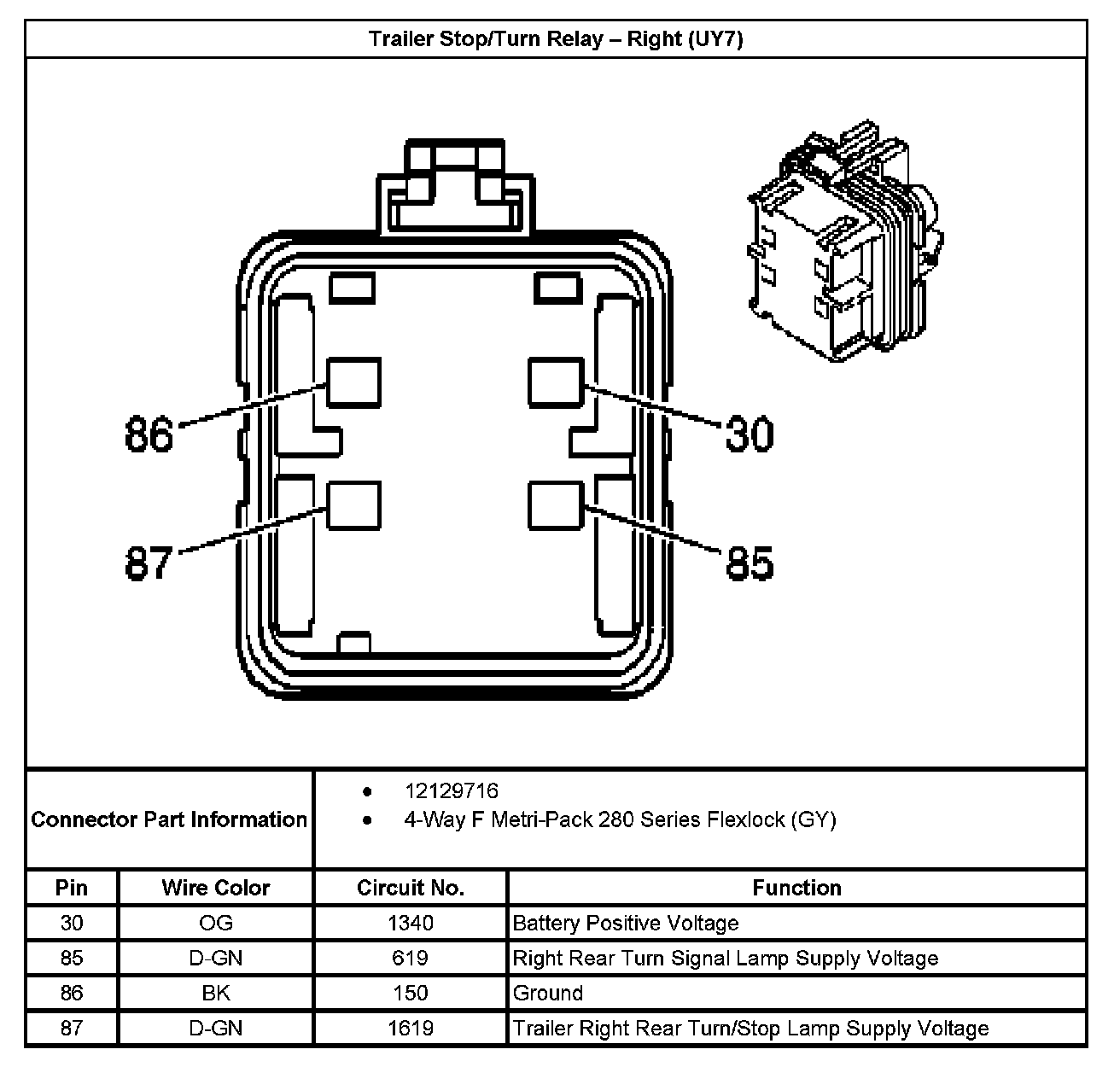

Trailer Stop/Turn Relay - Right (With RPO Code UY7):
