C175
Automatic Transmission Electronic Component Views
Electronic Components
Electronic Components:
36 - Vehicle Speed Sensor (VSS) - Model Dependent
66 - Torque Converter Clutch (TCC) Solenoid Valve
69 - Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch
108 - Secondary Fluid Pump Assembly - M33 Models Only
367a - 1-2 Shift Solenoid (SS) Valve
367b - 2-3 Shift Solenoid (SS) Valve
377 - Pressure Control (PC) Solenoid Valve
394 - 3-2 Shift Solenoid (SS) Valve Assembly
396 - Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve
Park Neutral Position (PNP) Switch
Park Neutral Position (PNP) Switch:
1 - Automatic Transmission 4L60-E/4L65�E
2 - Park/Neutral Position (PNP) Switch

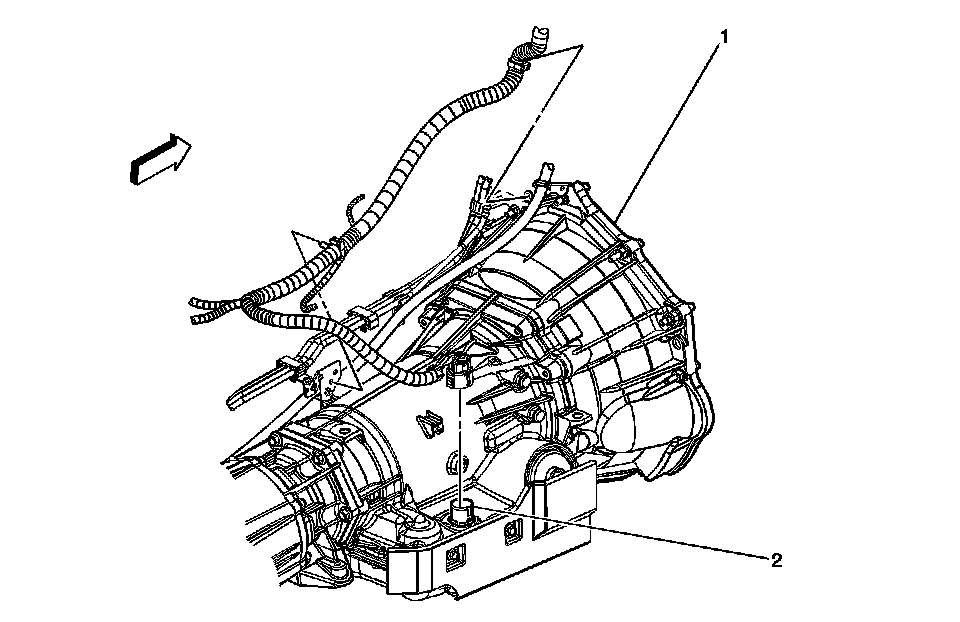

C175
C175:
1 - Automatic Transmission
2 - C175

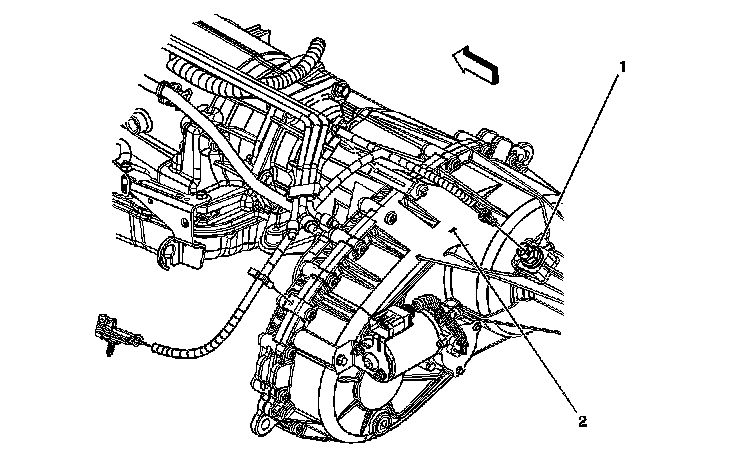

Vehicle Speed Sensor (VSS)
Vehicle Speed Sensor (VSS):
1 - VSS Sensor
2 - Transfer Case

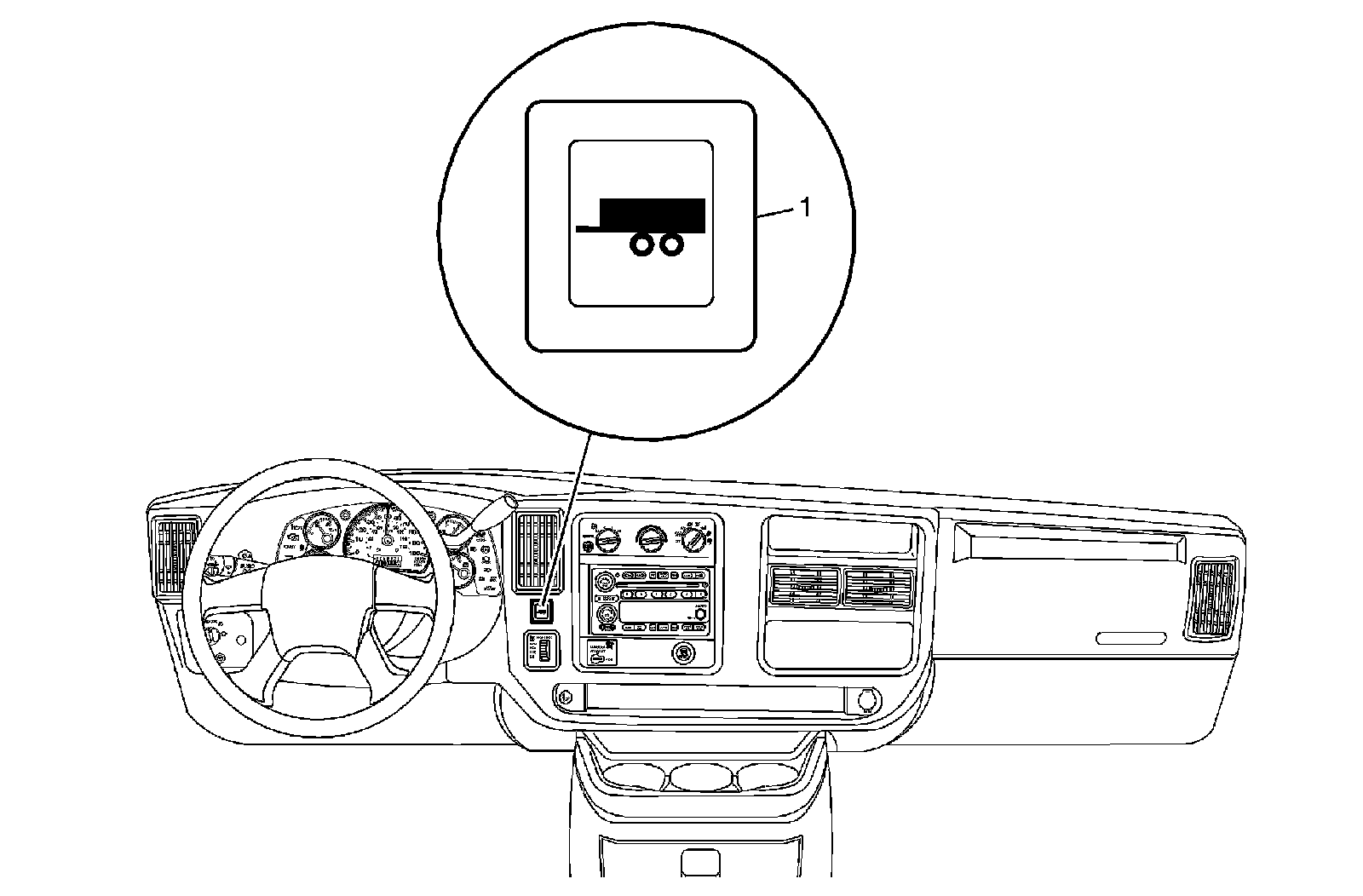

Tow/Haul Switch Location
Tow/Haul Switch Location:
1 - Tow/Haul Switch
4L60-E/4L65-E

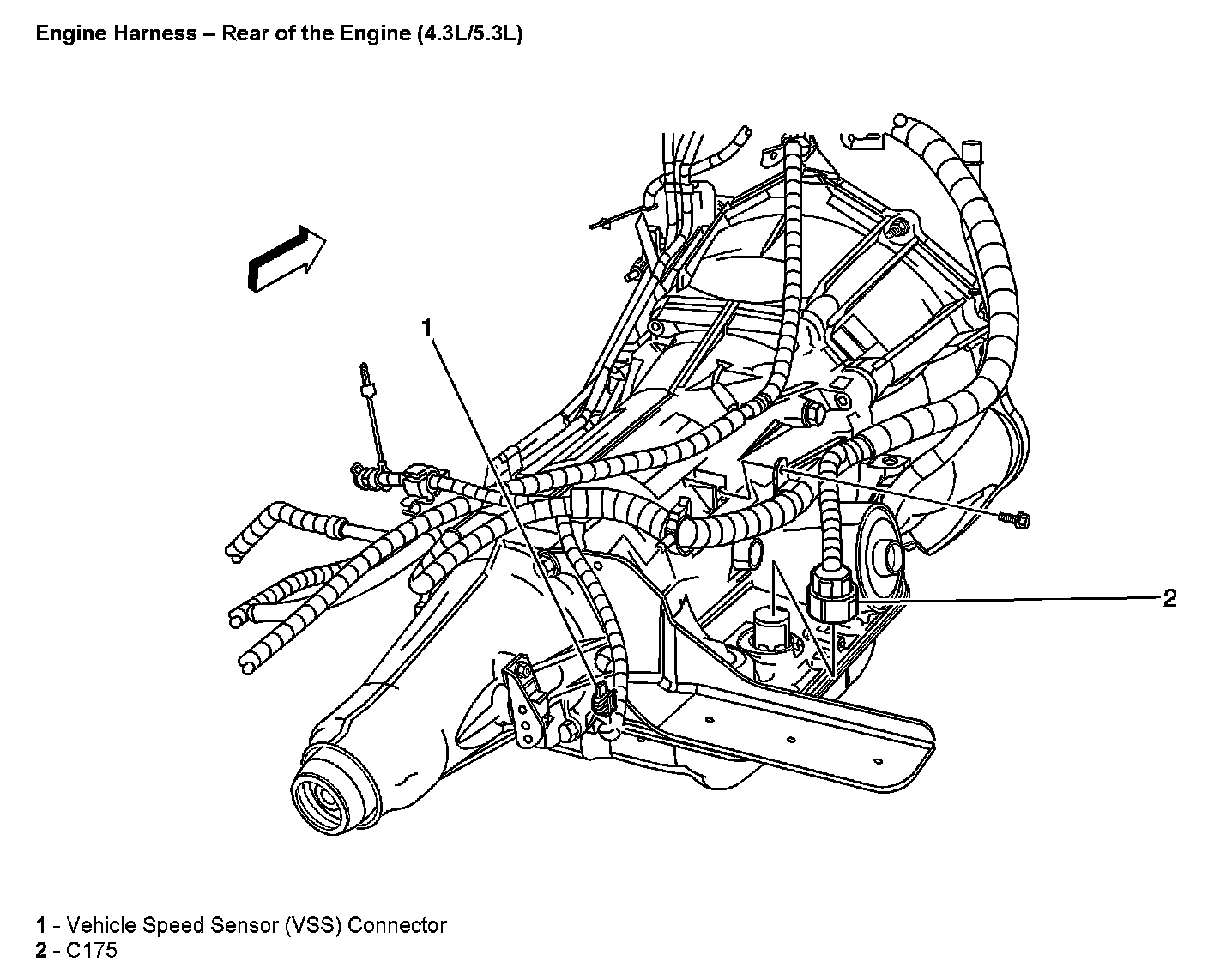

Engine Harness - Rear Of The Engine:
Engine Harness - Rear Of The Engine:
