Engine Controls Diagram 2

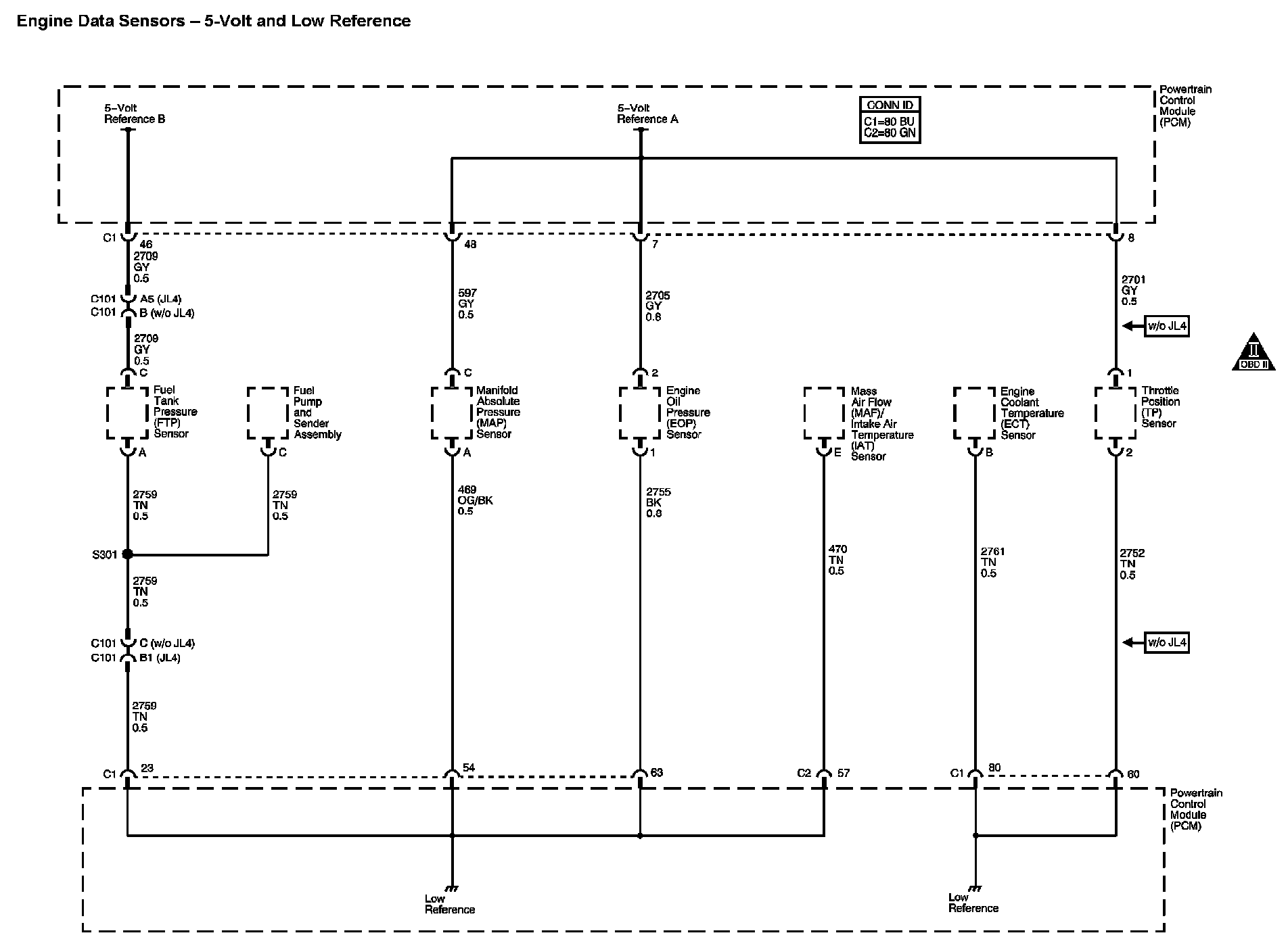

Engine Controls Diagram 2:

Next Diagram Engine Controls Diagram 3

Previous Diagram Engine Controls Diagram 1

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
