39. Input Sun Gear Bushings Replacement

Input Sun Gear Bushings Replacement

Removal Procedure

^ Tools Required
- J 8092 Universal Driver Handle - 3/4 in - 10
- J 34196-B Transmission Bushing Service Set

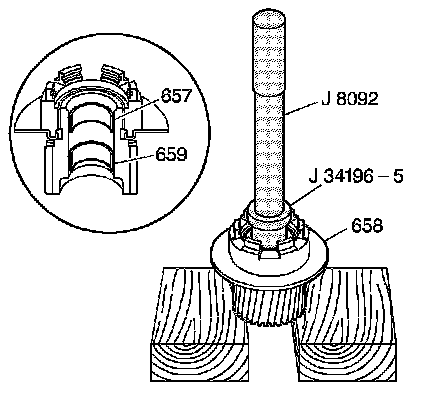

Using J 34196-5 which is part of kit J 34196-B with J 8092, remove the input sun gear front bushing (657) and rear bushing (659).

Installation Procedure

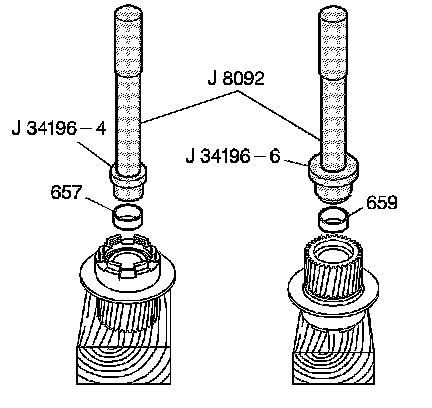

1. Using J 34196-4 which is part of kit J 34196-B with J 8092, install the input sun gear front bushing (657).
2. Using J 34196-6 which is part of kit J 34196-B with J 8092, install the input sun gear rear bushing (659).
