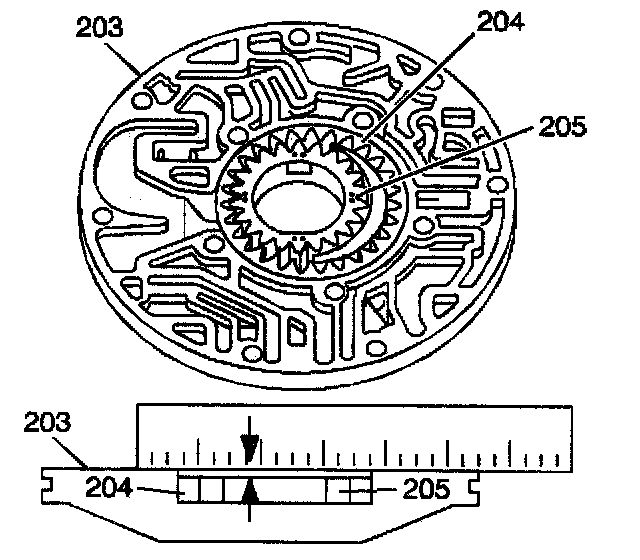

73. Trans Oil Pump Body to Gear Face Clearance Check

1. Place a straight edge across the oil pump body (203) face and the oil pump gear (204, 205) faces.
2. Measure the clearance between the straight edge and the oil pump gear faces. The clearance should be 0.02-0.071 mm (0.0008-0.0028 inch).
