Impala V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Engine Views
>>

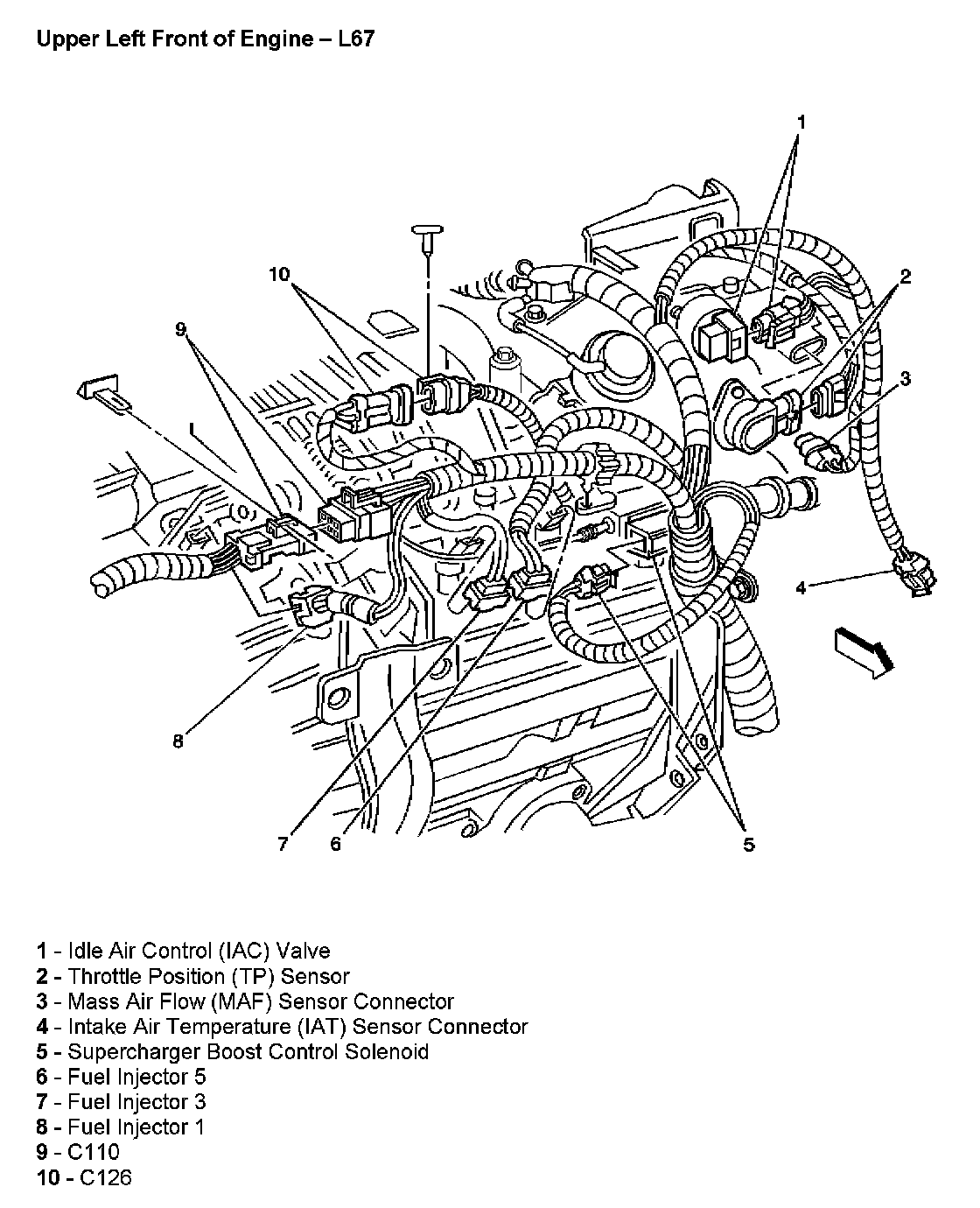

Upper Left Front of Engine
Upper Left Front of Engine
Upper Left Front Of Engine:
