Crankshaft Position Sensor
>>
Locations
Crankshaft Position Sensor: Locations

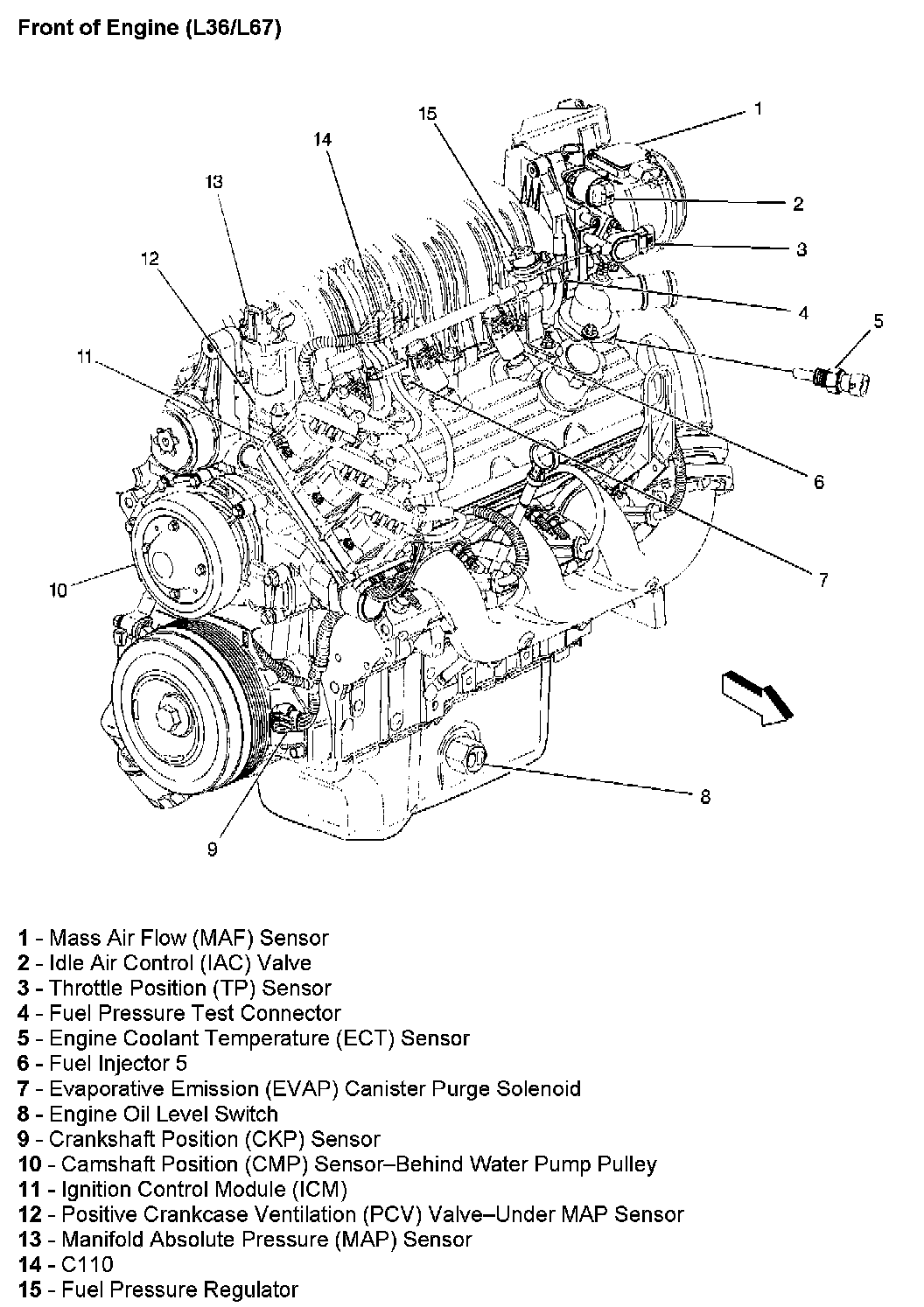

Front of Engine:
Right Front of Engine:
