Chevrolet
>>
2005
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Junction Block-Left I/P
Junction Block-Left I/P

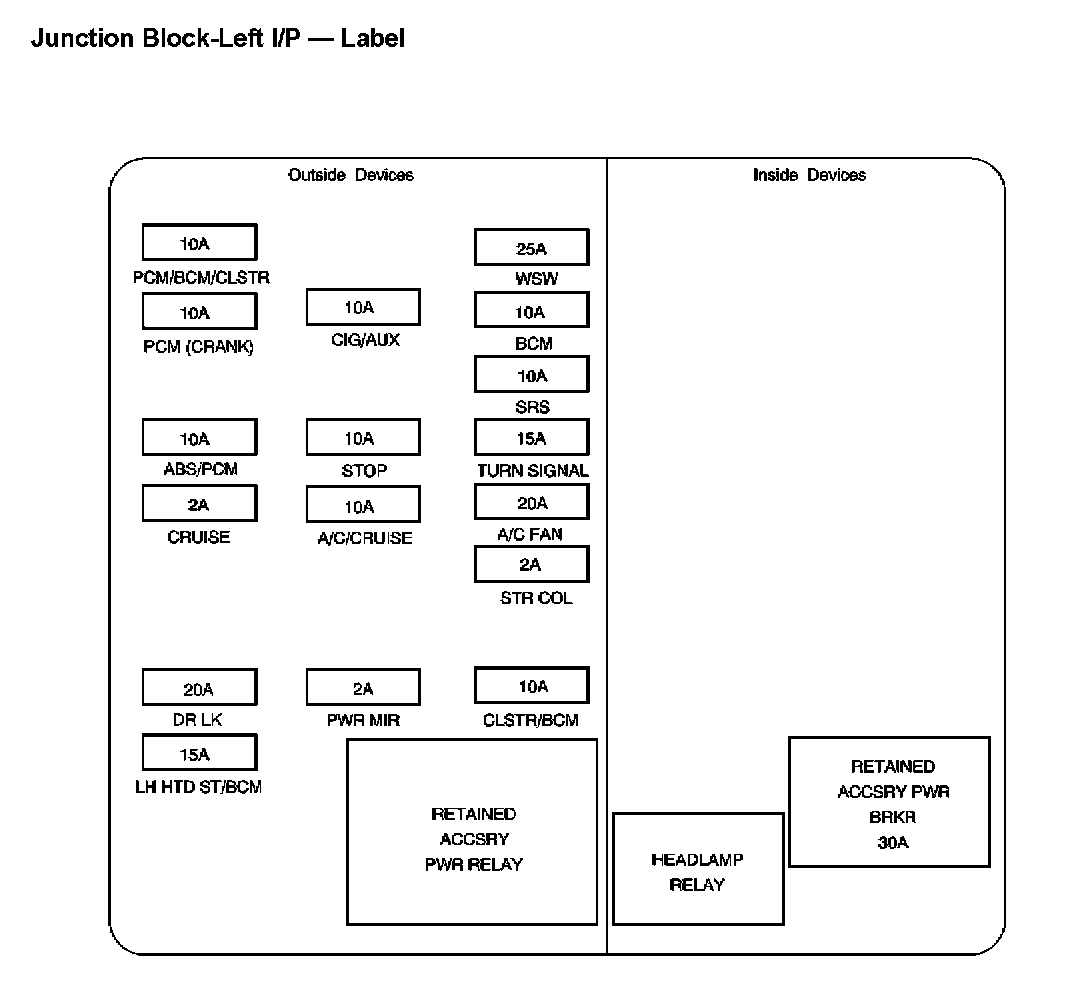

Location View:

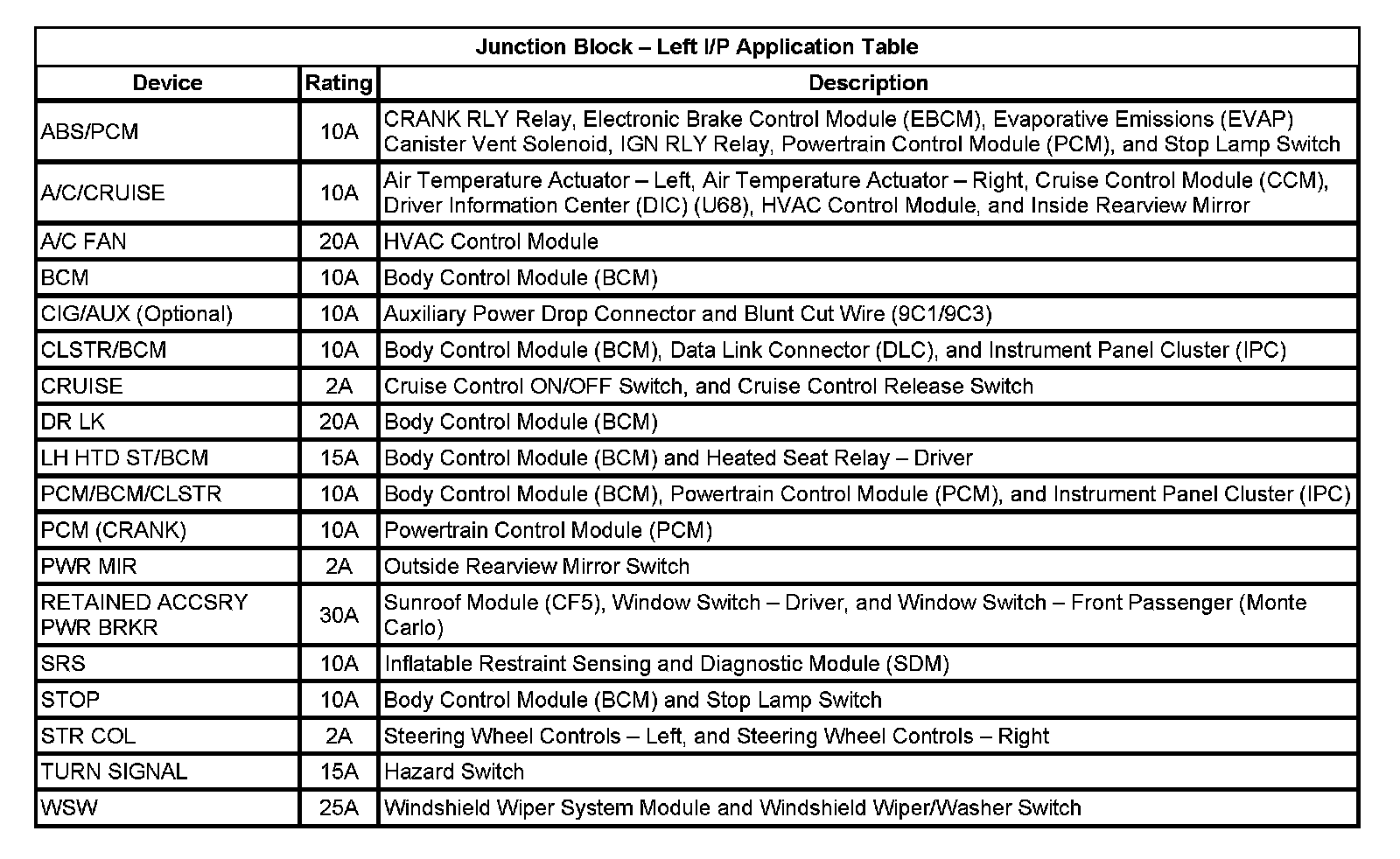

Application Table:
