Folding Top Stowage Compartment Lid Latch Switch/Sensor

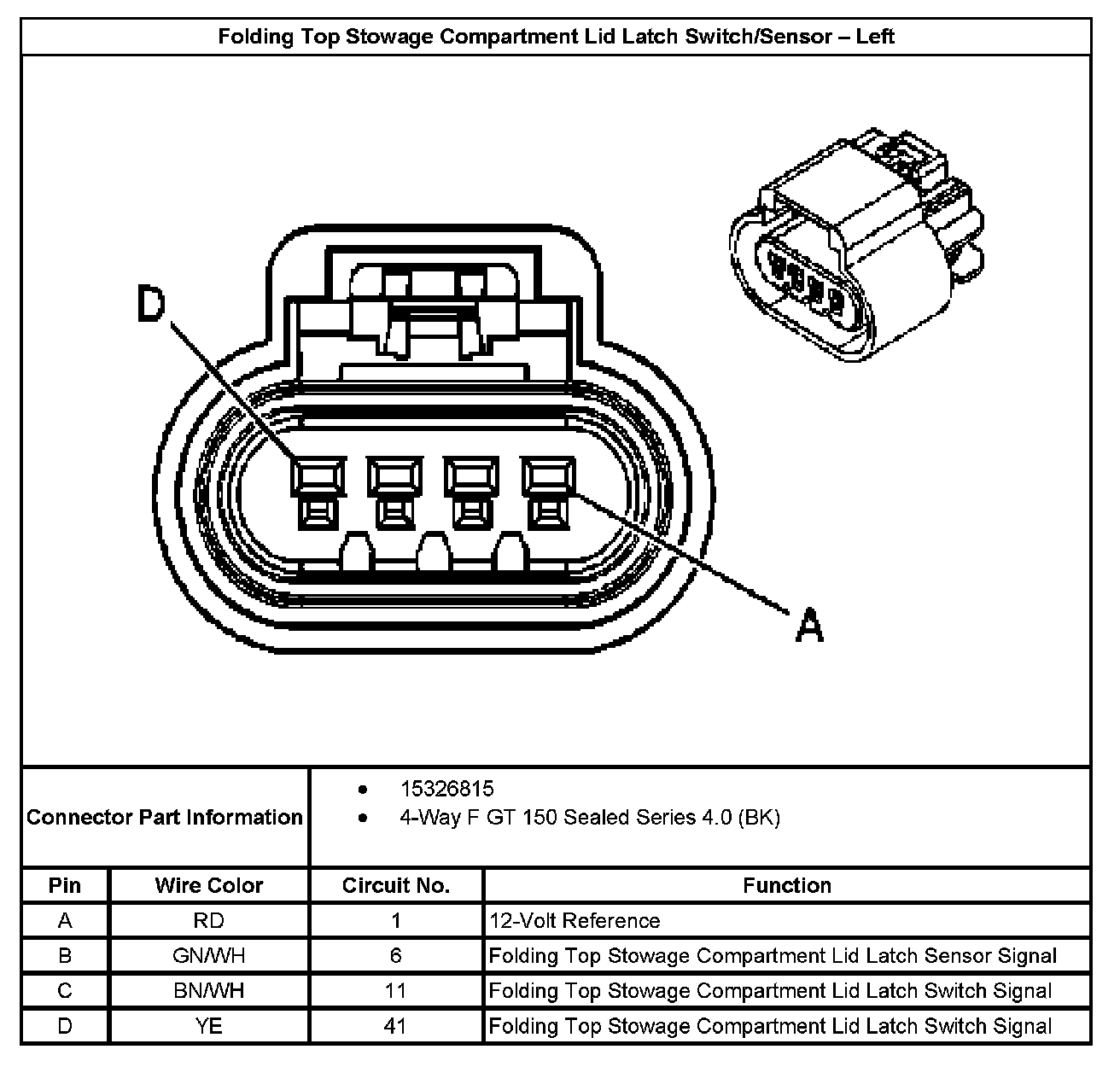

Folding Top Stowage Compartment Lid Latch Switch/Sensor - Left:

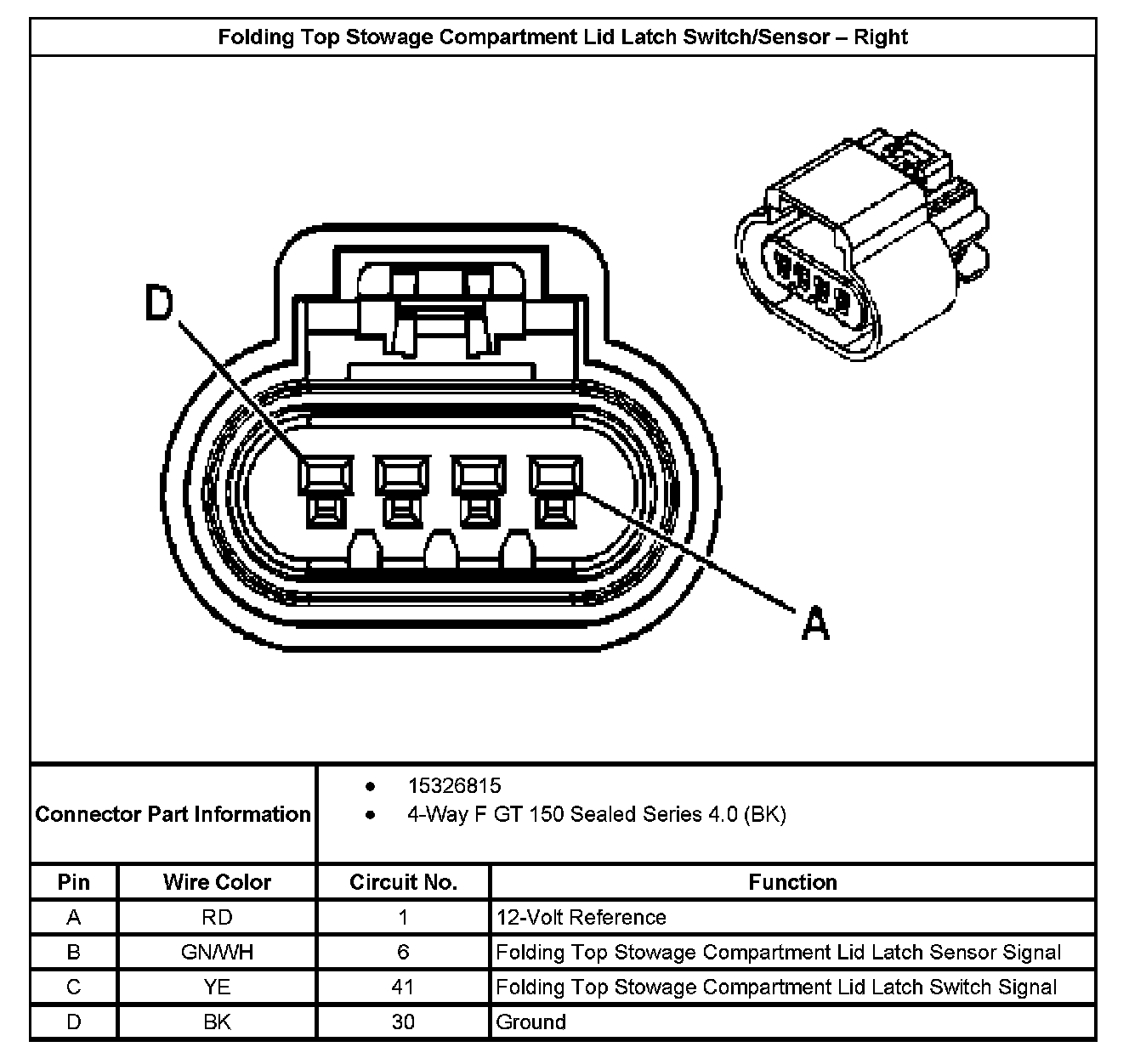

Folding Top Stowage Compartment Lid Latch Switch/Sensor - Right:
