Convertible Top Latch Position Switch / Sensor: Locations

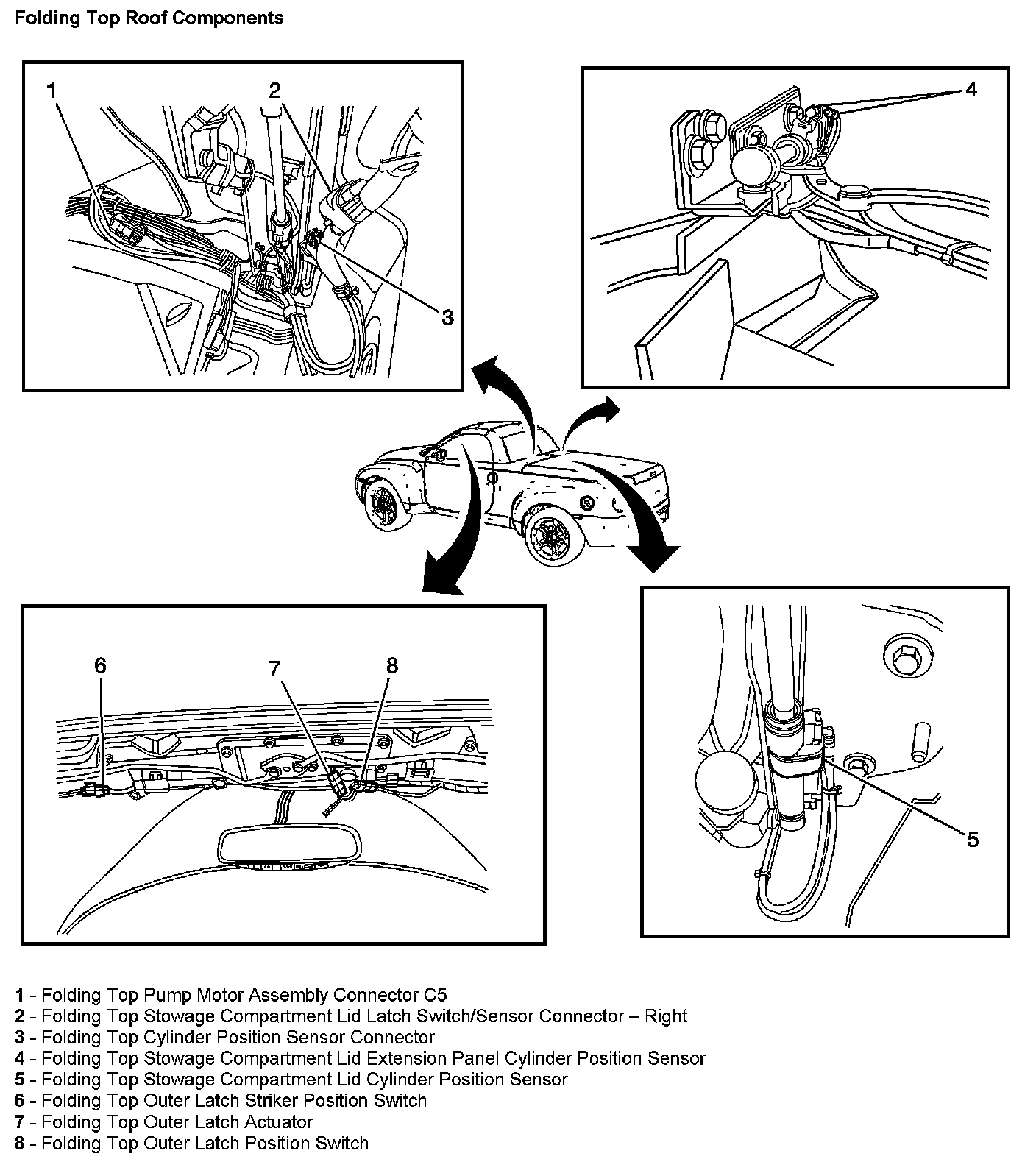

Folding Top Roof Components:

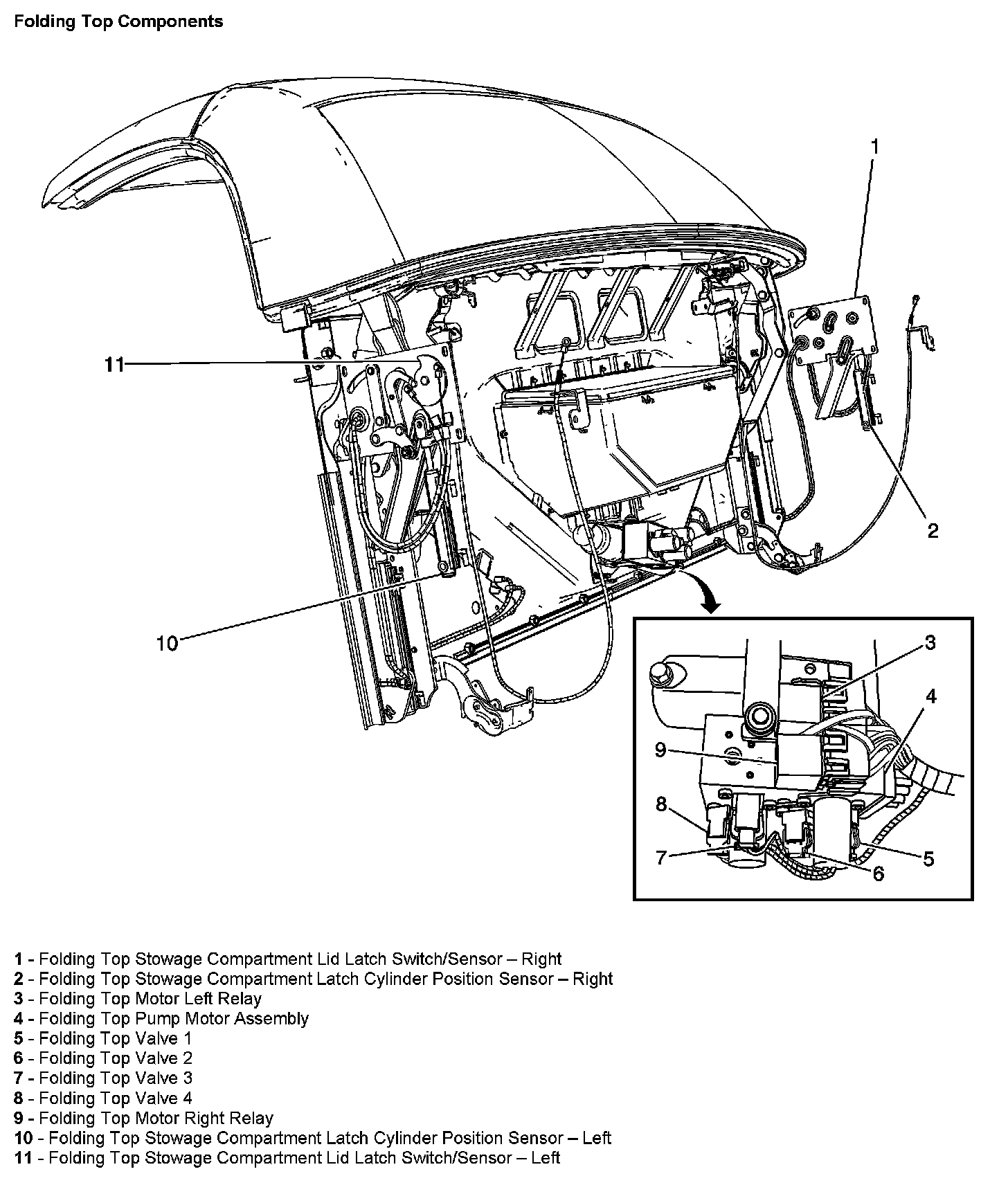

Folding Top Components:
