Chevrolet
>>
2005
>>
SSR V8-6.0L VIN H
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Sunroof / Moonroof
>>
Locations
>>
Roof/Door Module
Roof/Door Module

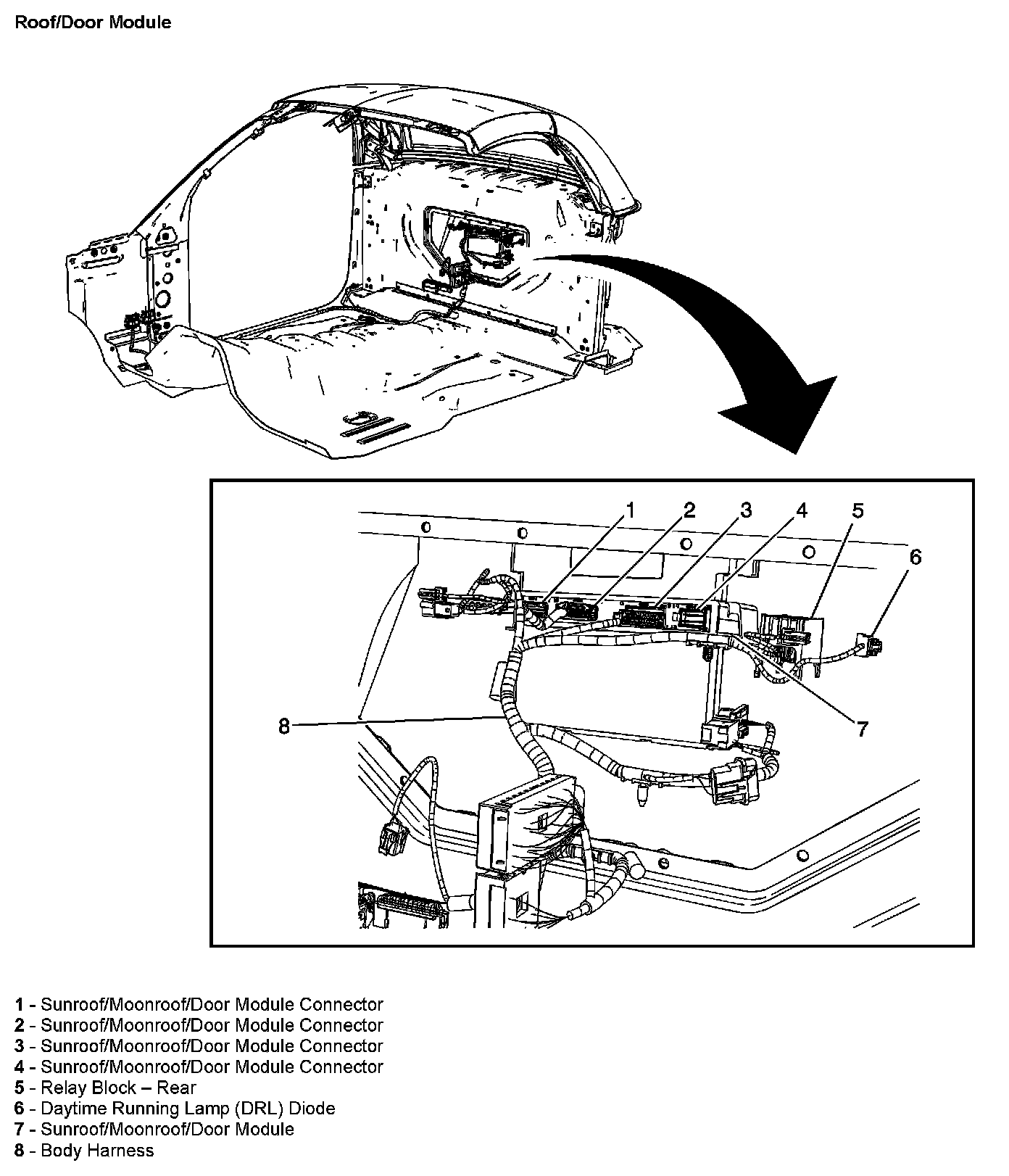

Roof/Door Module:

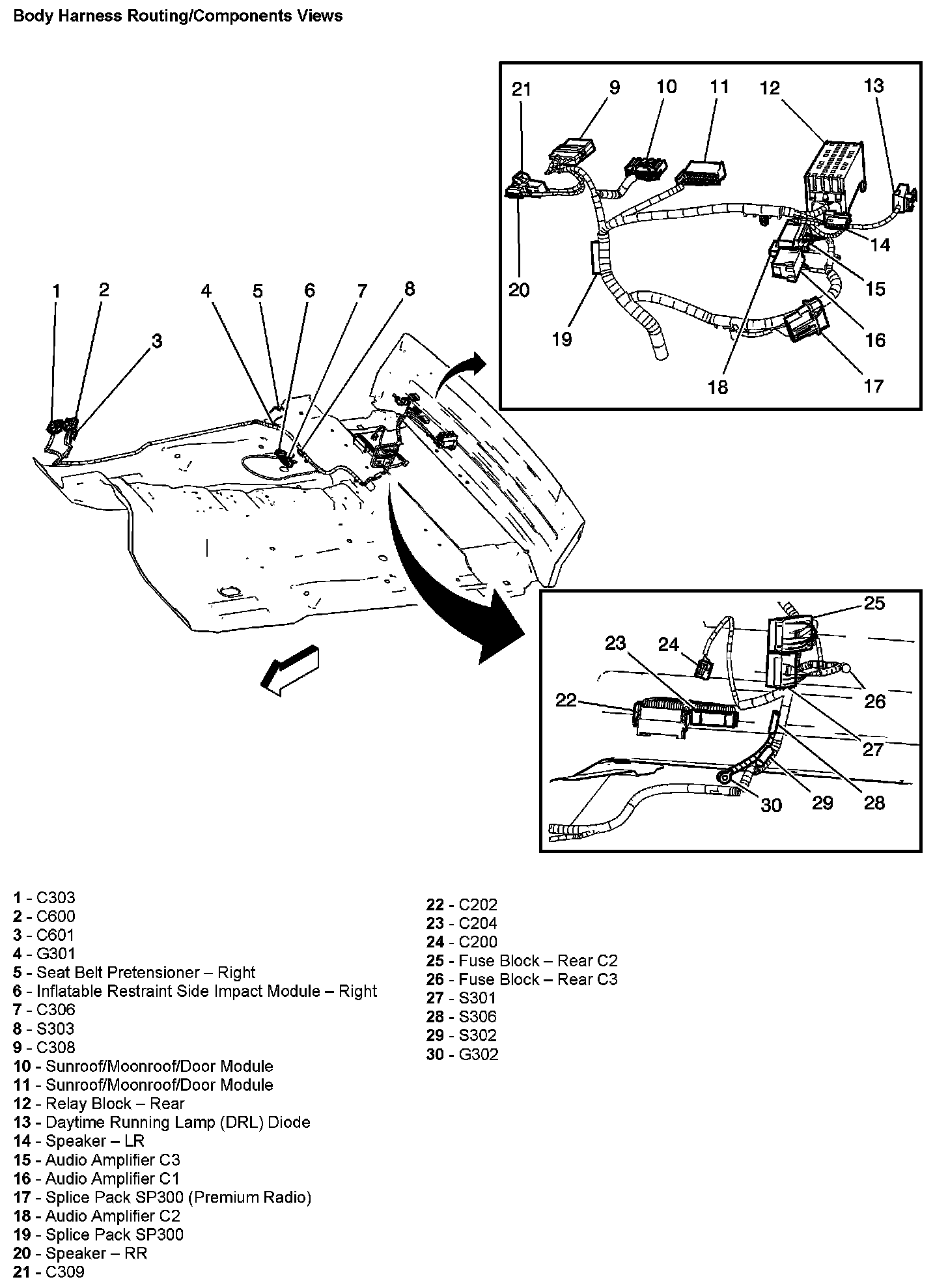

Body Harness Routing/Components Views:
