Driver Seat Base Level Components
Driver Seat Base Level Components

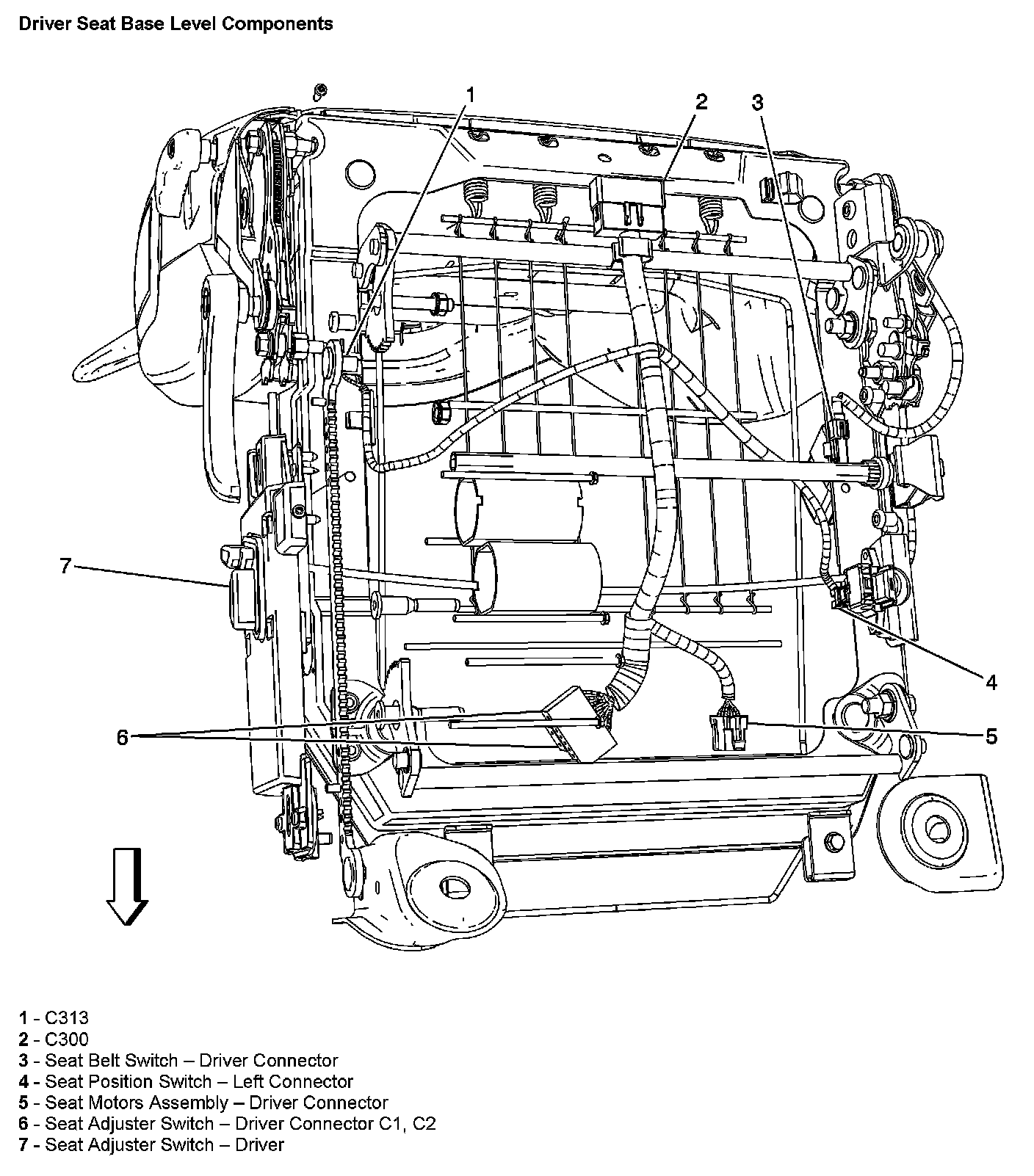

Driver Seat Base Level Components:

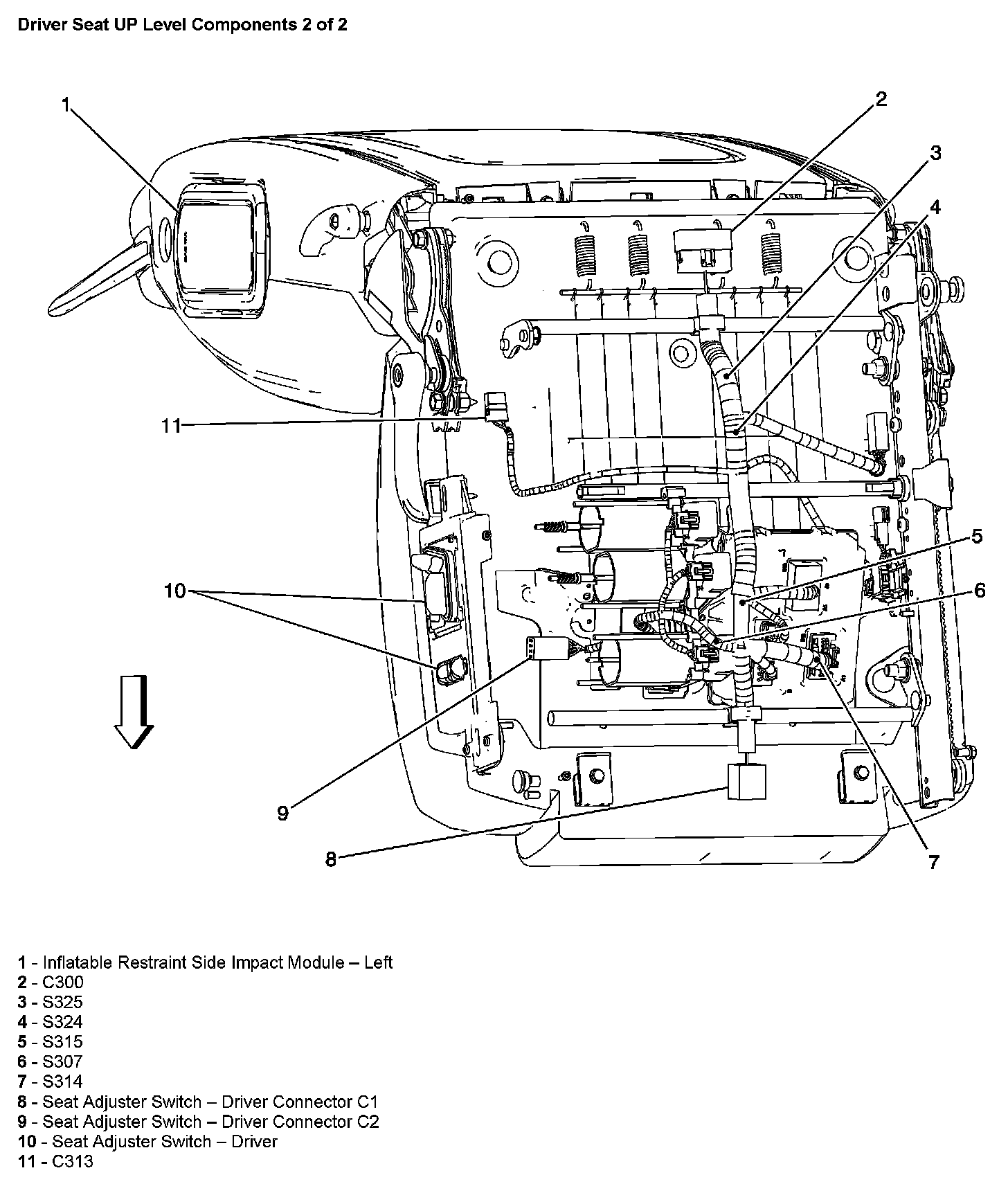

Driver Seat UP Level Components Part 2:

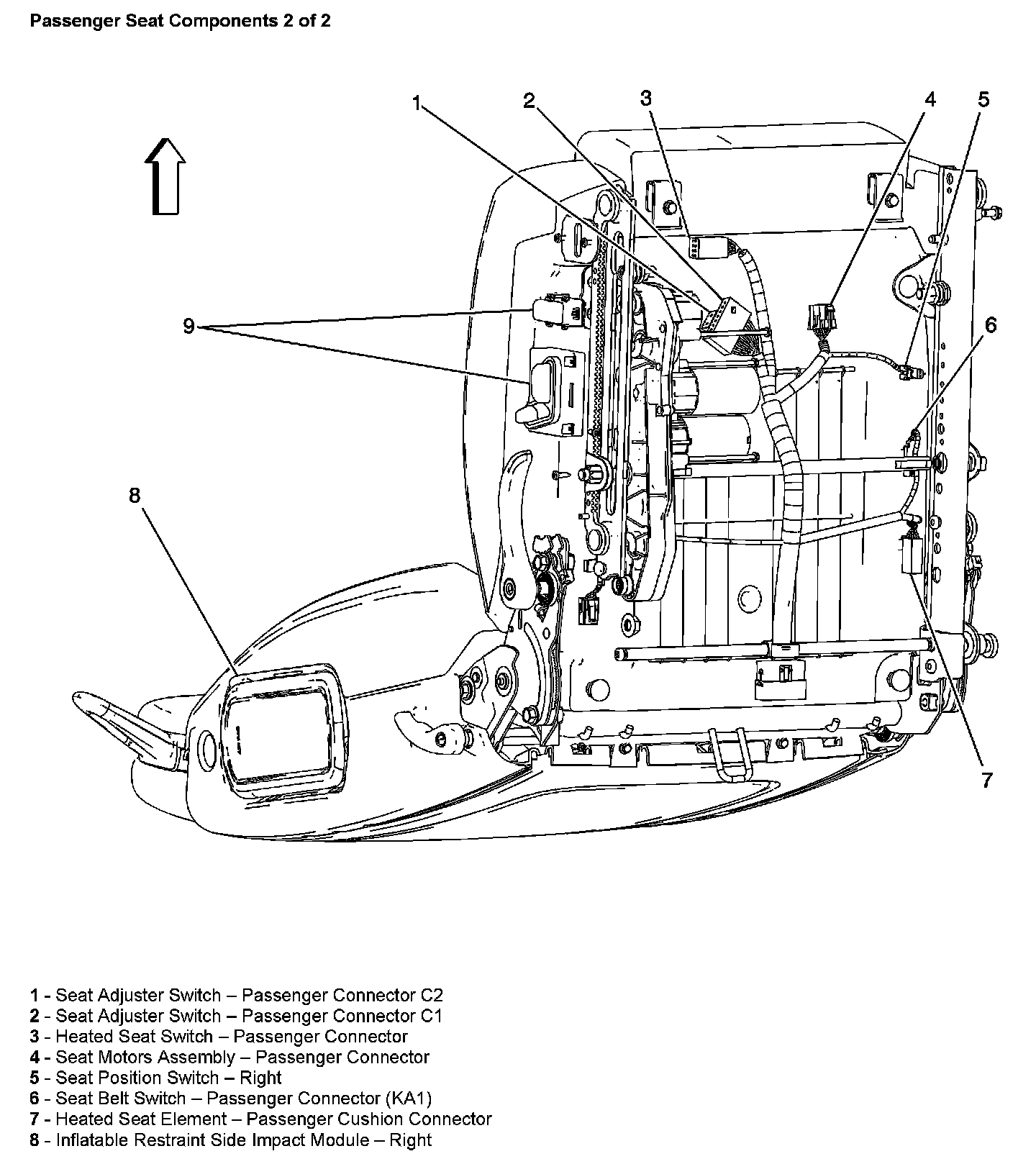

Passenger Seat Components Part 2:
