Seat Back Cushion-Side Bolster Panel Replacement

Seat Back Cushion-Side Bolster Panel Replacement

Removal Procedure

1. Remove the seat from the vehicle. Refer to Seat Replacement (Seat Replacement) .
2. Remove the seat back cover. Refer to Seat Back Cover and Pad Replacement - Front (Seat Back Cover and Pad Replacement - Front) .
3. Remove the inflatable restraint side impact module. Refer to Inflatable Restraint Side Impact Module Replacement - Front in SIR.

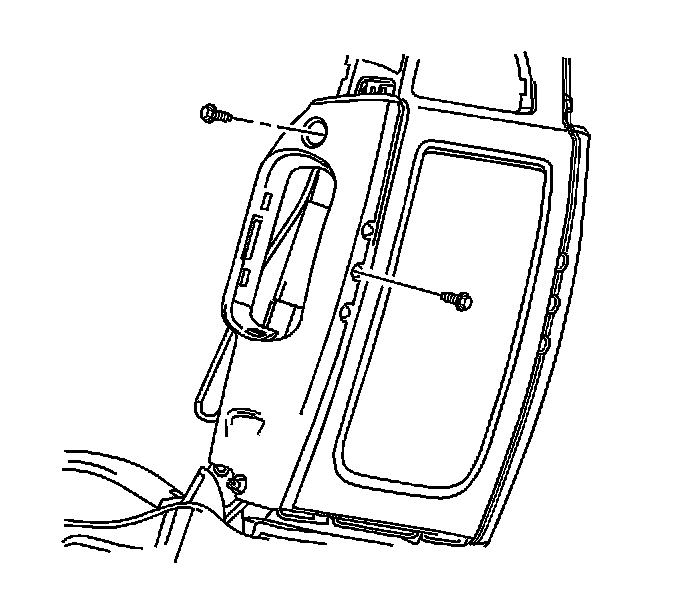

4. Remove the 2 screws that retain the seat back cushion side bolster panel to the seat back frame.



Installation Procedure






Notice: Refer to Fastener Notice in Cautions and Notices.

1. Install the 2 screws that secure the seat back cushion side bolster panel to the seat back frame.

Tighten the seat back cushion side bolster panel screws to 6.25 N.m (55 lb in).

2. Install the inflatable restraint side impact module. Refer to Inflatable Restraint Side Impact Module Replacement - Front in SIR.
3. Install the seat back cover. Refer to Seat Back Cover and Pad Replacement - Front (Seat Back Cover and Pad Replacement - Front) .
4. Install the seat in the vehicle. Refer to Seat Replacement (Seat Replacement) .
