Brake Fluid Level Sensor/Switch: Locations



Brake Fluid Level Switch

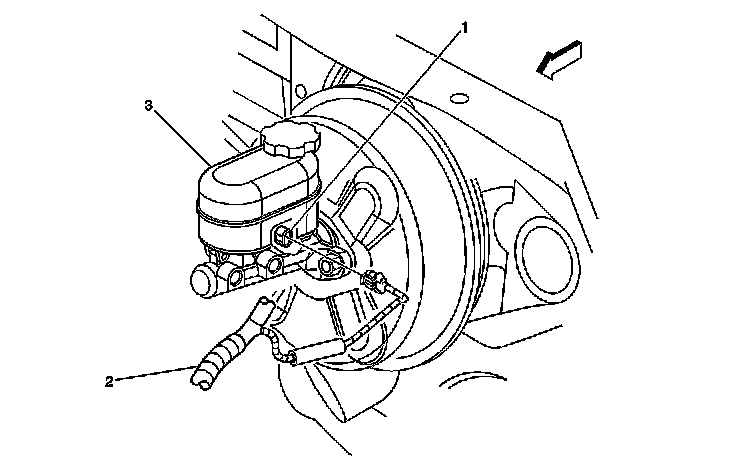

Brake Fluid Level Switch:





1 - Brake Fluid Level Switch
2 - Chassis Harness
3 - Brake Master Cylinder
