Air Temperature Sensor ( Ambient / Intake )
Air Temperature Sensor ( Ambient / Intake )

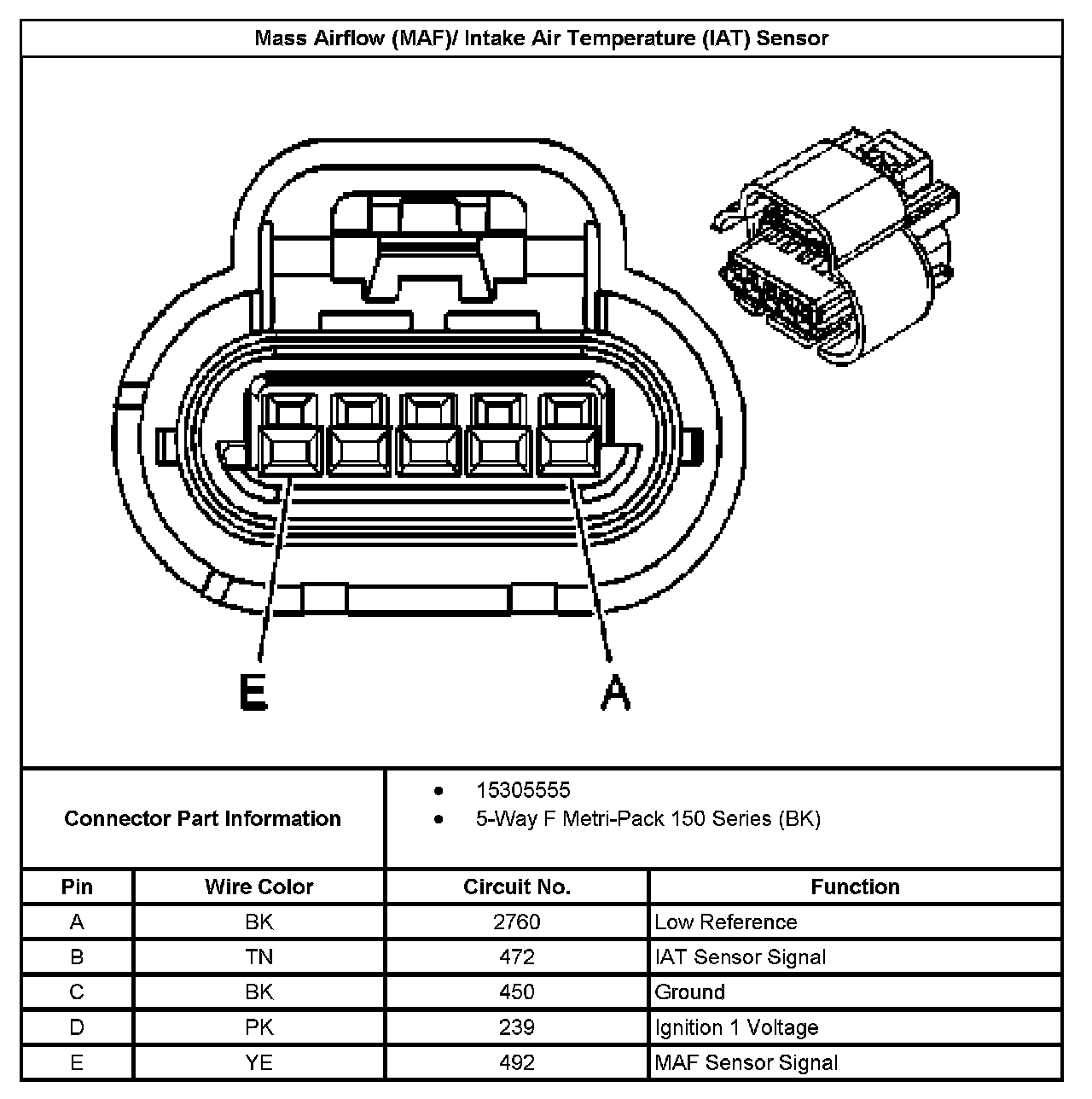

Mass Airflow (MAF) Intake Air Temperature (IAT) Sensor:
