System Diagram

Headlamp - Left High Beam:

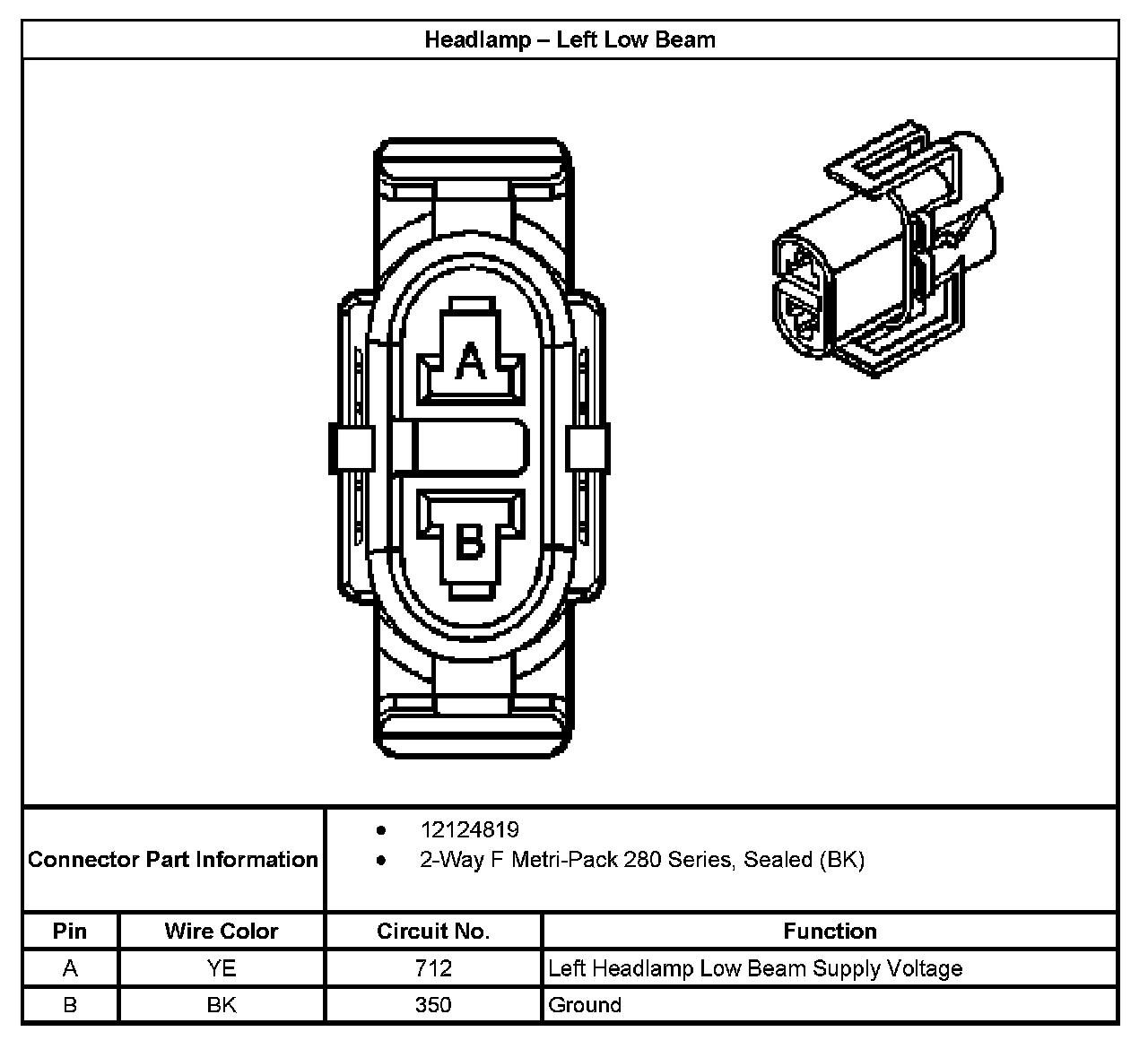

Headlamp - Left Low Beam:

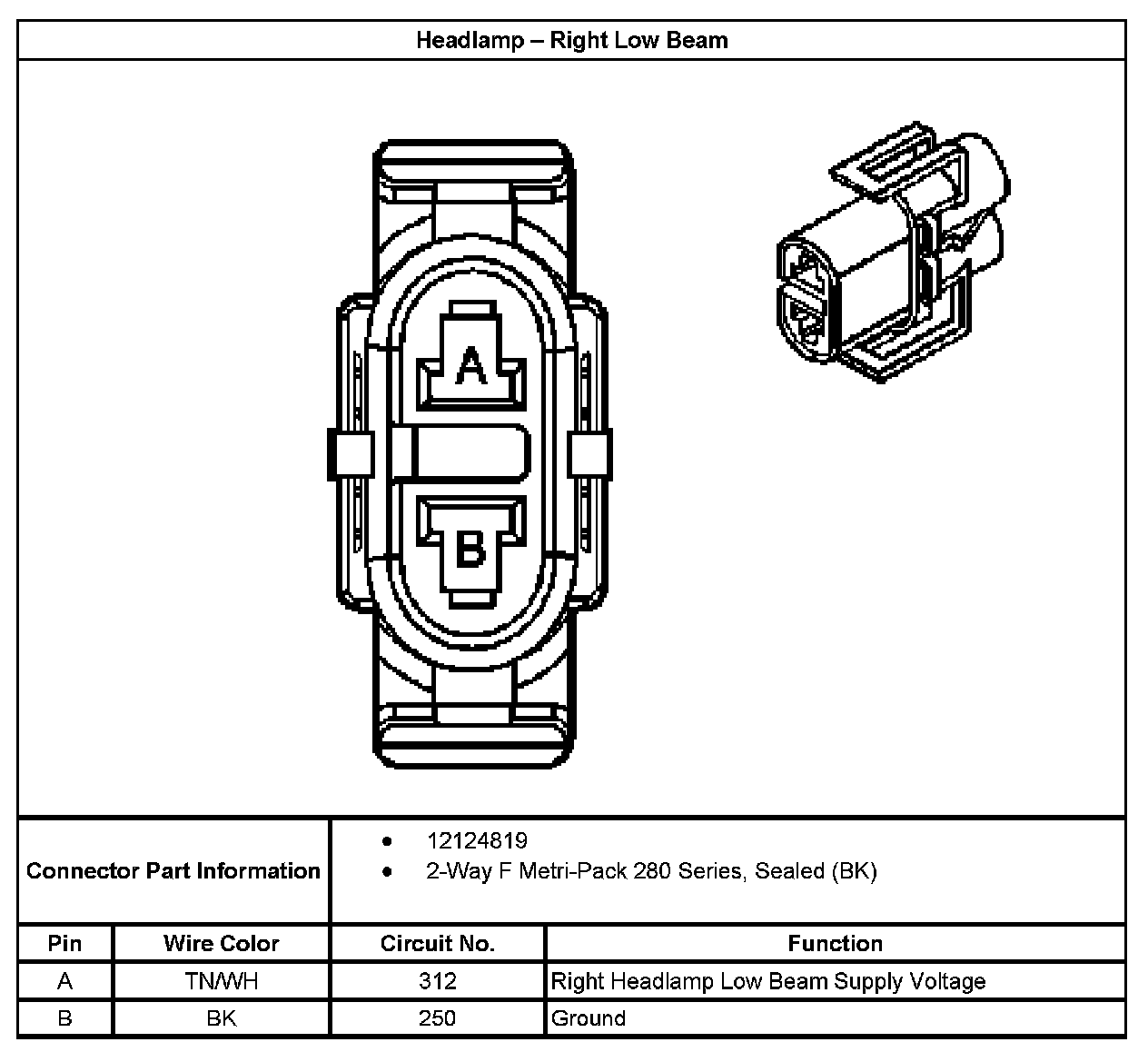

Headlamp - Right High Beam:



Headlamp - Right Low Beam:
