Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2005
>>
SSR V8-6.0L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C299
>>
C201
C201

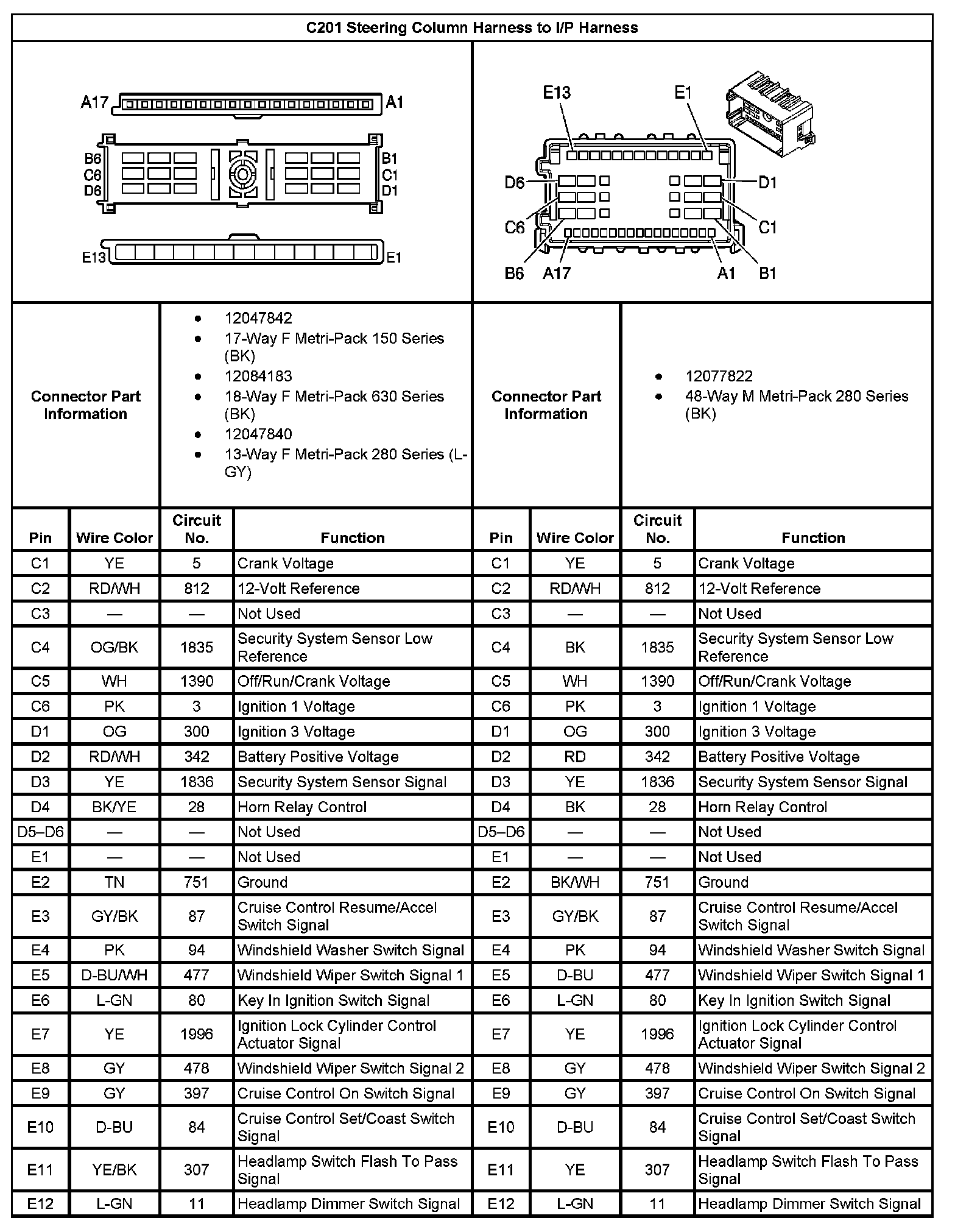

C201 Steering Column Harness to I/P Harness Part 1:

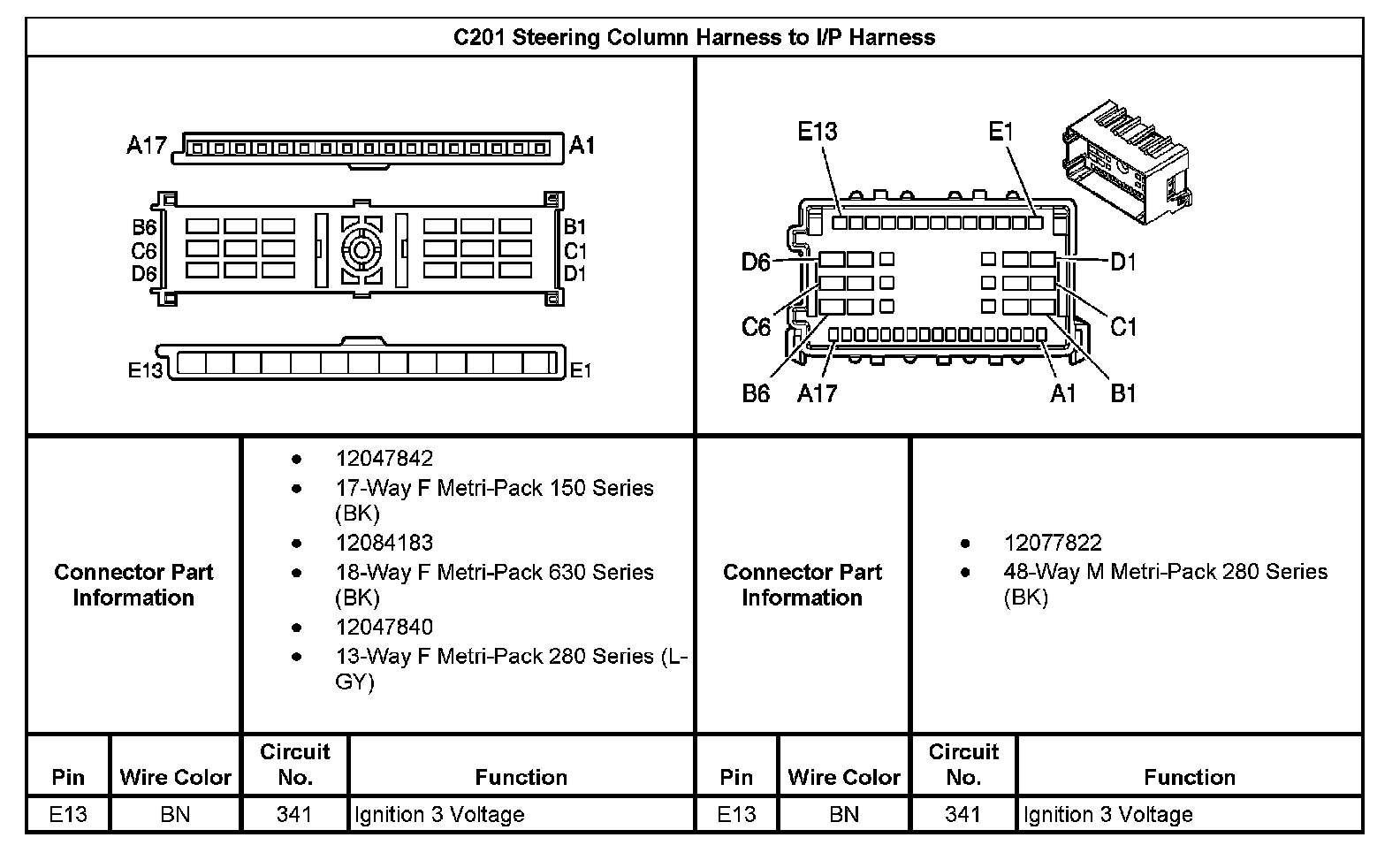

C201 Steering Column Harness To I/P Harness Part 2:

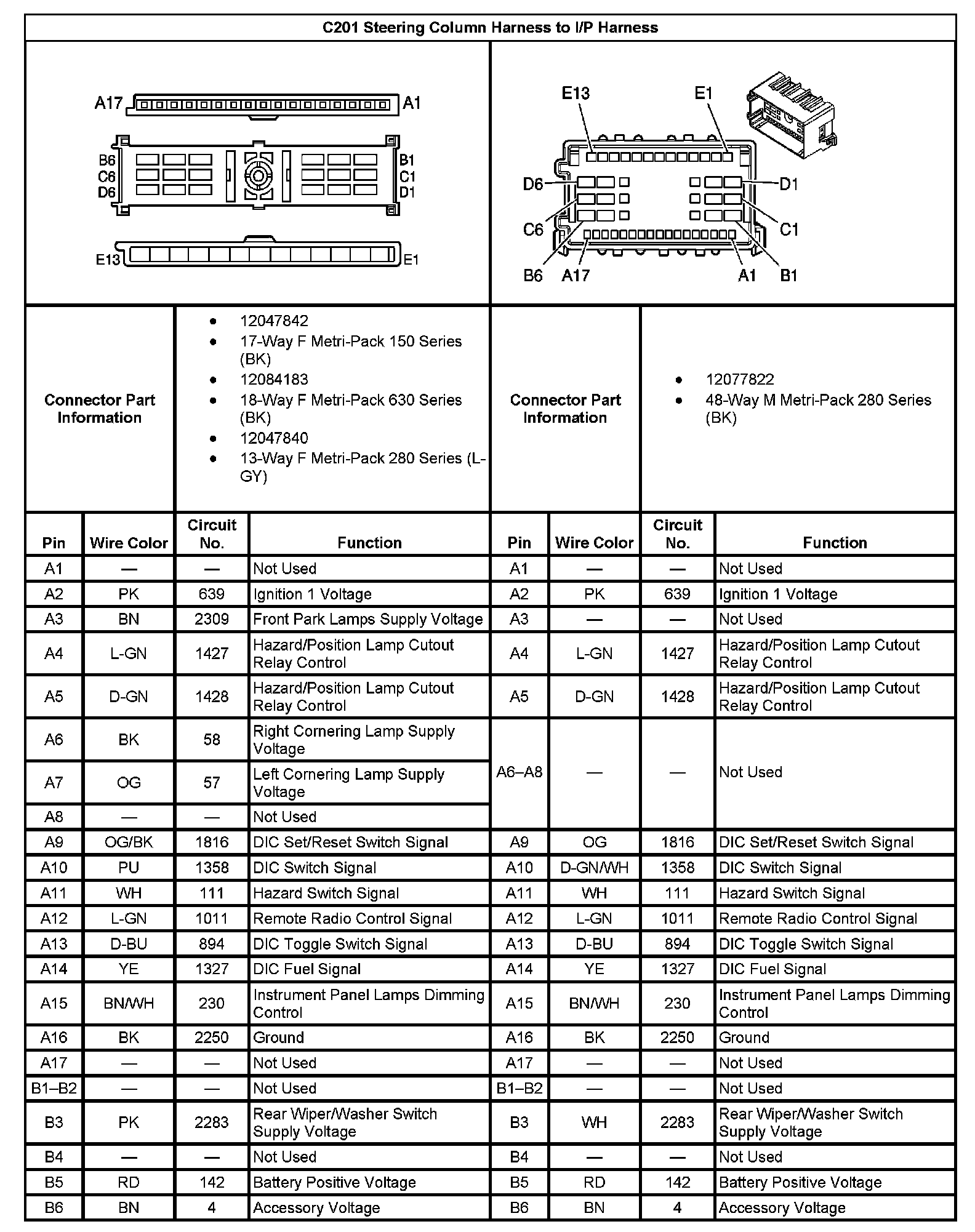

C201 Steering Column Harness to I/P Harness Part 3:
