Wiring Diagram Index

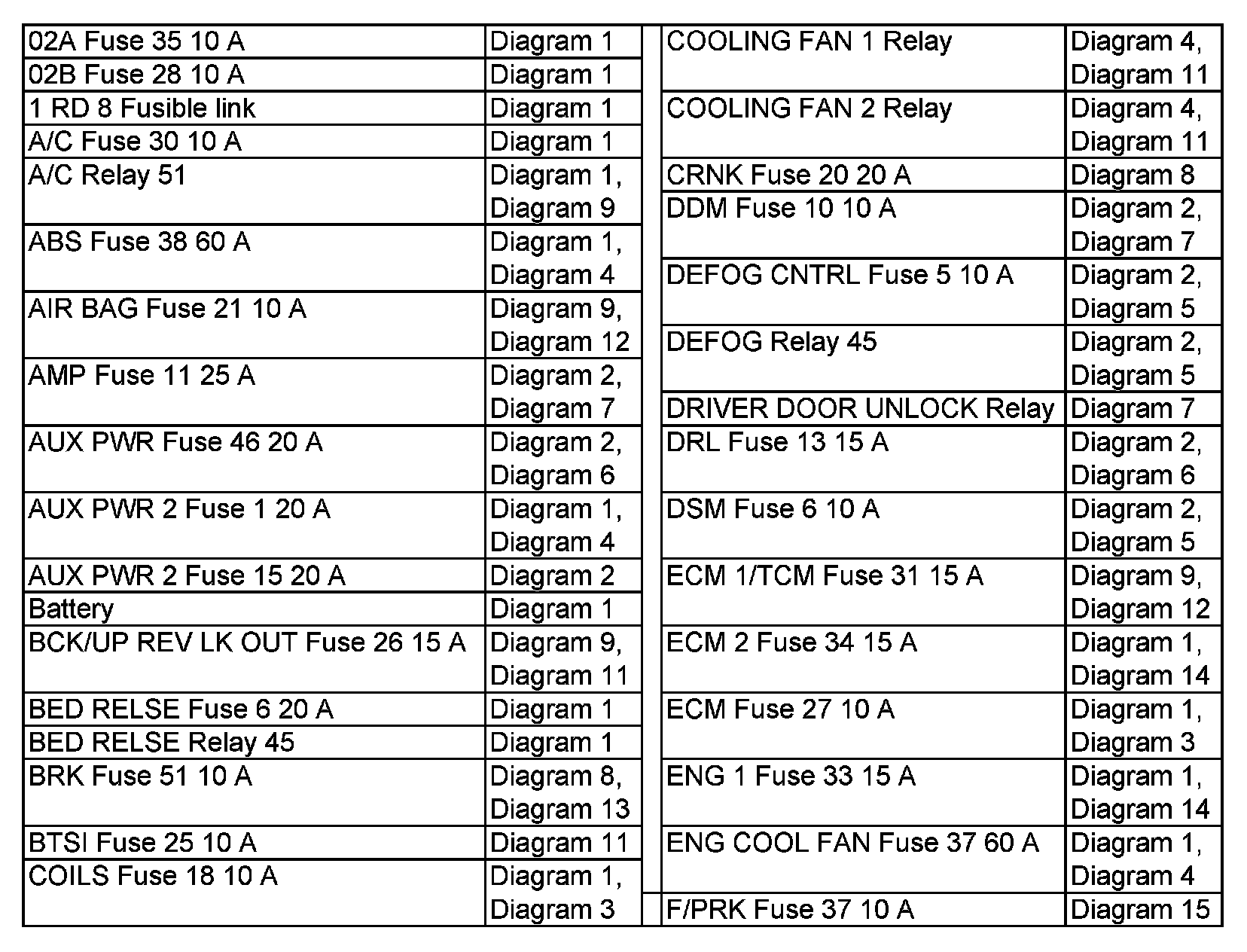

02A Fuse - F/PRK Fuse:

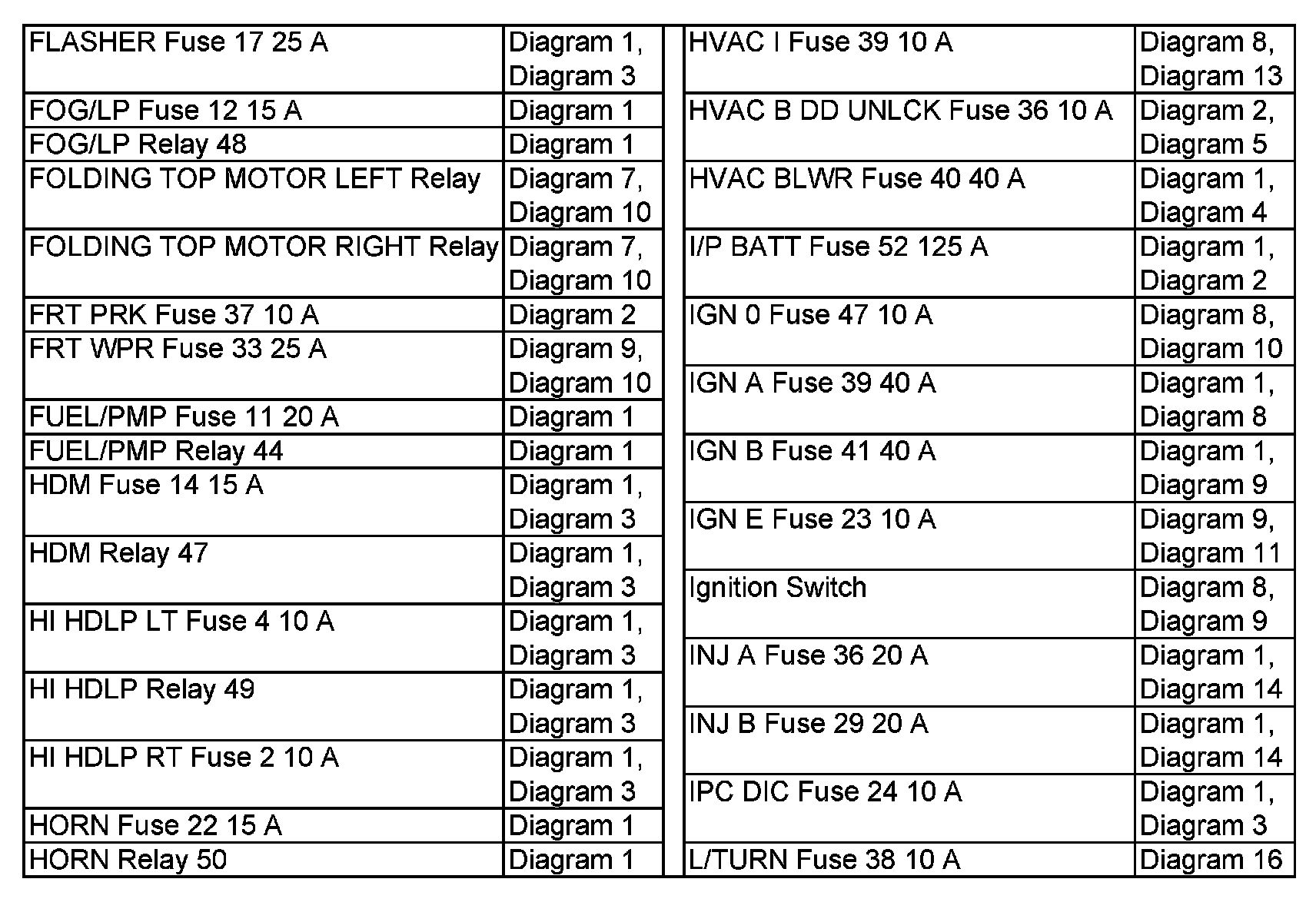

FLASHER Fuse - L/TURN Fuse:

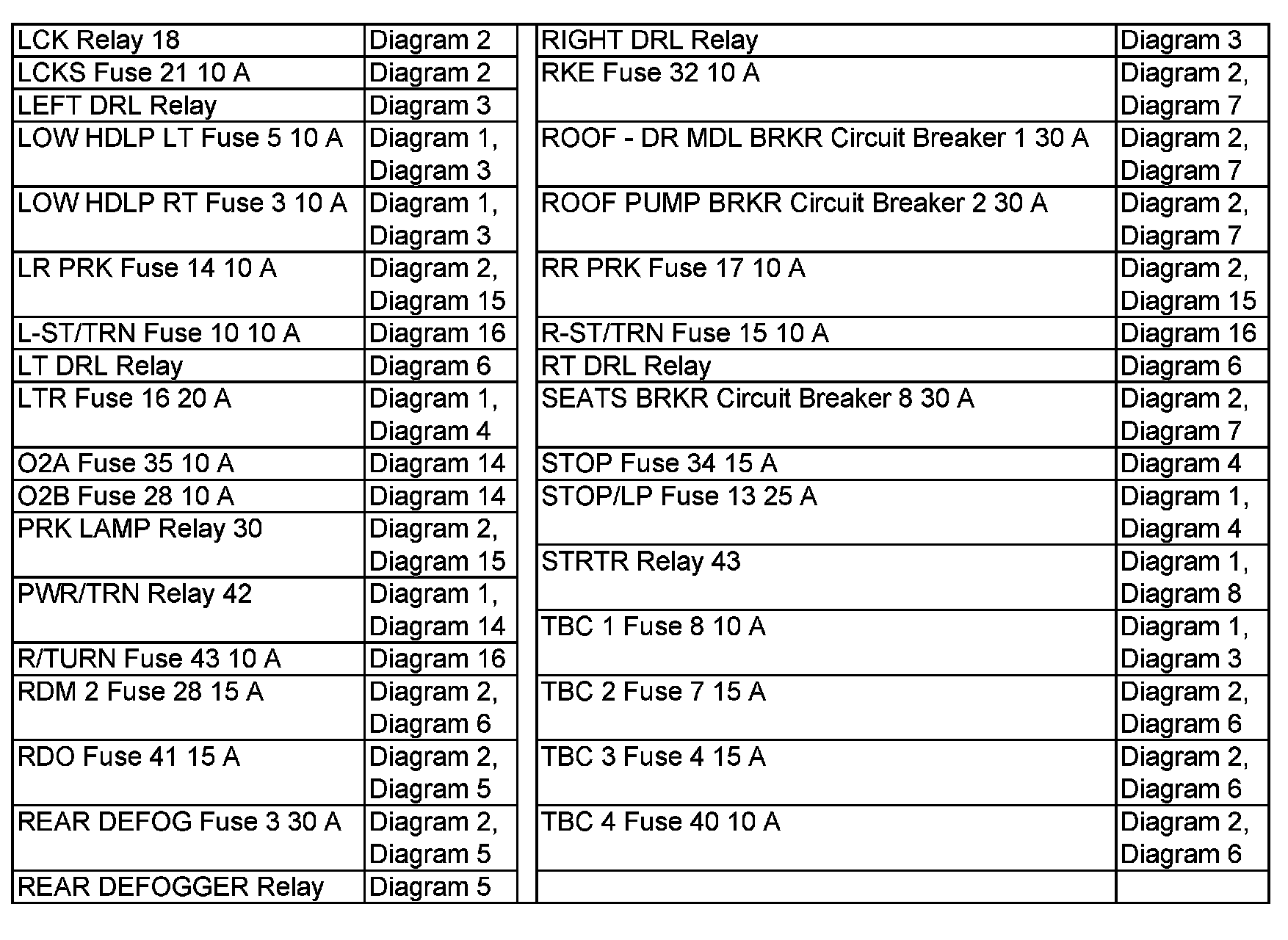

LCK Relay - TBC 4 Fuse:

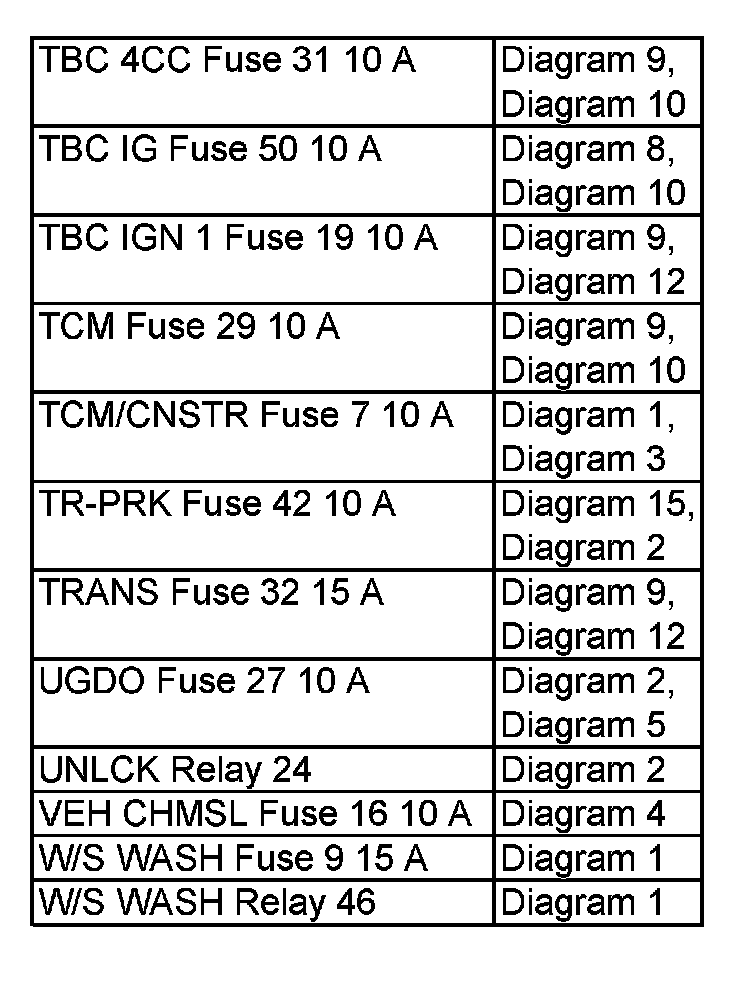

TBC 4CC - W/S WASH:
