9.5LD

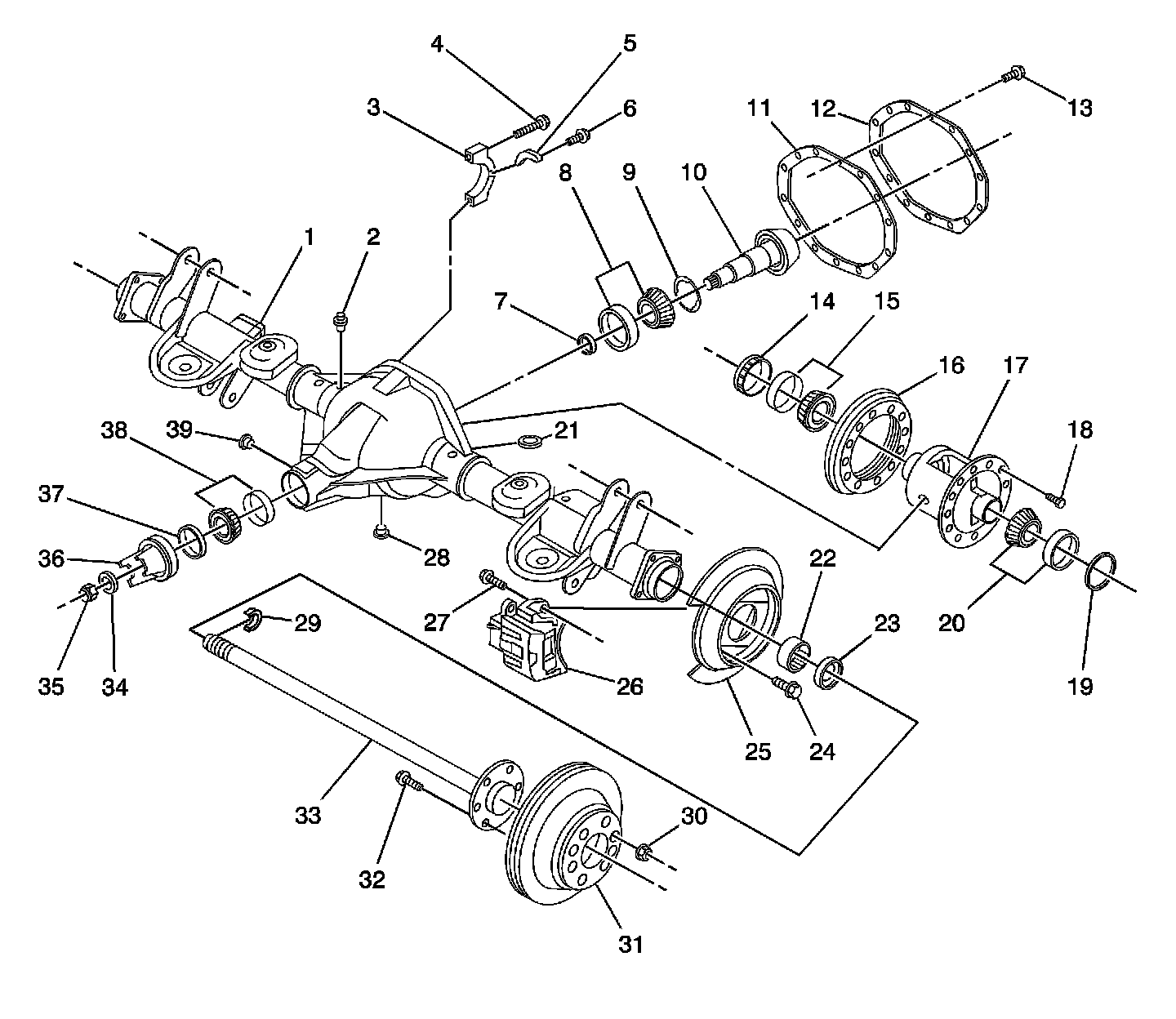

Rear Axle Disassembled Views (9.5LD)





1 - Axle Housing
2 - Vent Connector
3 - Differential Bearing Cap
4 - Differential Cap Bolt
5 - Differential Bearing Adjuster Lock
6 - Differential Bearing Adjuster Lock Bolt
7 - Pinion Bearing Spacer
8 - Pinion Bearing Assembly-Inner
9 - Pinion Shim
10 - Drive Pinion
11 - Differential Cover Pan Gasket
12 - Differential Cover Pan
13 - Differential Cover Pan Bolt
14 - Differential Bearing Adjuster
15 - Differential Bearing Assembly
16 - Ring Gear
17 - Differential Assembly
18 - Ring Gear Bolt
19 - Ring Gear Bolt
20 - Differential Bearing Assembly
21 - Differential Cover Magnet
22 - Axle Shaft Bearing
23 - Axle Shaft Seal
24 - Brake Attaching Bolt
25 - Park Brake Assembly
26 - Caliper Assembly
27 - Caliper Assembly Bolt
28 - Drain Plug
29 - Axle Shaft Lock
30 - Push Nut
31 - Brake Rotor
32 - Wheel Stud
33 - Rear Axle Shaft
34 - Pinion Washer
35 - Pinion Nut
36 - Pinion Yoke Assembly
37 - Pinion Seal
