Rear of Engine

Disassembled Views

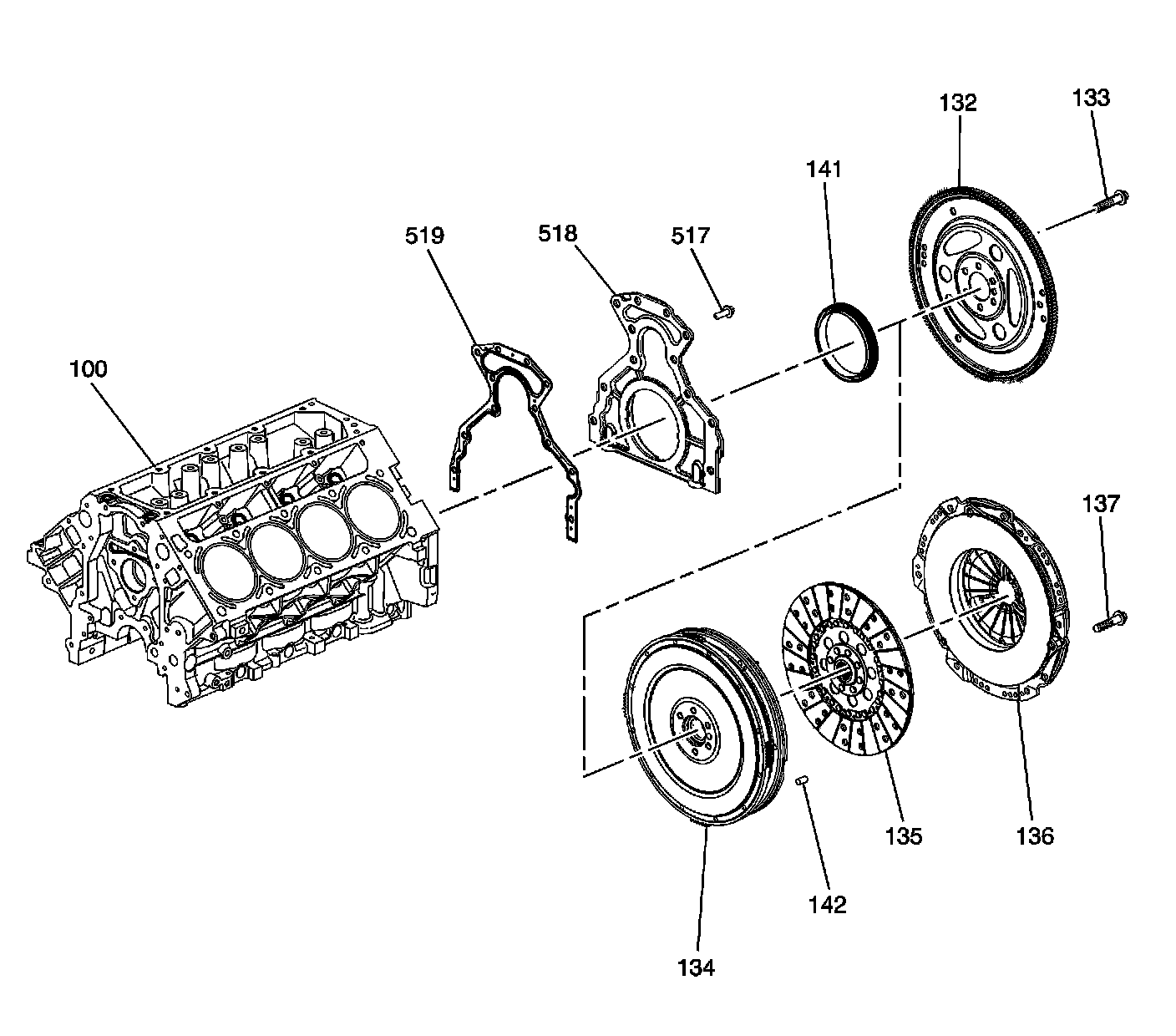

Rear of Engine

Rear of Engine:

100 - Engine Block
132 - Flywheel - Automatic Transmission
133 - Bolt
134 - Flywheel - Manual Transmission
135 - Clutch Disc - Manual Transmission
136 - Pressure Plate - Manual Transmission
137 - Bolt
141 - Crankshaft Rear Oil Seal
142 - Pressure Plate Locating Pin - Manual Transmission
517 - Bolt
518 - Rear Cover
519 - Gasket
