Engine Valley Cover Replacement

Engine Valley Cover Replacement

Removal Procedure





1. Remove the intake manifold.
2. Remove the engine valley cover bolts (506).

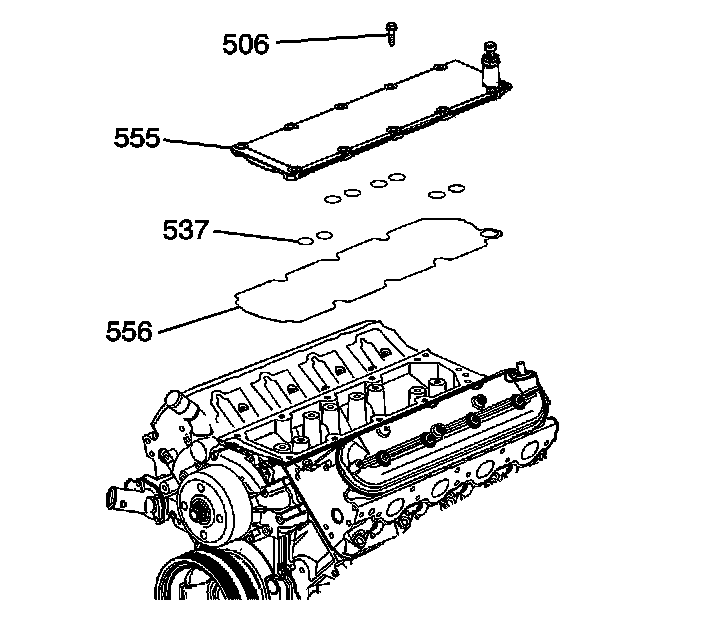

3. Remove the engine valley cover (555), gasket (556), and the O-rings (537) from the cover.
4. Remove the oil pressure sensor and washer as required.
5. Discard the old gaskets and O-rings. DO NOT reuse. Use NEW gaskets and O-rings ONLY.

Installation Procedure





1. Important: All gasket surfaces should be free of oil and other foreign material during assembly.

Lubricate the O-ring seals with clean engine oil.
2. Install the O-rings (537) to the cover (555).

3. Notice: Refer to Fastener Notice in Service Precautions.

Install the cover (555), gaskets (556), and bolts (506).
^ Tighten the cover bolts to 25 Nm (18 ft. lbs.).
4. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent to the threads of the sensor.
5. Install the oil pressure sensor and sealing washer.
^ Tighten the sensor to 20 Nm (15 ft. lbs.).
6. Install the intake manifold.
