Instrument Panel (IP) - Trim Panel Replacement - Right

Instrument Panel (I/P) Trim Panel Replacement - Right

Removal Procedure





1. Remove the HVAC knobs.

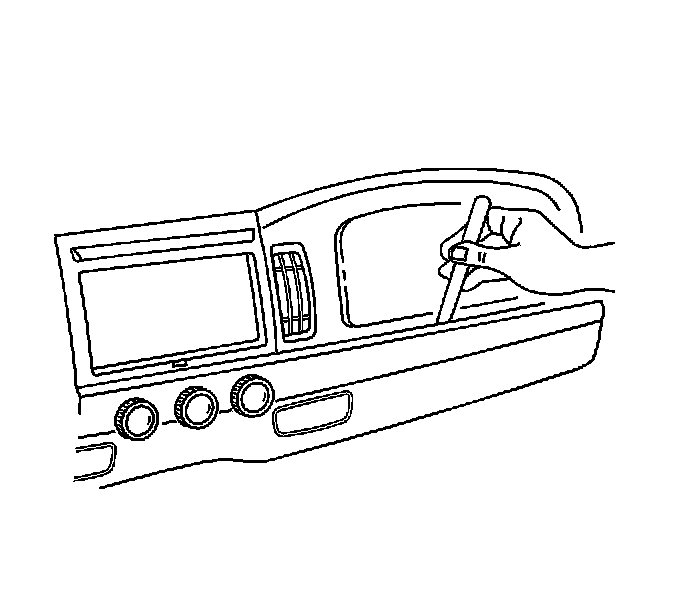

2. Using a flat-bladed plastic tool, gently pry on bright strip to release the 5 retaining clips.

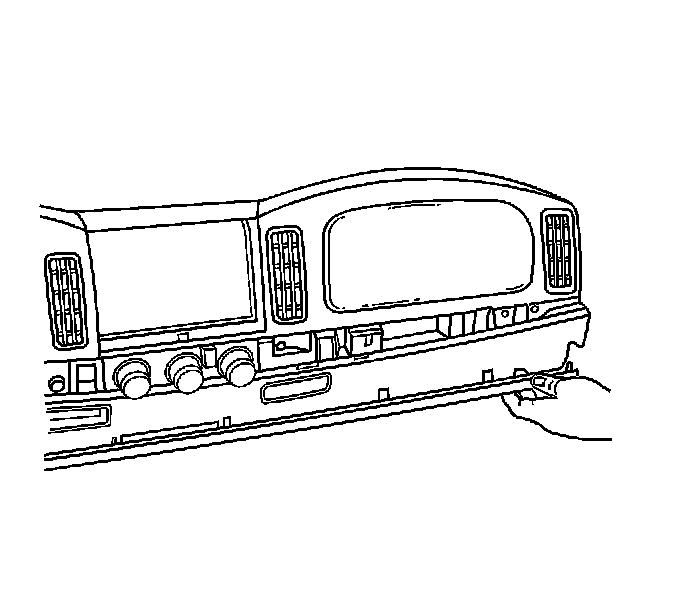

3. Remove the trim panel from the instrument panel (I/P).



Installation Procedure





1. Index the retaining clips to the instrument panel (I/P).
2. Push the trim panel forward until the retaining clips are fully seated.




3. Install the HVAC knobs.
