Fog/Driving Lamp: Service and Repair

FOG LAMP REPLACEMENT - FRONT

REMOVAL PROCEDURE
1. Raise the vehicle. Refer to Vehicle Lifting.

CAUTION: Refer to Halogen Bulb Caution in Service Precautions.

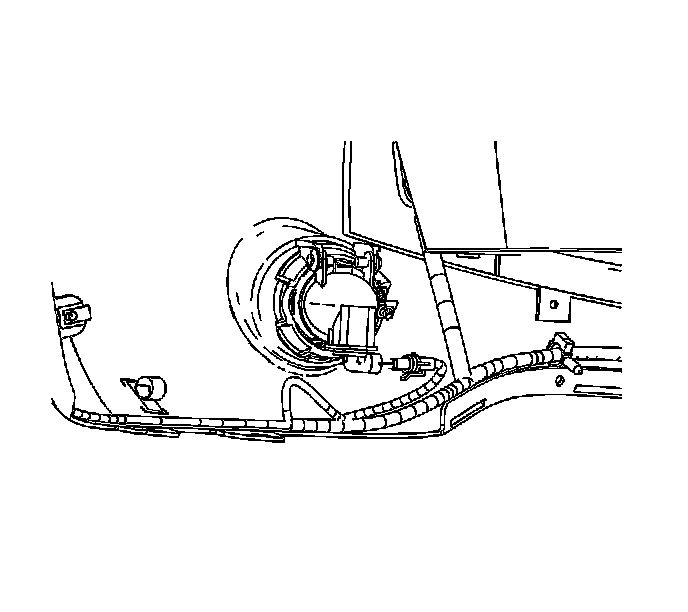

2. Disconnect the electrical connector from the fog lamp bulb.

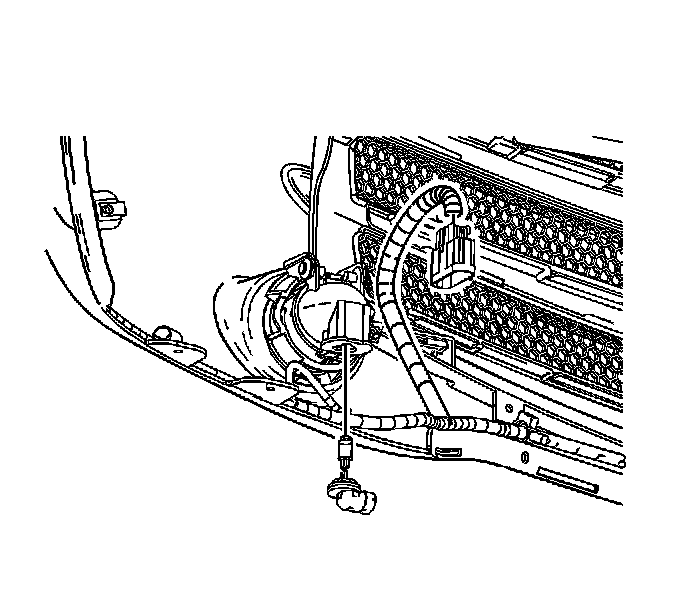

3. Remove the fog lamp bulb from the housing by rotating the bulb counterclockwise.

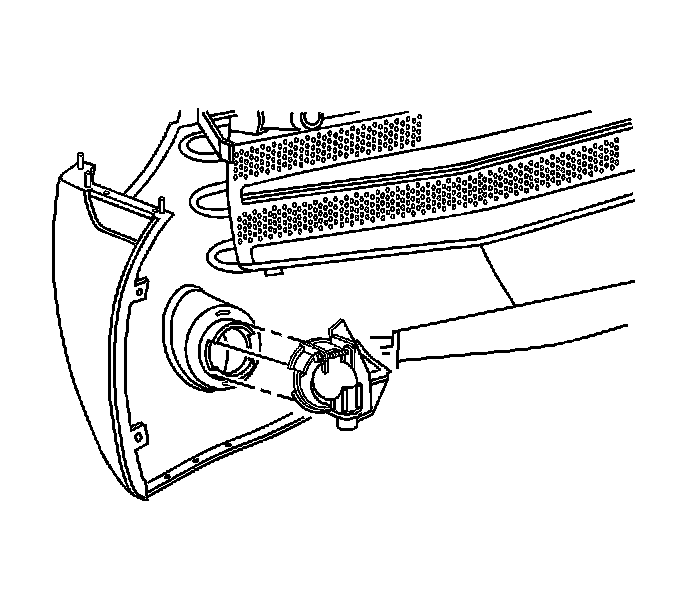

4. Using a flat-bladed tool, release the fog lamp from the fascia from the front of the vehicle.




5. Remove the fog lamp from the vehicle.

INSTALLATION PROCEDURE




1. Align the fog lamp housing to the opening in the fascia.
2. Push the fog lamp into the fascia firmly until fully seated.




3. Install the fog lamp bulb into the housing and rotate the bulb clockwise.




4. Connect the fog lamp wiring harness to the fog lamp bulb.
5. Lower vehicle.
