Tail/Stop and Turn Signal Lamp
Tail/Stop and Turn Signal Lamp

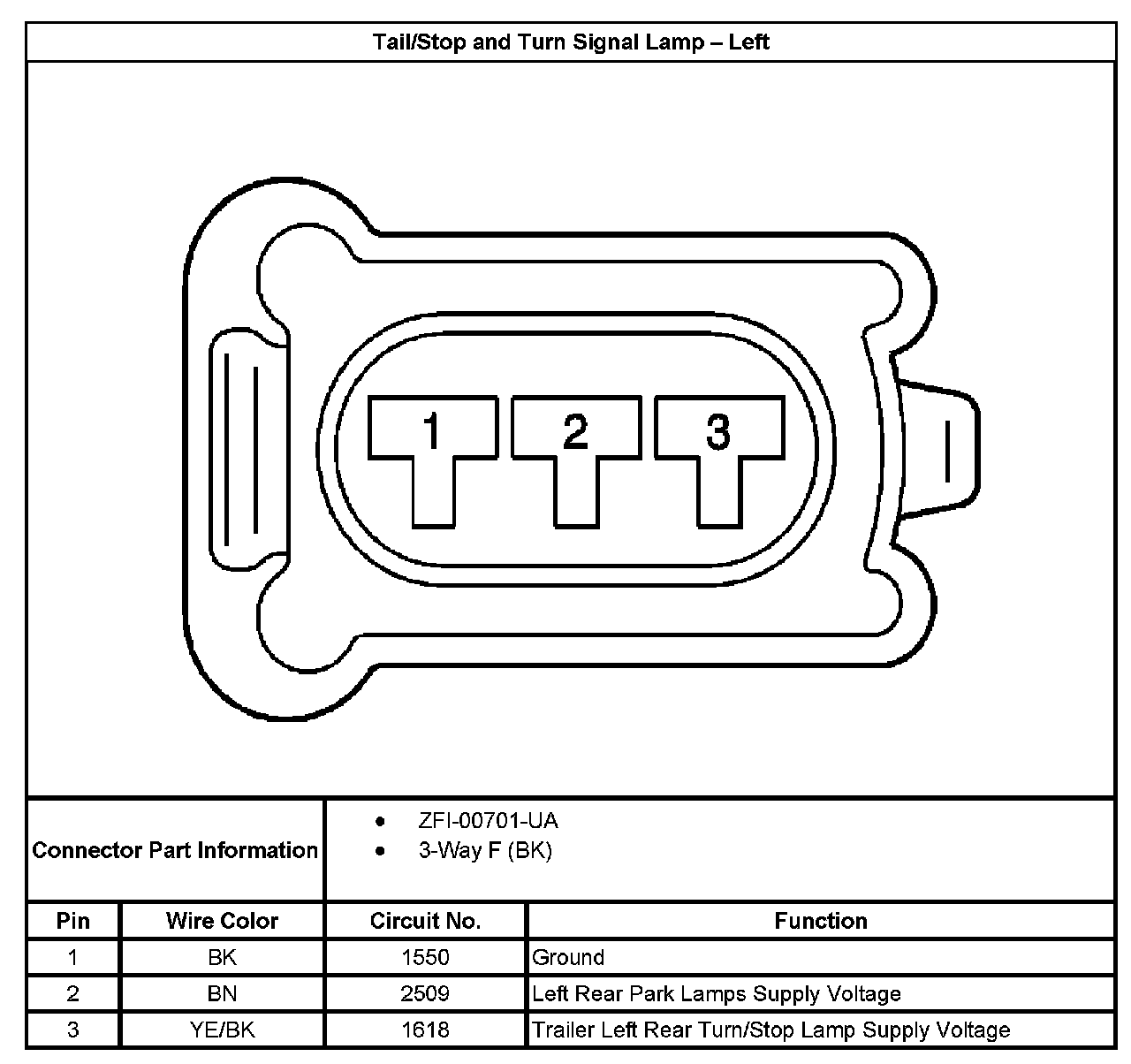

Tail/Stop And Turn Signal Lamp - Left:

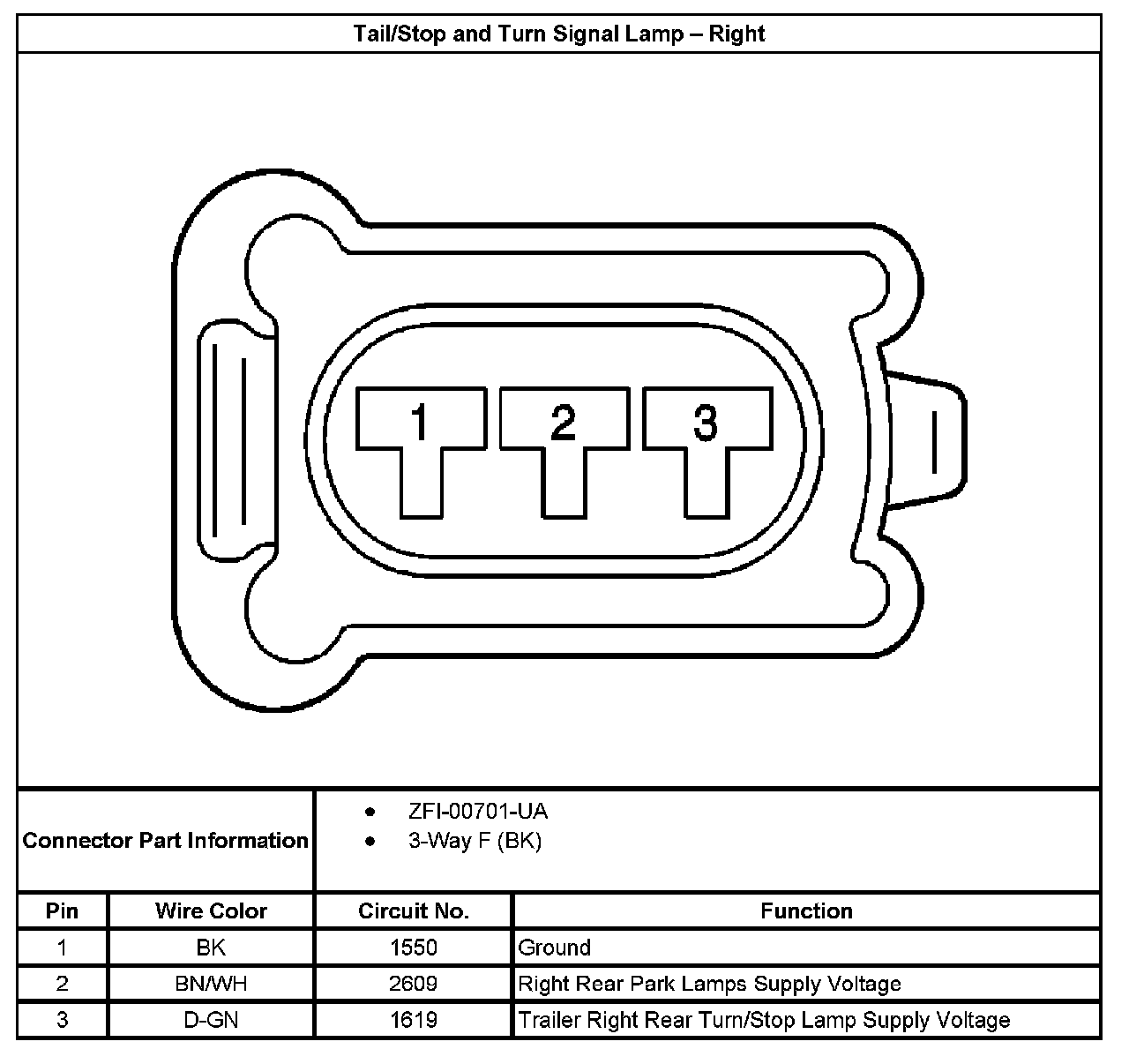

Tail/Stop and Turn Signal Lamp - Right:
