Home >> Chevrolet >> 2005 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Ground Views >> G301, G302, SP300

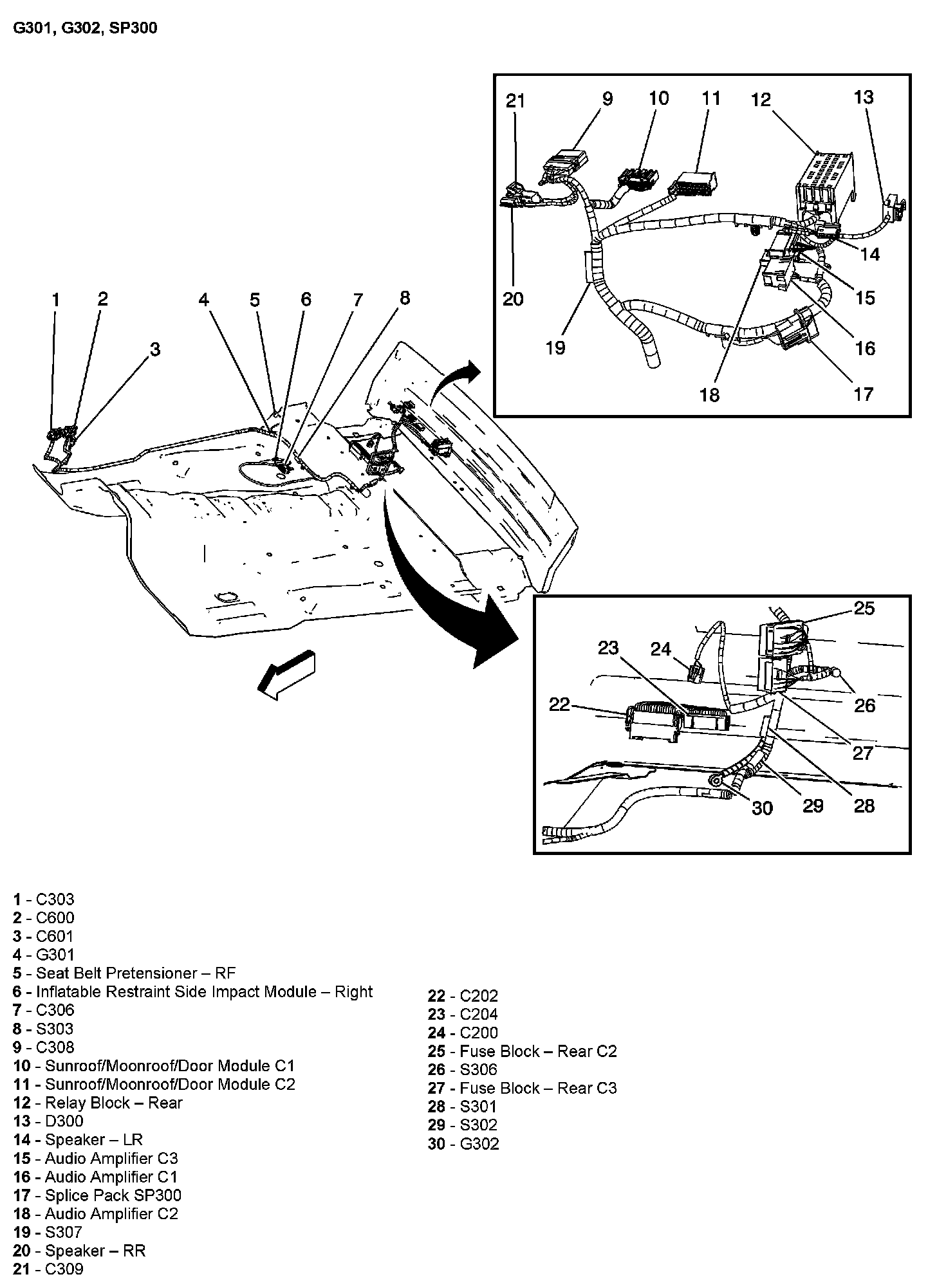

G301, G302, SP300

G301, G302, SP300:
