Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2005
>>
SSR V8-6.0L VIN H
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Instrument Panel View
Instrument Panel View

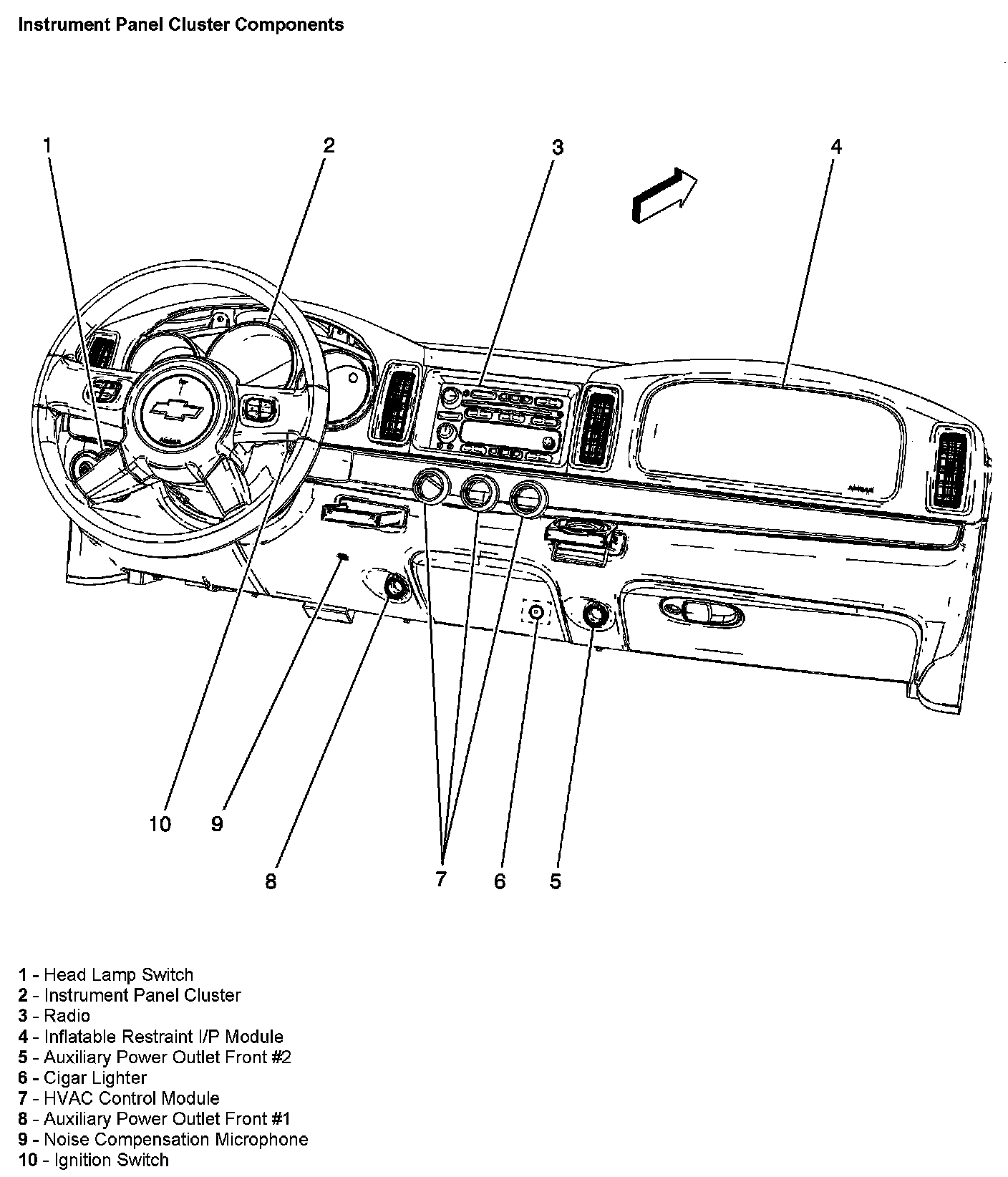

Instrument Panel Cluster Components:
