Home >> Chevrolet >> 2005 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Diagram Information and Instructions >> Electrical Symbols

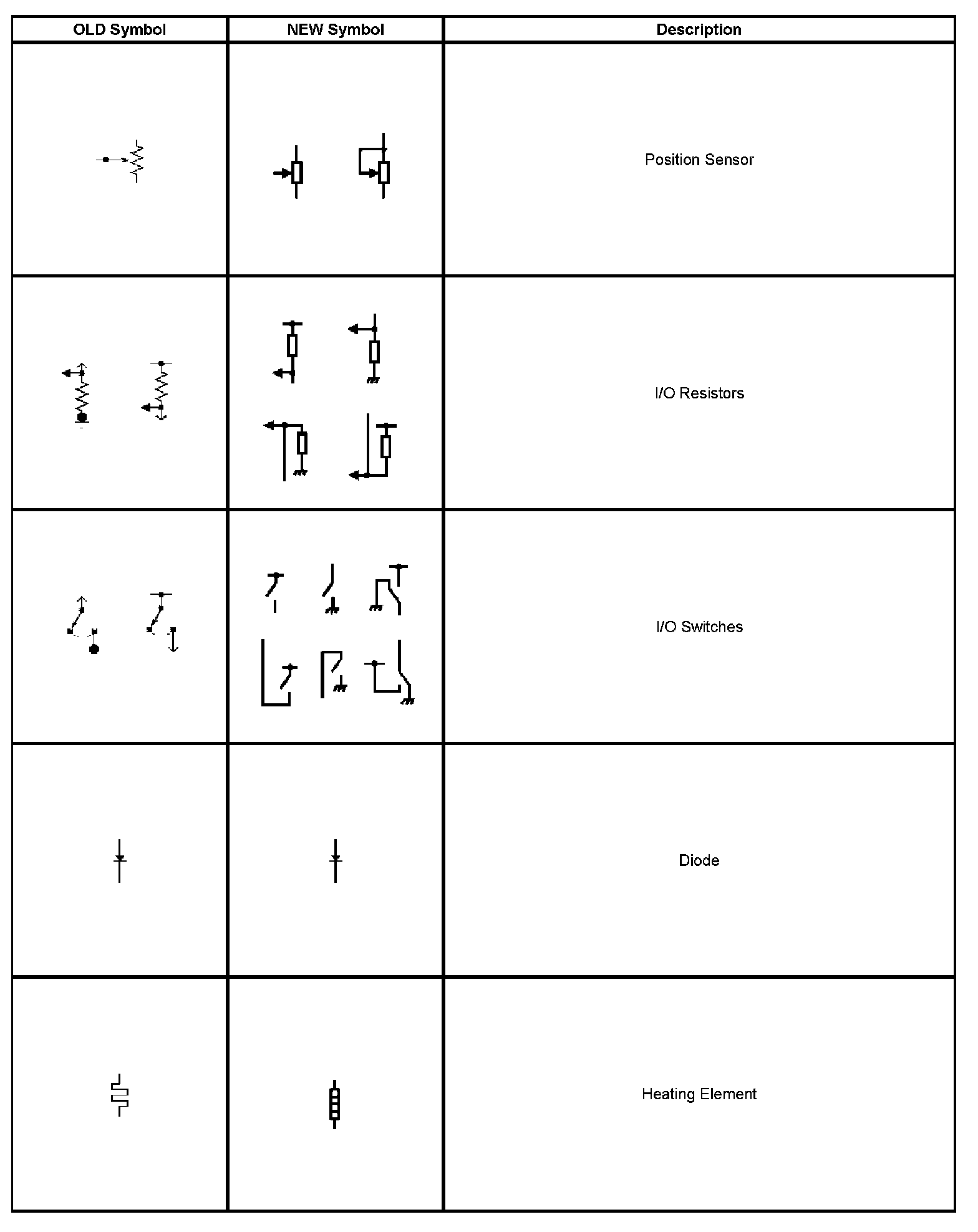

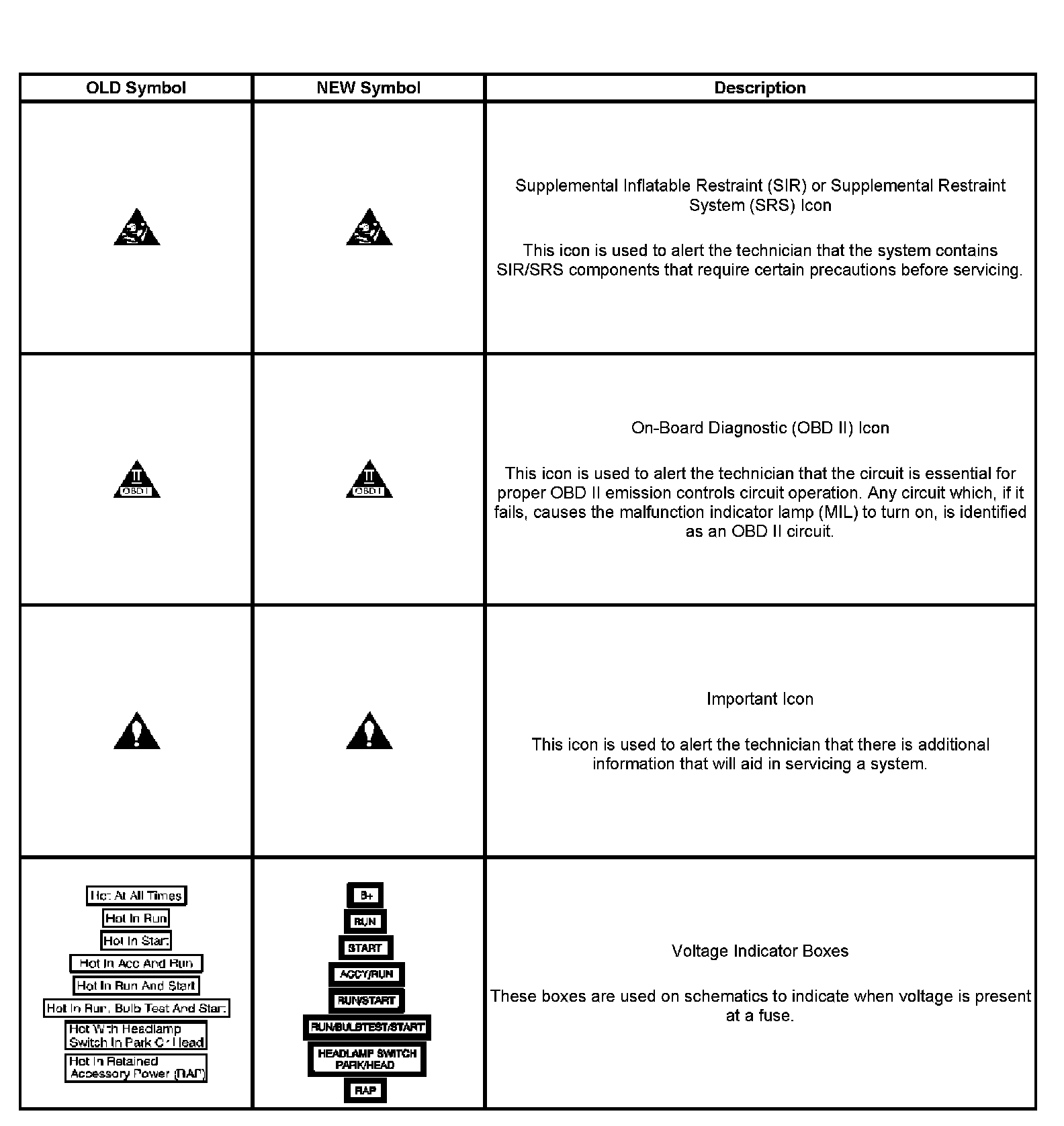

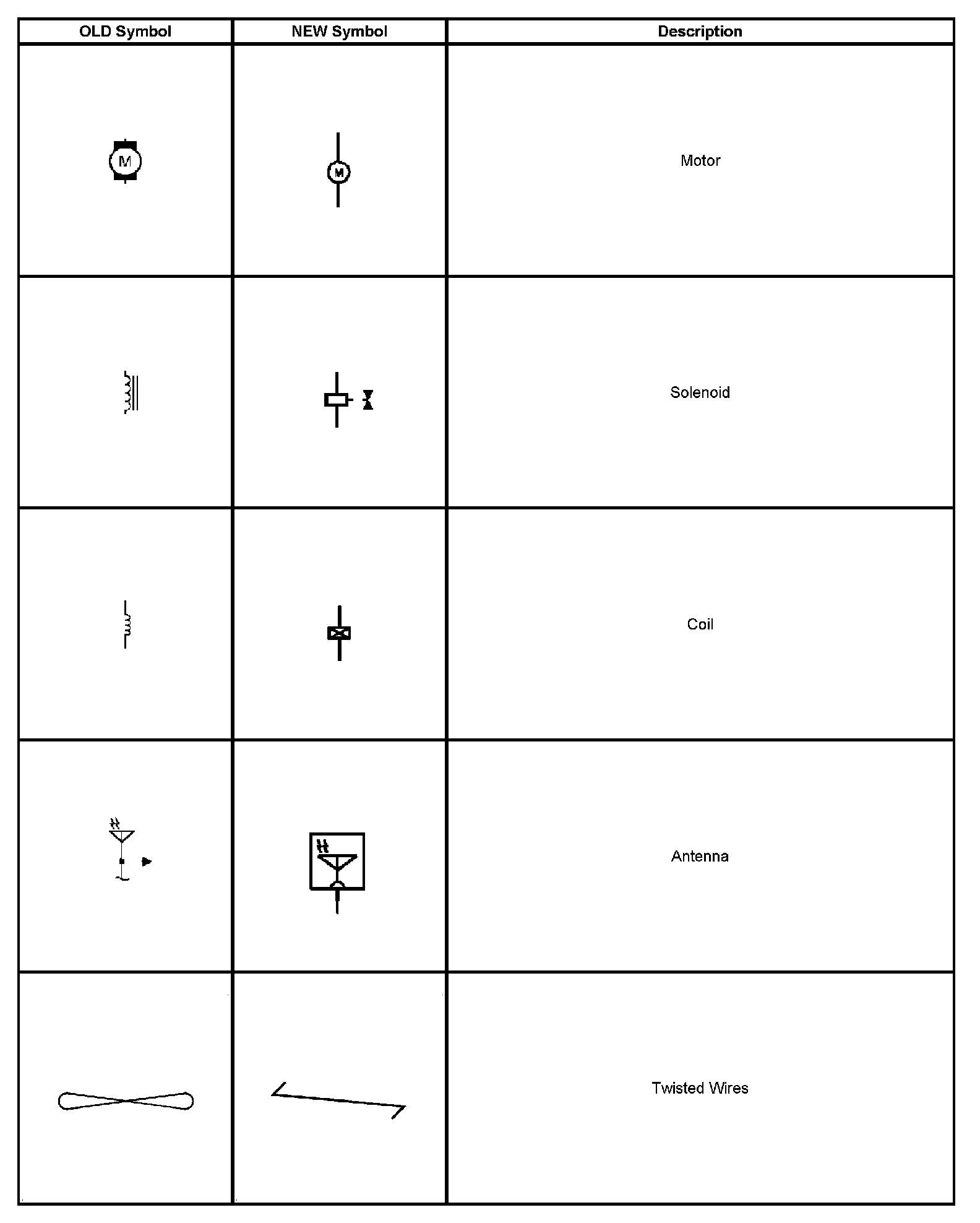

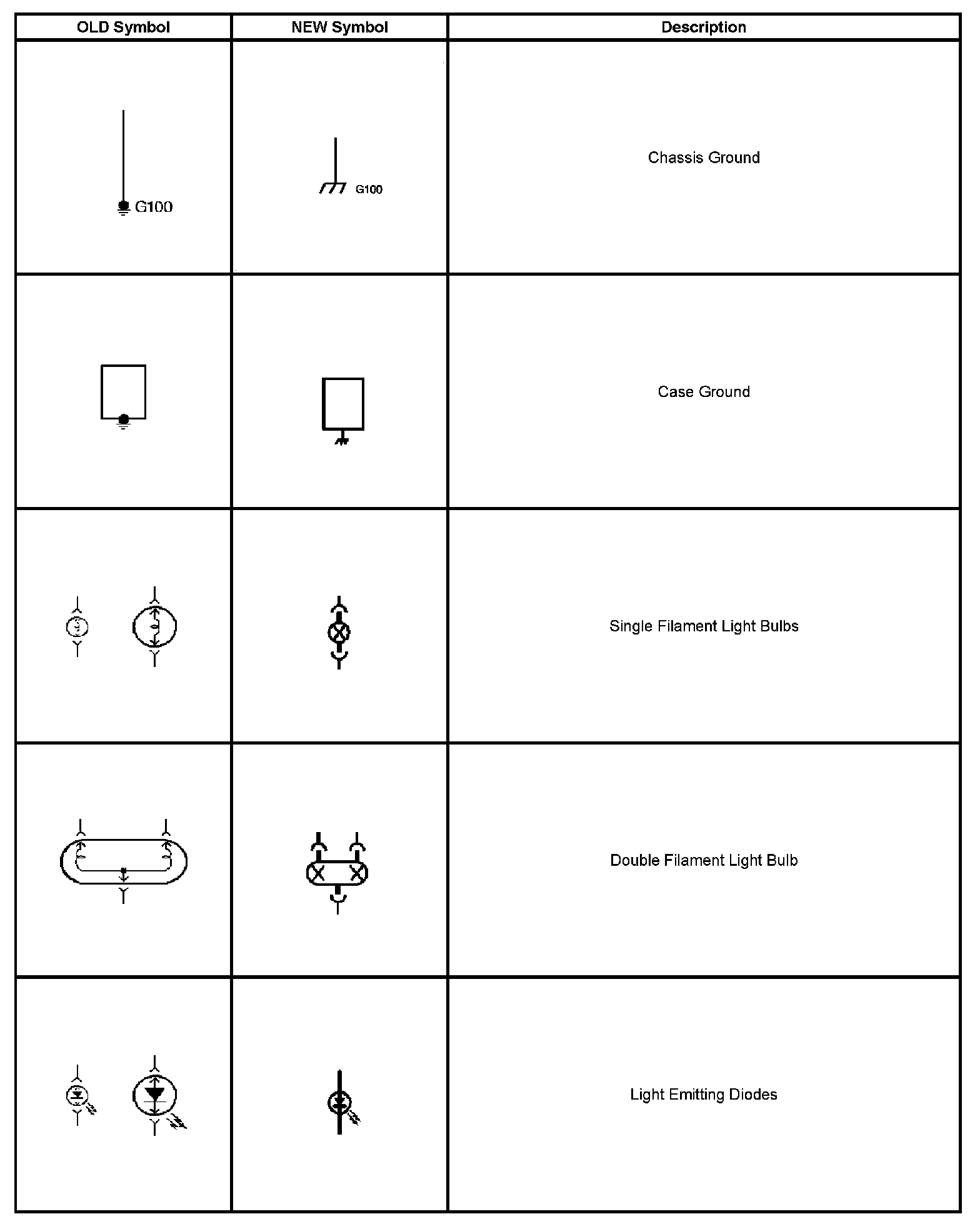

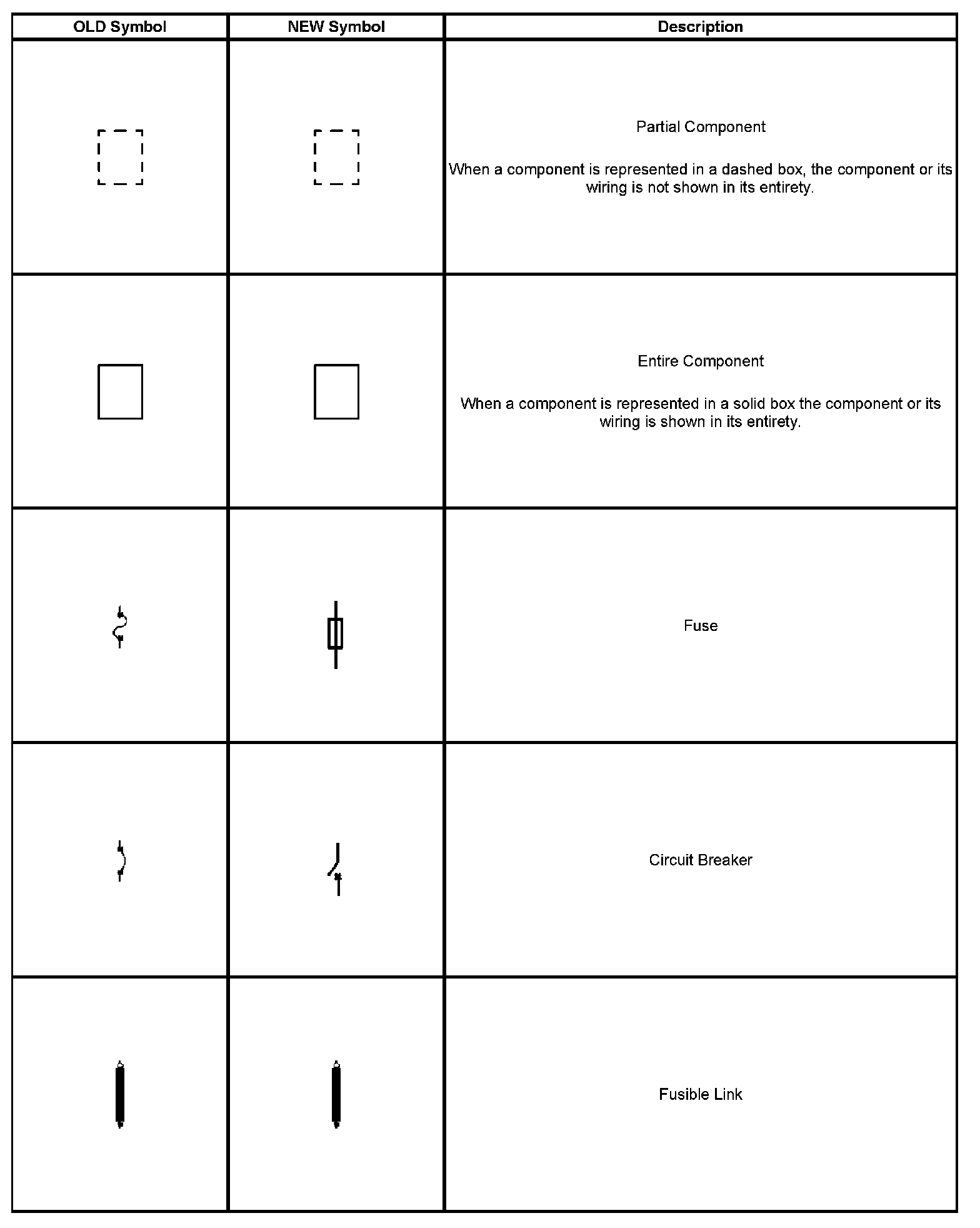

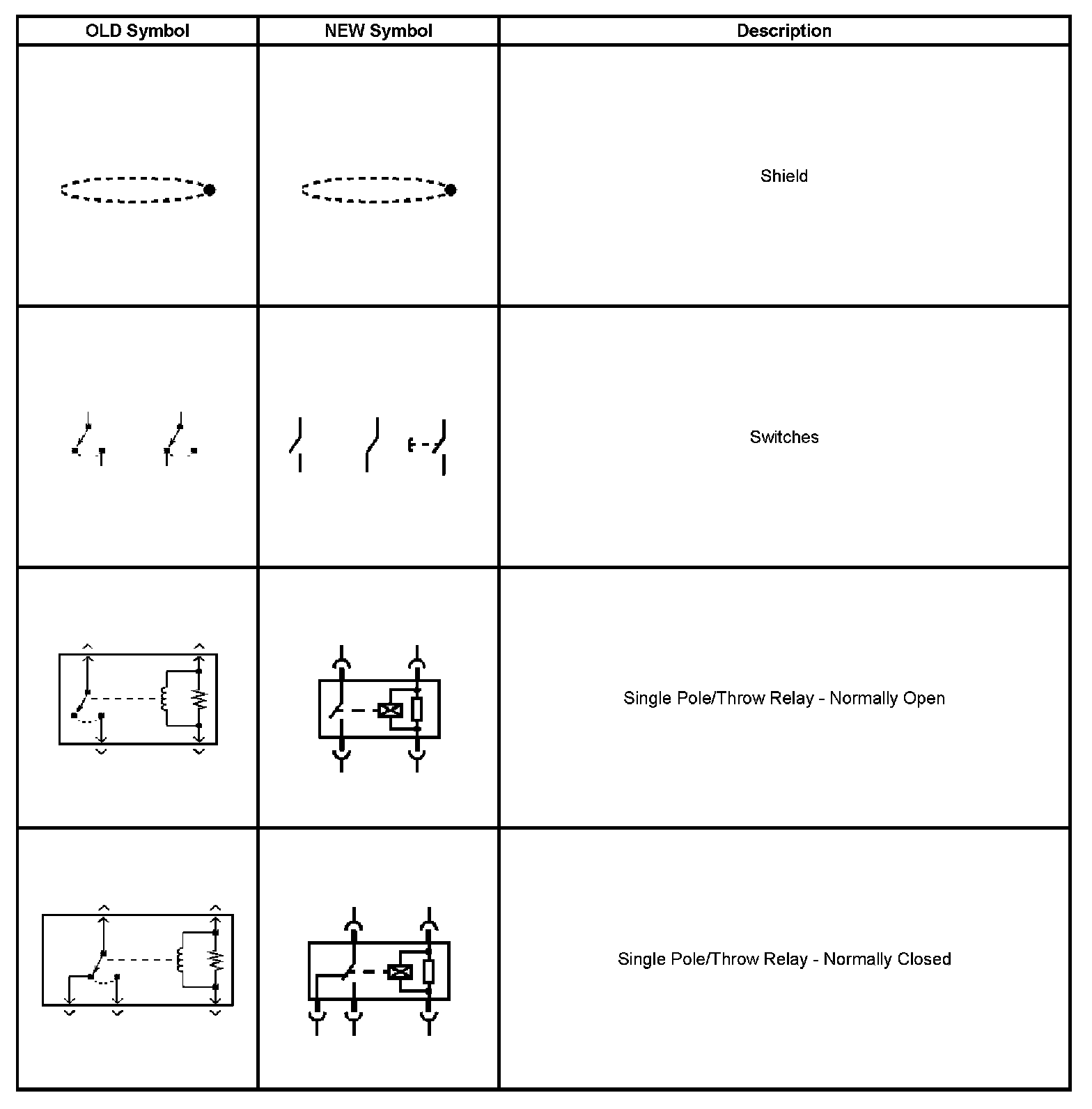

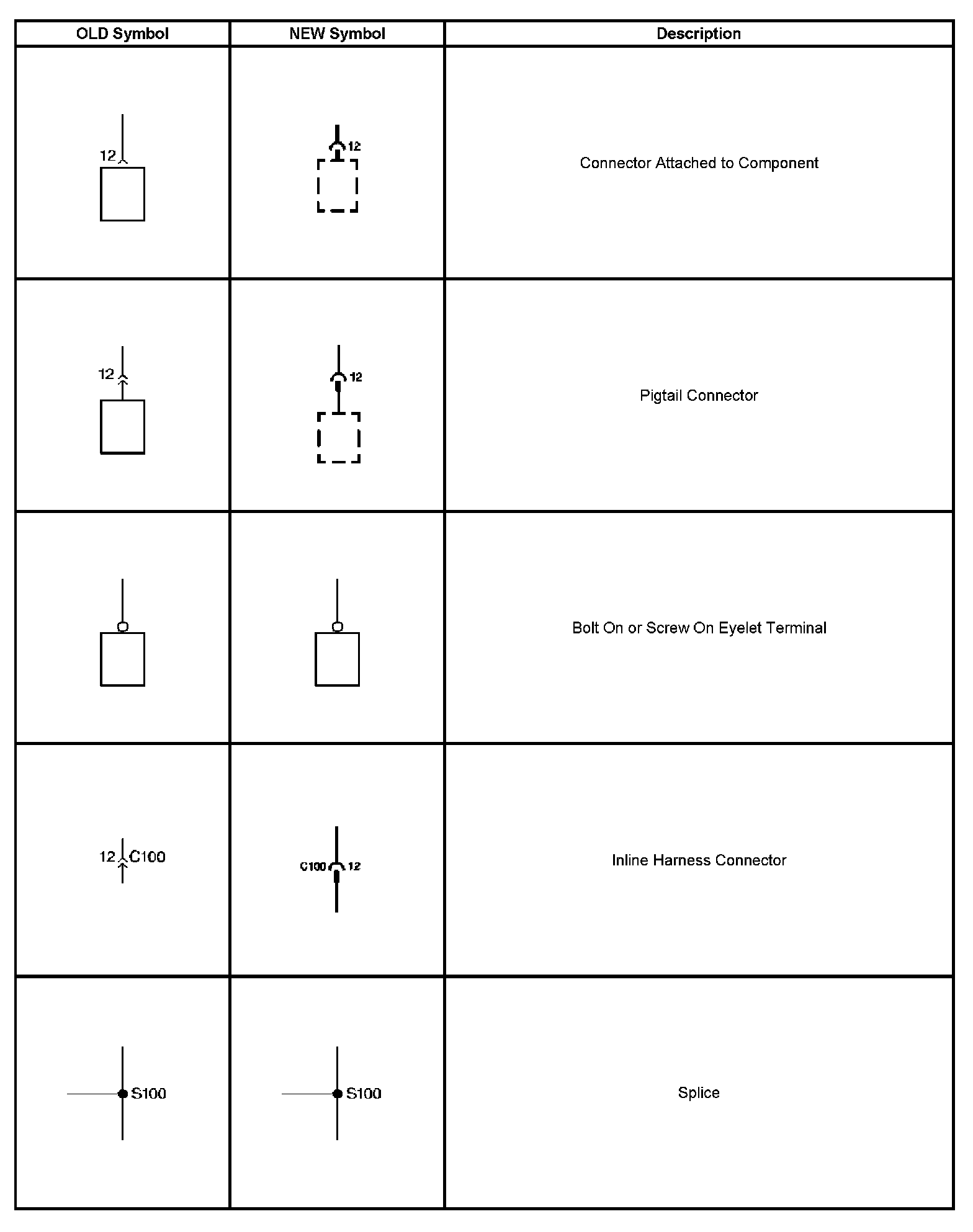

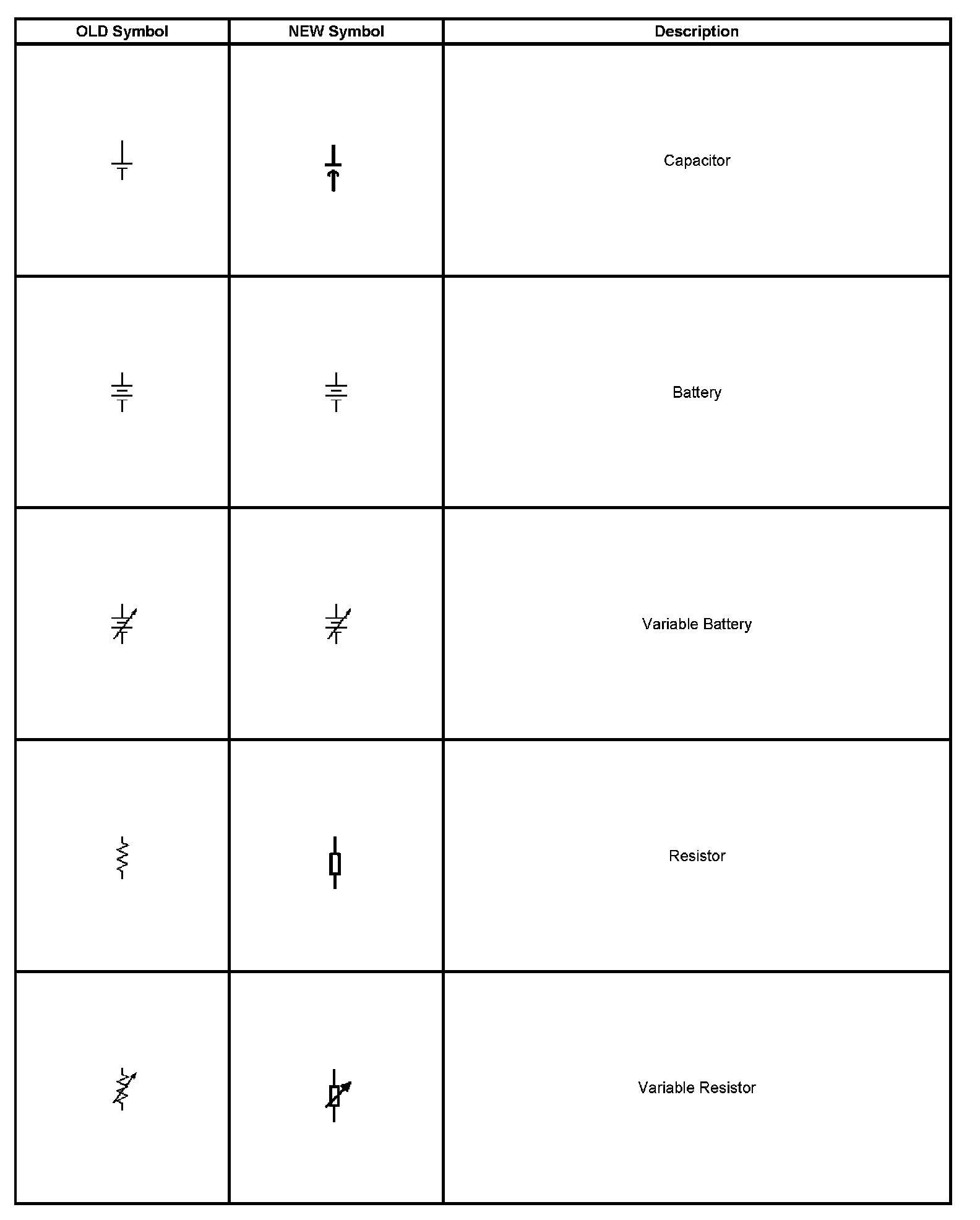

Electrical Symbols
