Rear Electrical Center or Junction Block Replacement

REAR ELECTRICAL CENTER OR JUNCTION BLOCK REPLACEMENT

REMOVAL PROCEDURE

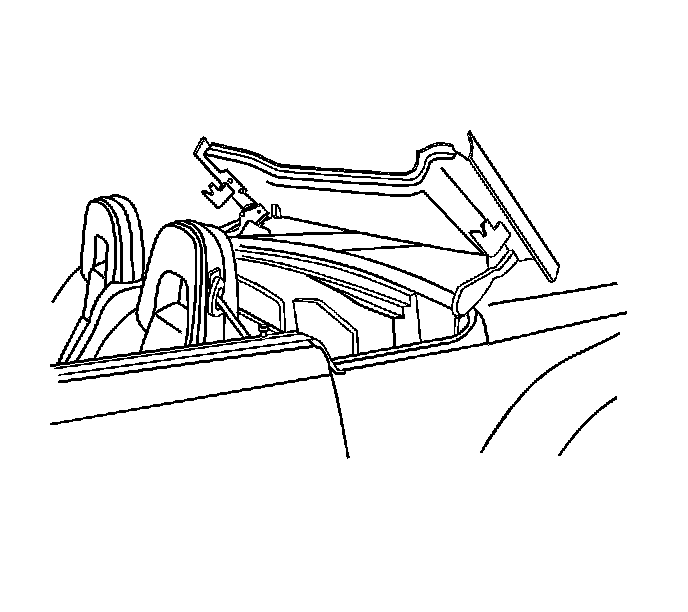

1. Cycle the folding top to reveal the body accessory compartment.
2. Turn the ignition switch to the OFF position.
3. Disconnect the negative battery cable.

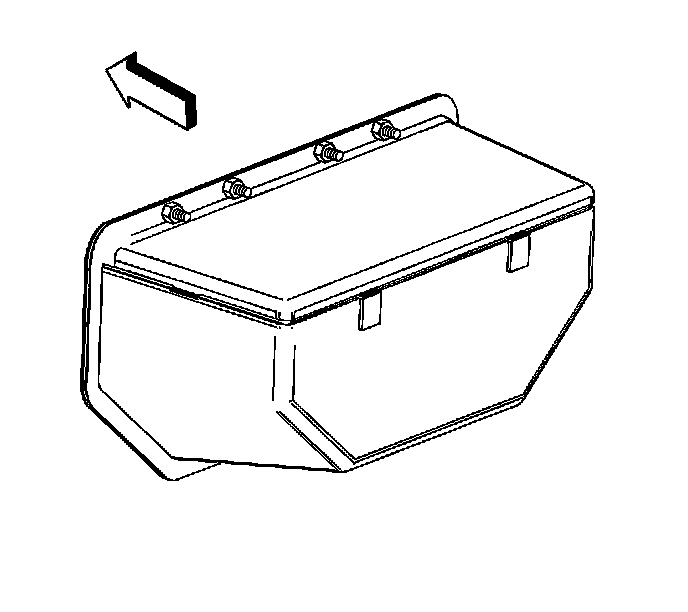

4. Loosen the nuts and remove the lid from the body accessory compartment.
5. Remove the folding top control module.

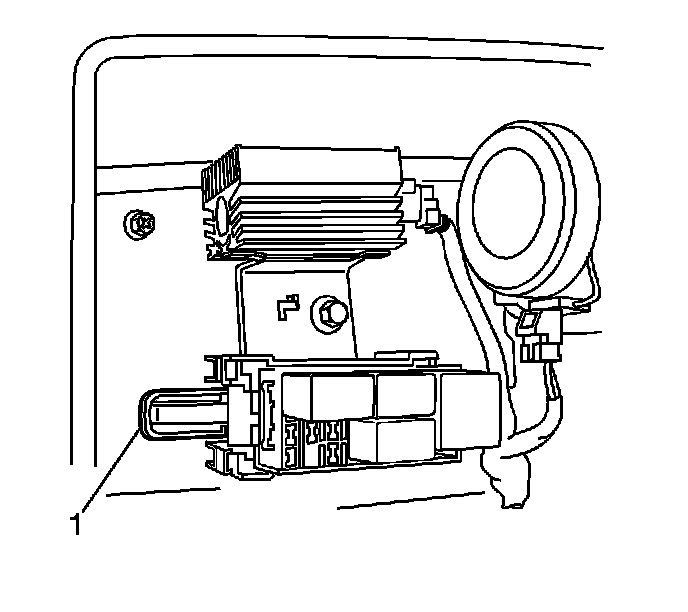

6. Depress the retaining tab (1) and remove the rear electrical center from the intermediate bracket.
7. Disconnect the electrical connector from the rear electrical center.
8. Remove the rear electrical center for the vehicle.

INSTALLATION PROCEDURE




1. Position the rear electrical center near the mounting location.
2. Connect the electrical connector to the rear electrical center.
3. Install the rear electrical center to the intermediate bracket ensuring the retaining tab (1) is fully seated.




4. Install the lid to the body accessory compartment.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the nuts to 7.0 N.m (62 lb in).

5. Connect the negative battery cable.
6. Close the folding top.
