Home >> Chevrolet >> 2005 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Diagrams >> Inflatable Restraint I/P Module

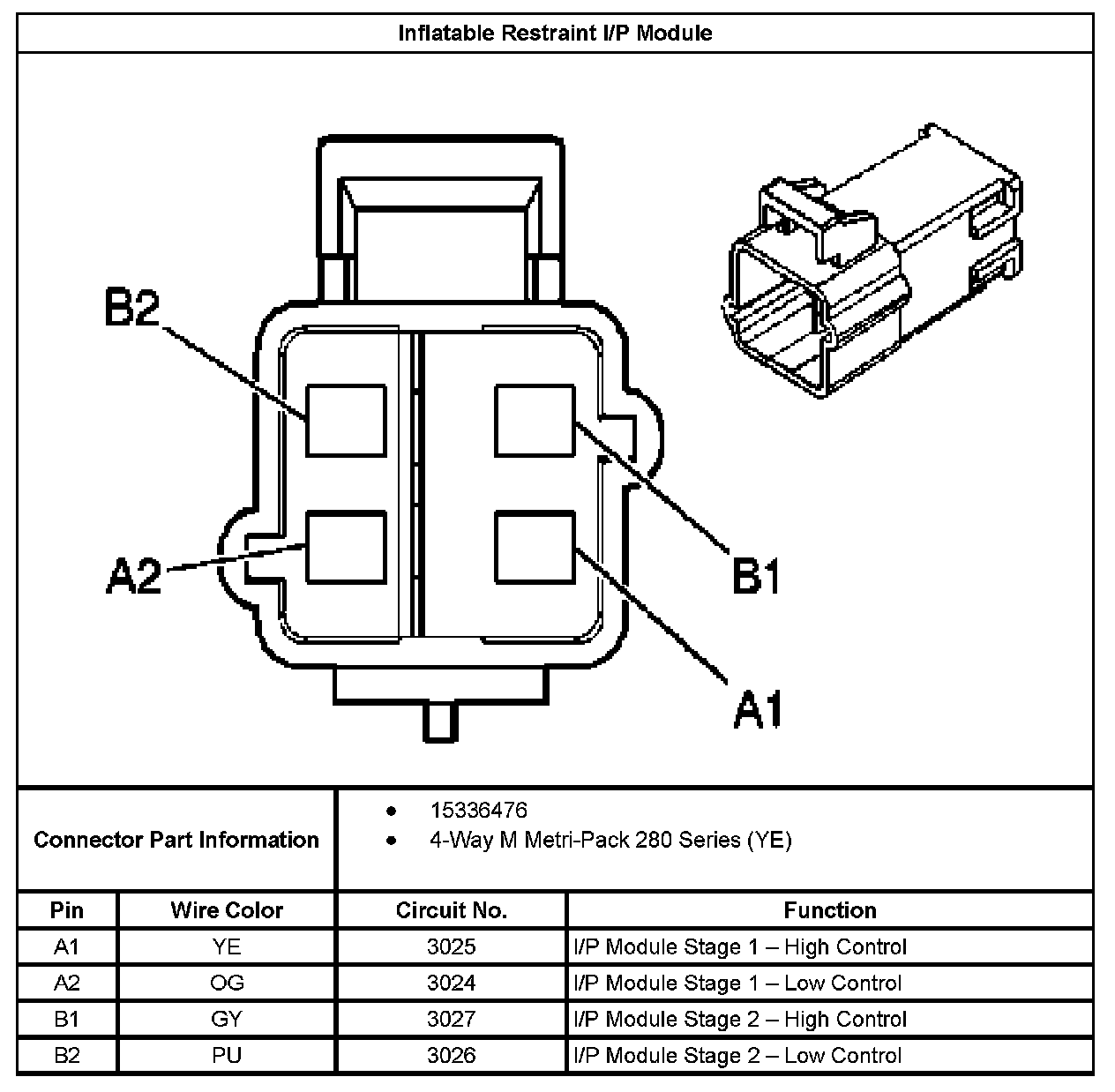

Inflatable Restraint I/P Module

Inflatable Restraint I/P Module:
