Electronic Frontal Sensor (EFS)

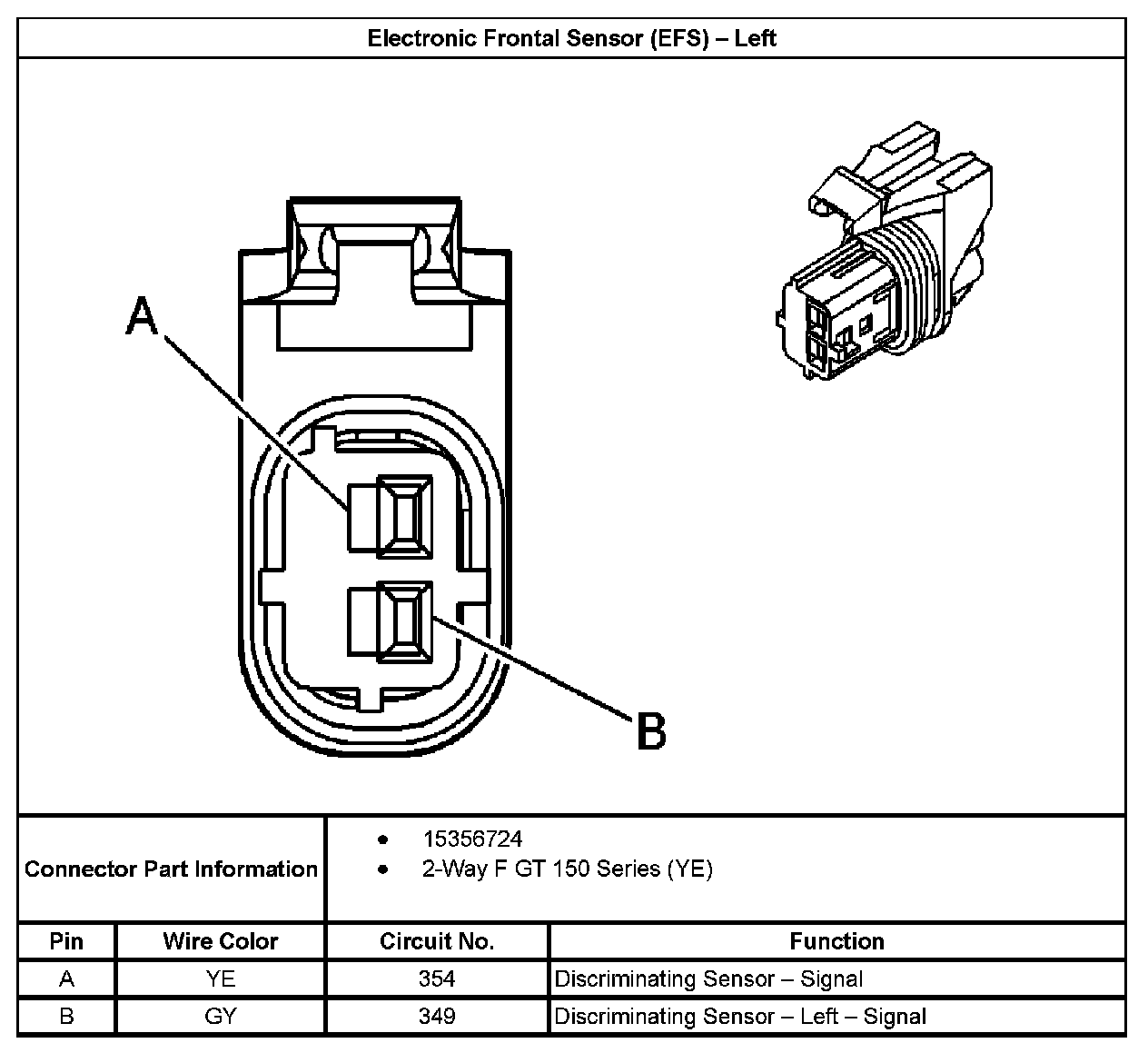

Electronic Frontal Sensor (EFS) - Left:

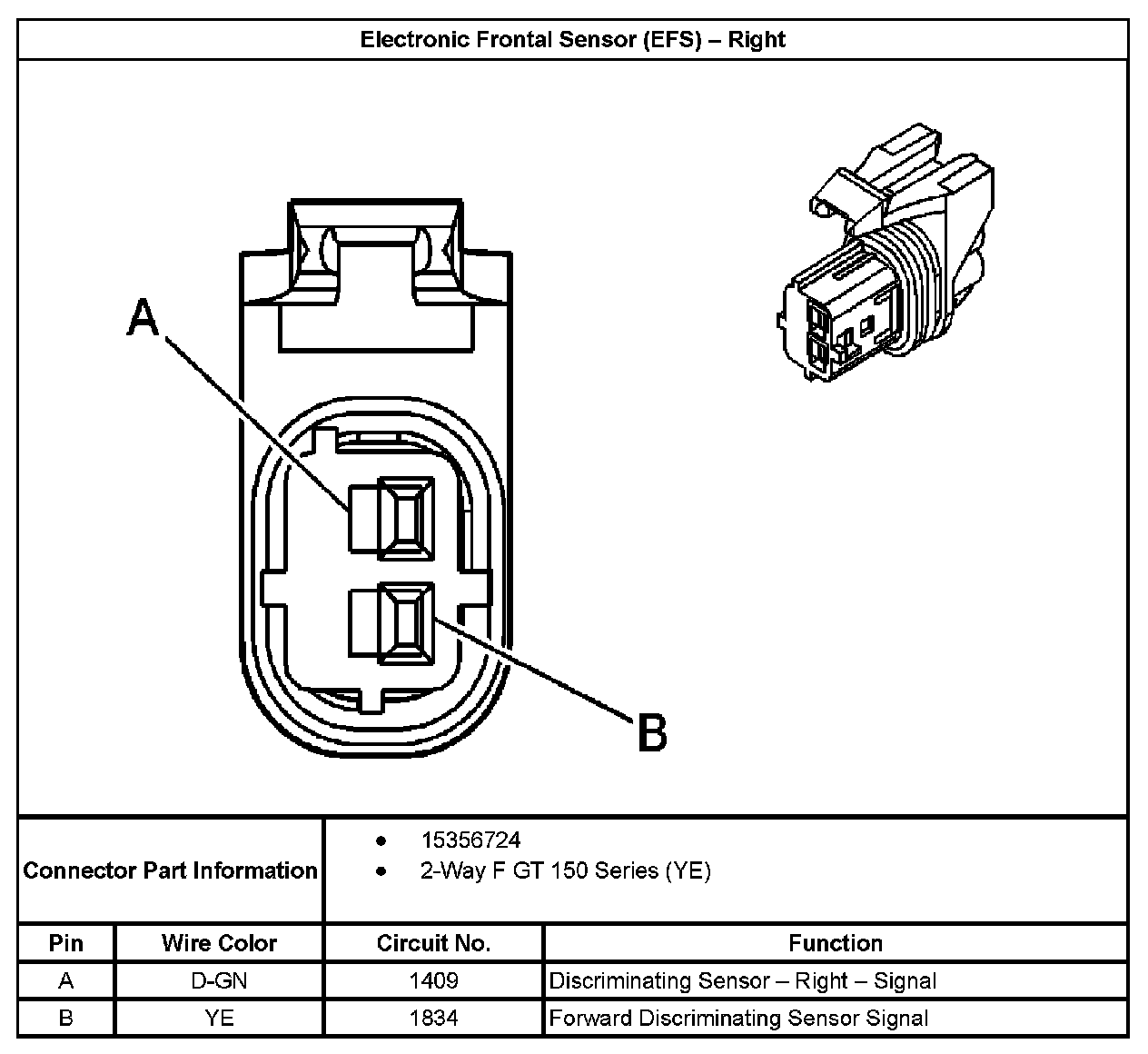

Electronic Frontal Sensor (EFS) - Right:
