Headlamp Switch: Locations

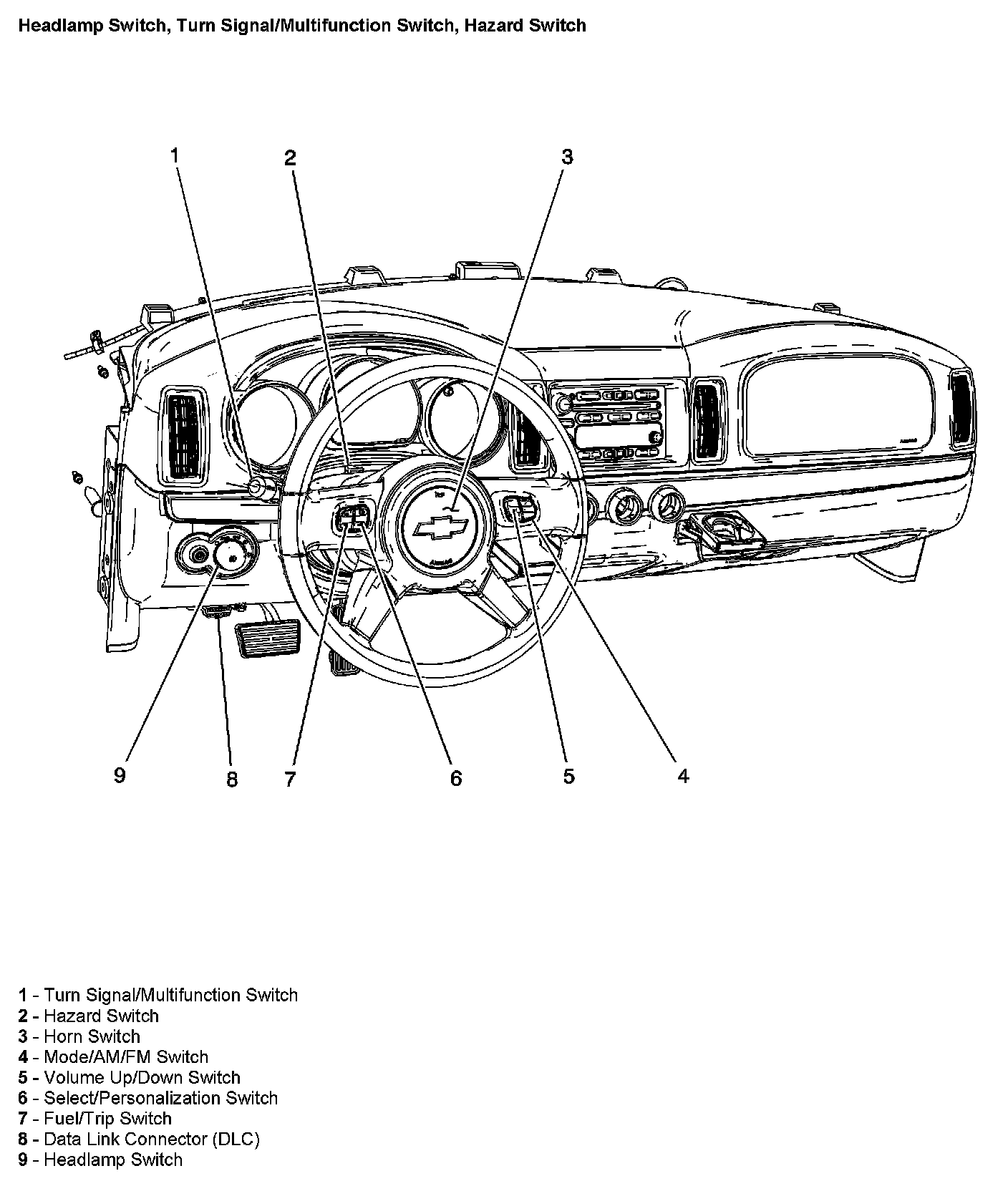

Headlamp Switch, Turn Signal/Multifunction Switch, Hazard Switch:



Left Side of I/P:
