Console Storage Bin Replacement - Pro

Console Storage Bin Replacement (Pro)

Removal Procedure

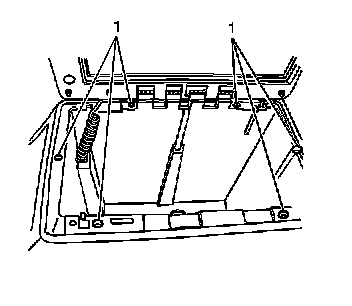

1. Open the console lid and remove the 6 retaining screws (1).

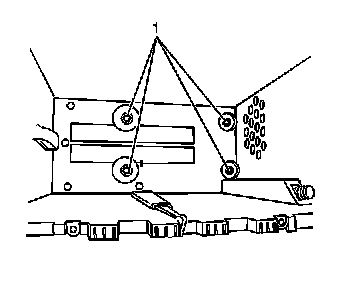

2. Remove the 4 console bin retaining bolts (1).
3. Lift the console bin and lid assembly in order to pull out the electric cord.
4. Remove the console bin and lid assembly from the console.

Installation Procedure

1. Place the console bin and lid assembly over the console in order to route the electrical cord to the console bin.
2. Install the console bin and lid assembly to the console.

Notice: Refer to Fastener Notice in Service Precautions.

Important: Ensure the rear bolts has the bigger washer.




3. Install the 4 console bin retaining bolts (1).

Tighten the 4 bolts to 3.5 N.m (35 lb in).

Important: Ensure the longer screw is installed in the front of the console bin.




4. Install the 6 retaining screws (1).

Tighten the 6 screws to 1.6 N.m (14 lb in).
