Engine Controls Diagram 3

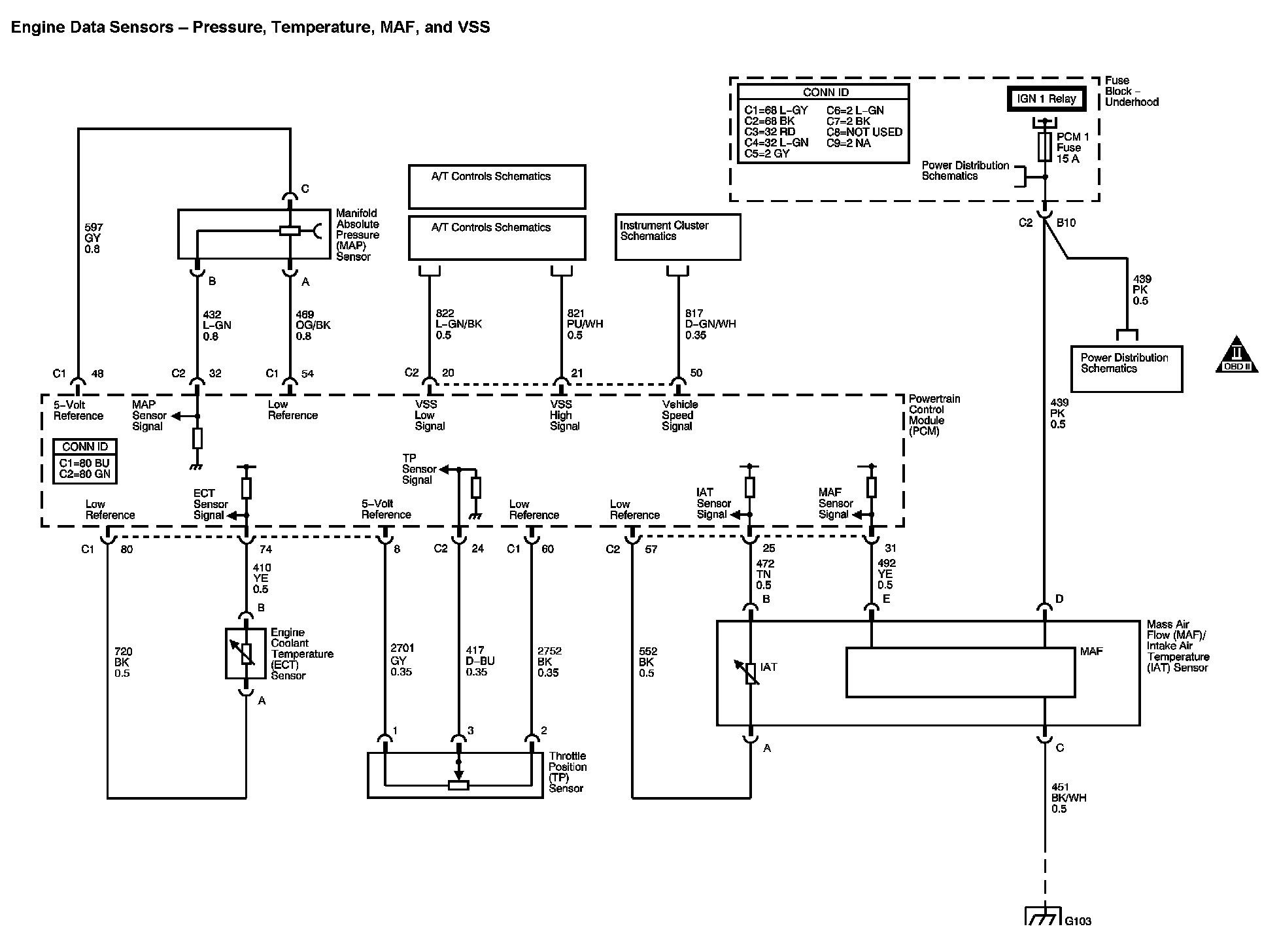

Engine Controls Diagram 3:

Next Diagram Engine Controls Diagram 4

Previous Diagram Engine Controls Diagram 2

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
