System Specifications

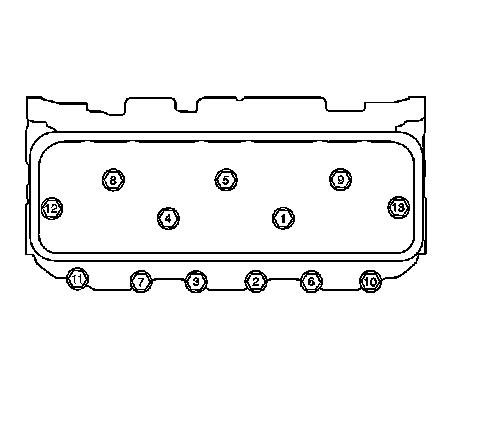

Cylinder Head Bolt - Preferred Method
^ All Bolts First Pass in Sequence 30 Nm (22 ft. lbs.)
^ Long Bolts Final Pass in Sequence 75 degrees
^ Medium Bolts Final Pass in Sequence 65 degrees
^ Short Bolts Final Pass in Sequence 55 degrees

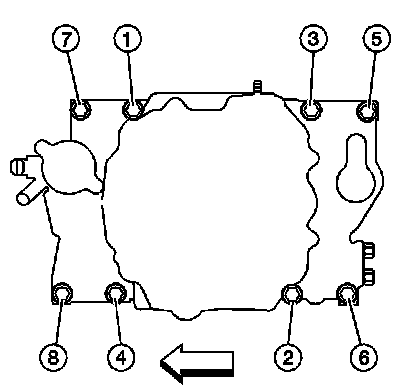

Lower Intake Manifold Bolt
^ First Pass in Sequence 3 Nm (27 inch lbs.)
^ Second Pass in Sequence 12 Nm (106 inch lbs.)
^ Final Pass in Sequence 15 Nm (11 ft. lbs.)
Upper Intake Manifold Stud
^ First Pass 5 Nm (44 inch lbs.)
^ Final Pass 9 Nm (80 inch lbs.)
Camshaft Retainer Bolt 12 Nm (106 inch lbs.)
Camshaft Sprocket Bolt 25 Nm (18 ft. lbs.)
Exhaust Manifold Bolt/Stud
^ First Pass 15 Nm (11 ft. lbs.)
^ Final Pass 30 Nm (22 ft. lbs.)

Cylinder Head Deck Surface Flatness 0.050-0.152 mm (0.002-0.006 inch)
