Starter Relay: Locations

STARTER RELAY

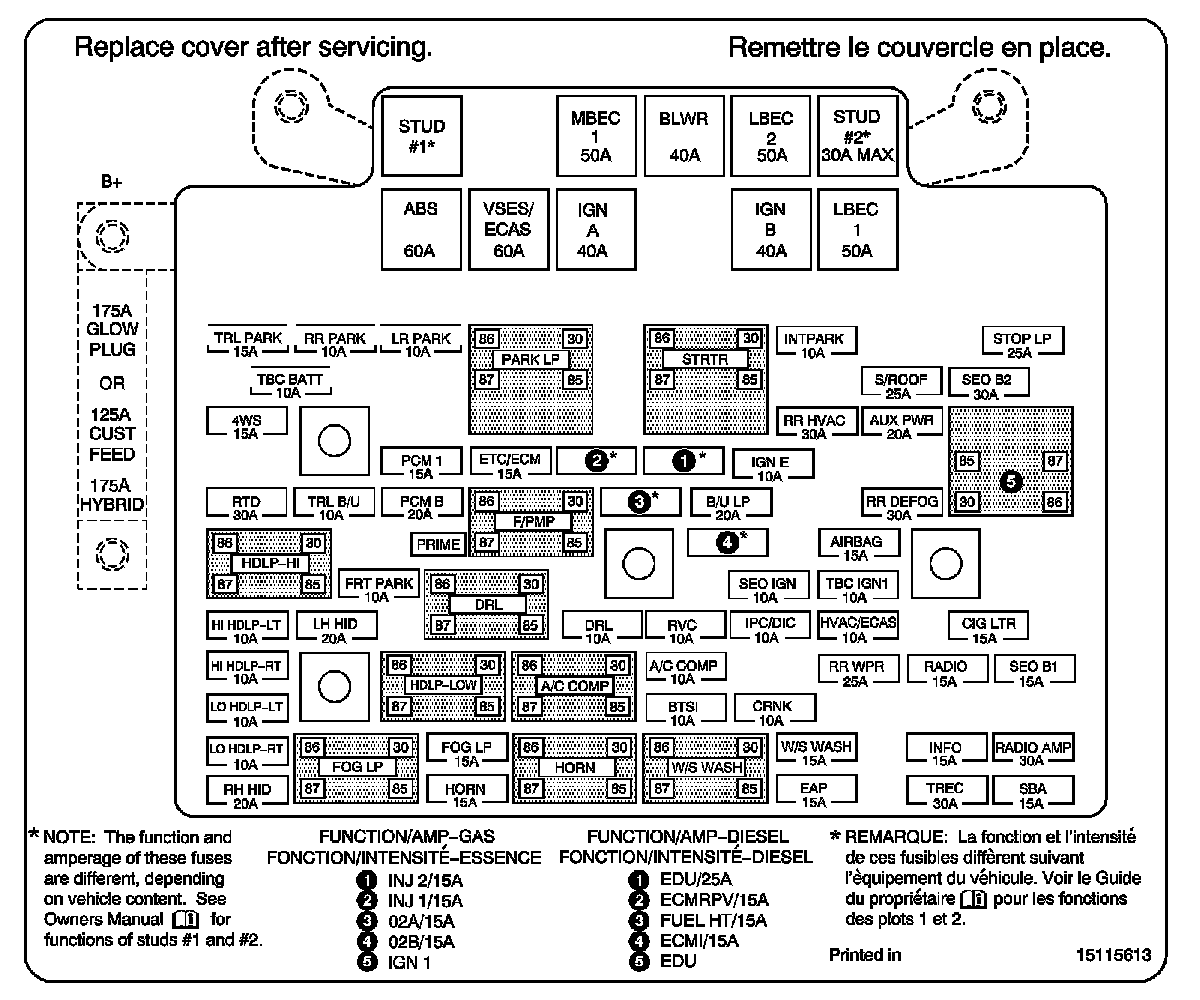

Fuse Block - Underhood Label:

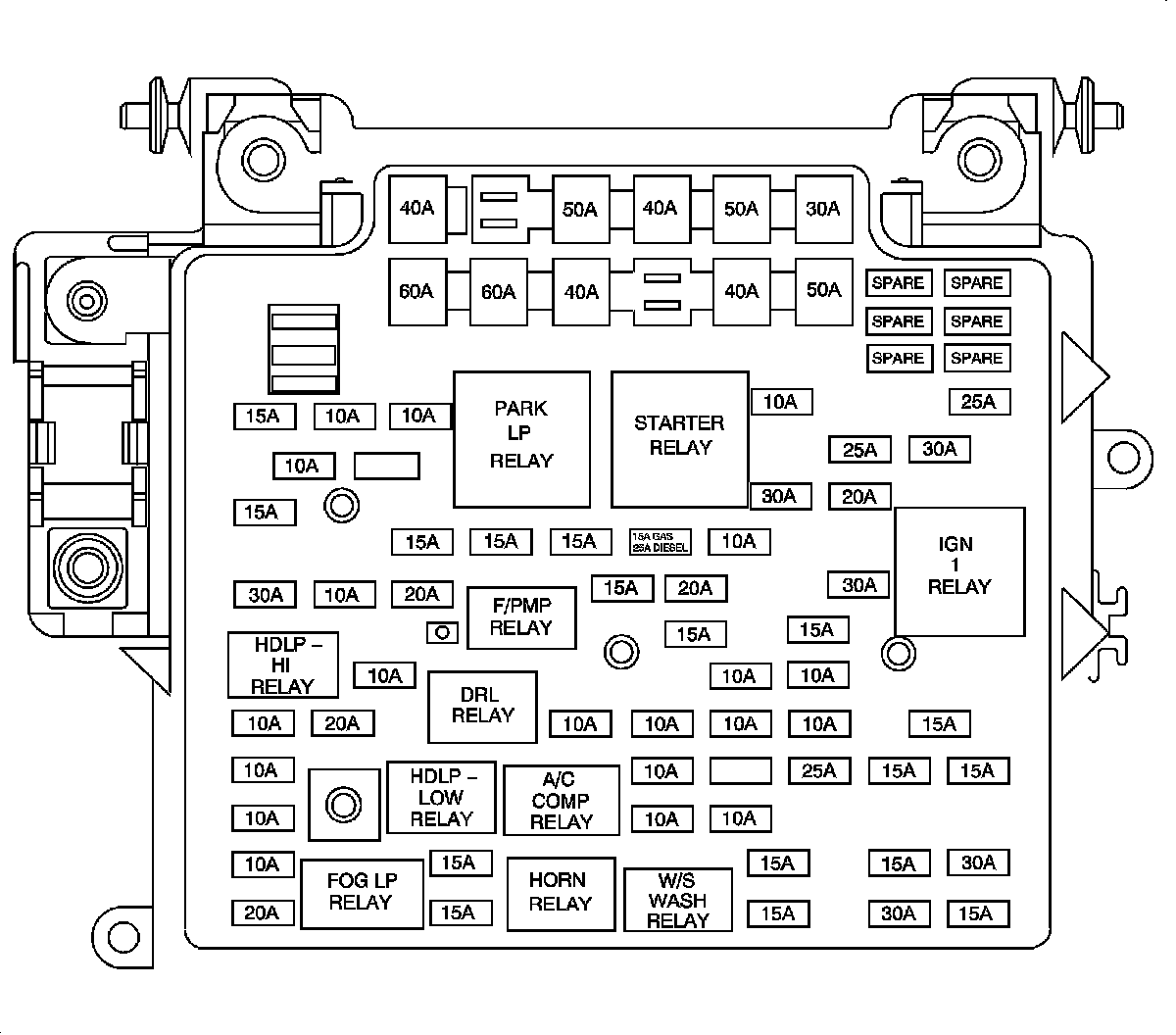

Fuse Block - Underhood Top View:

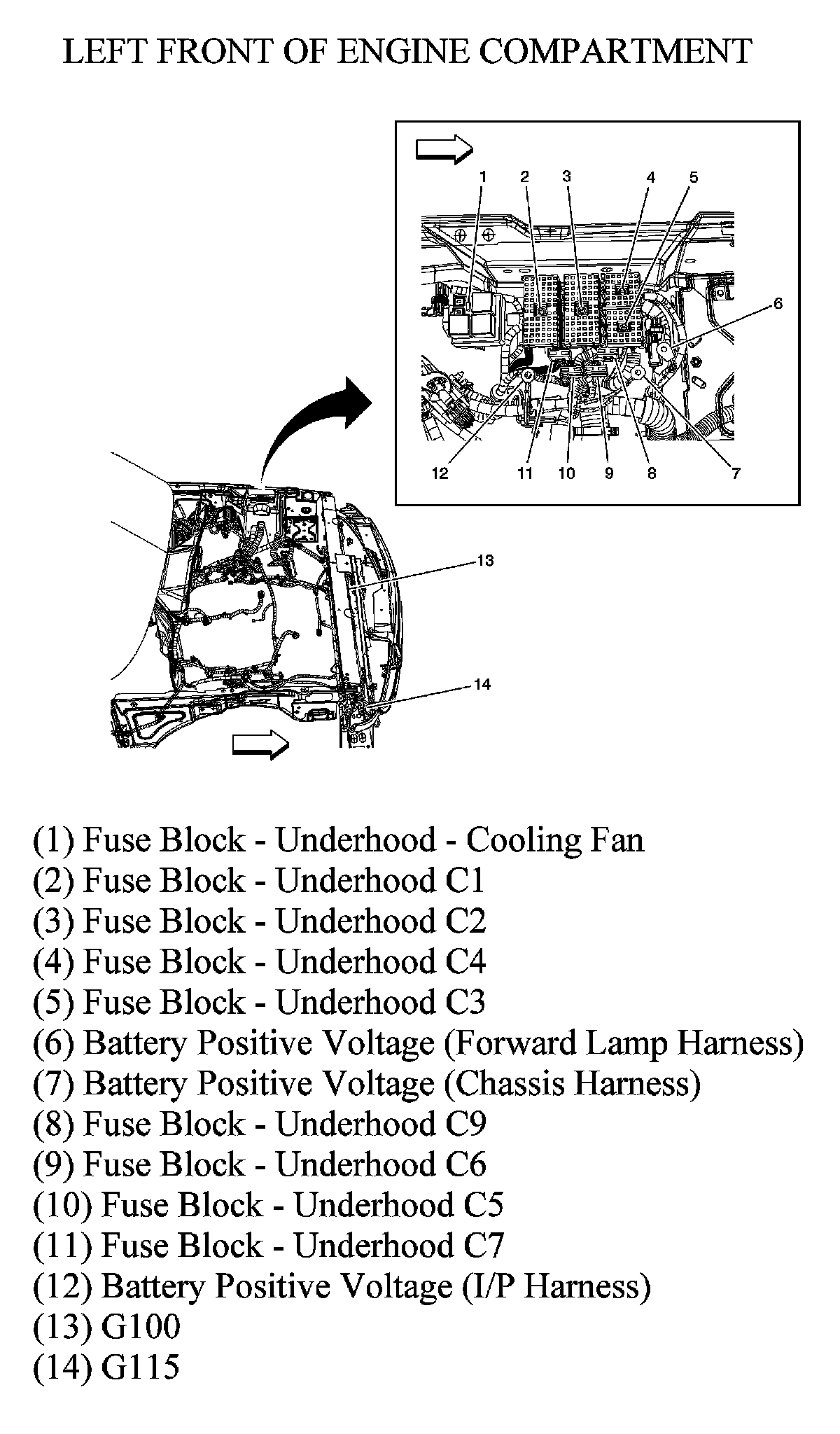

The Starter Relay is located on the Fuse Block - Underhood. The Fuse Block - Underhood is located on the left side of the engine compartment to the rear of the battery.
