84. Transmission Oil Pan Installation

Transmission Oil Pan Installation

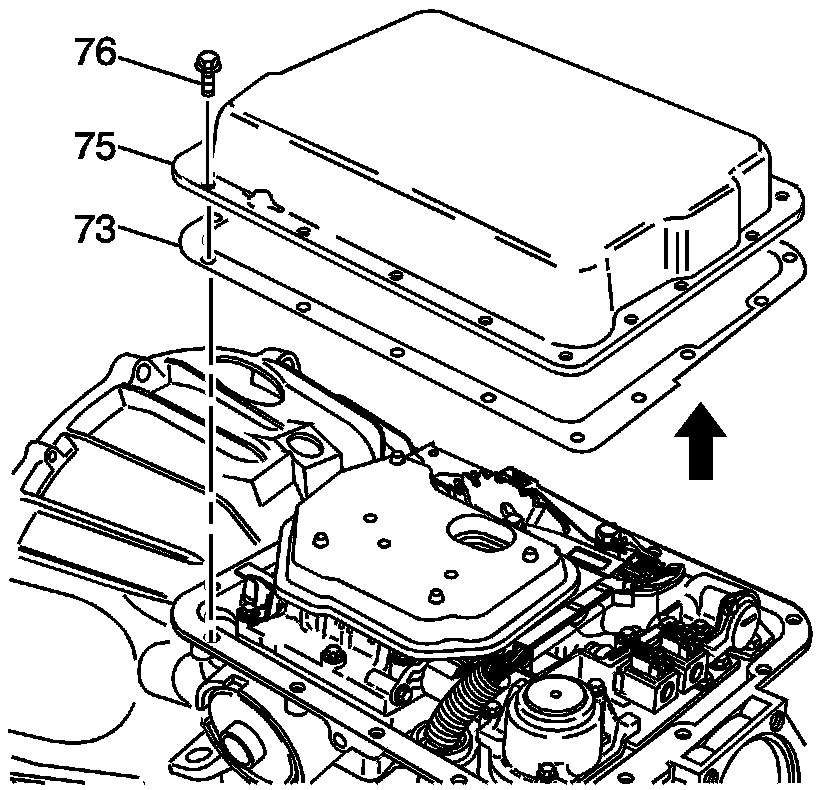

1. Place the transmission oil pan gasket (73) on the case.
2. Place the transmission oil pan (75) on the case.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install all of the transmission oil pan screws (76).
^ Tighten the screws to 16 Nm (11.8 lb ft).
