9. Synchronizers Disassemble (Reverse Speed Gear)

Synchronizers Disassemble (Reverse Speed Gear)





Important:
^ Only disassemble the synchronizer sleeve from the synchronizer hub if there is a suspected gear shift concern.
^ For installation alignment, scribe an alignment mark on the synchronizer hubs and synchronizer sleeves before disassembling.
^ Mark the synchronizers clutch gears and the blocking rings with the corresponding gear, for correct diagnostic inspections.
^ Install the synchronizer components in the same location, if reusing.

1. Lay the reverse speed gear assembly on a shop towel, with the reverse gear down.
2. Cover with the shop towel.

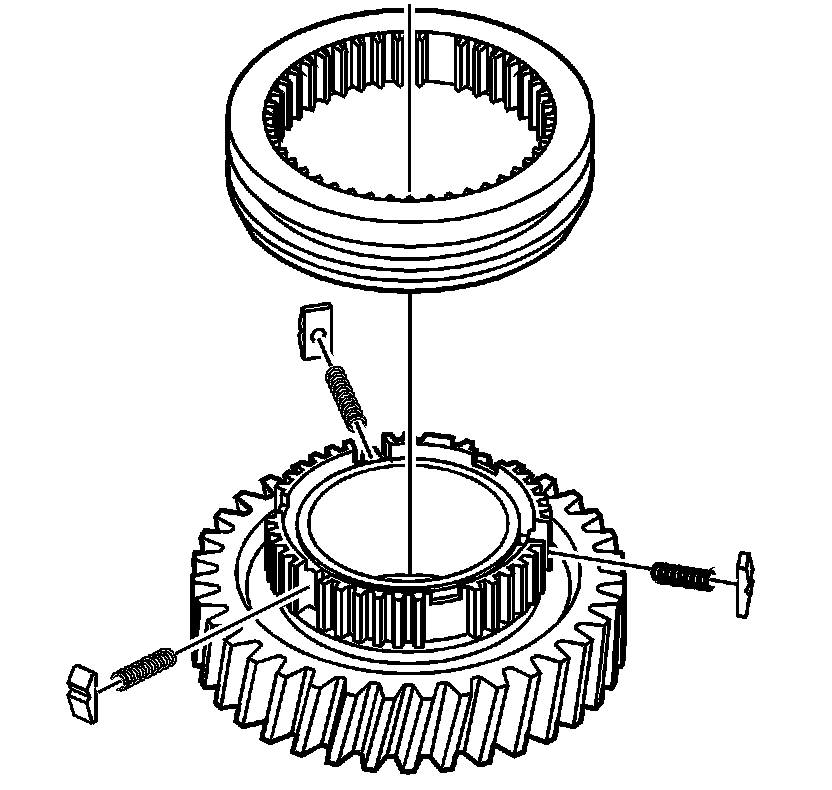

3. Slide the synchronizer sleeve off the synchronizer hub.
4. Remove the 3 springs and the 3 inserts.
