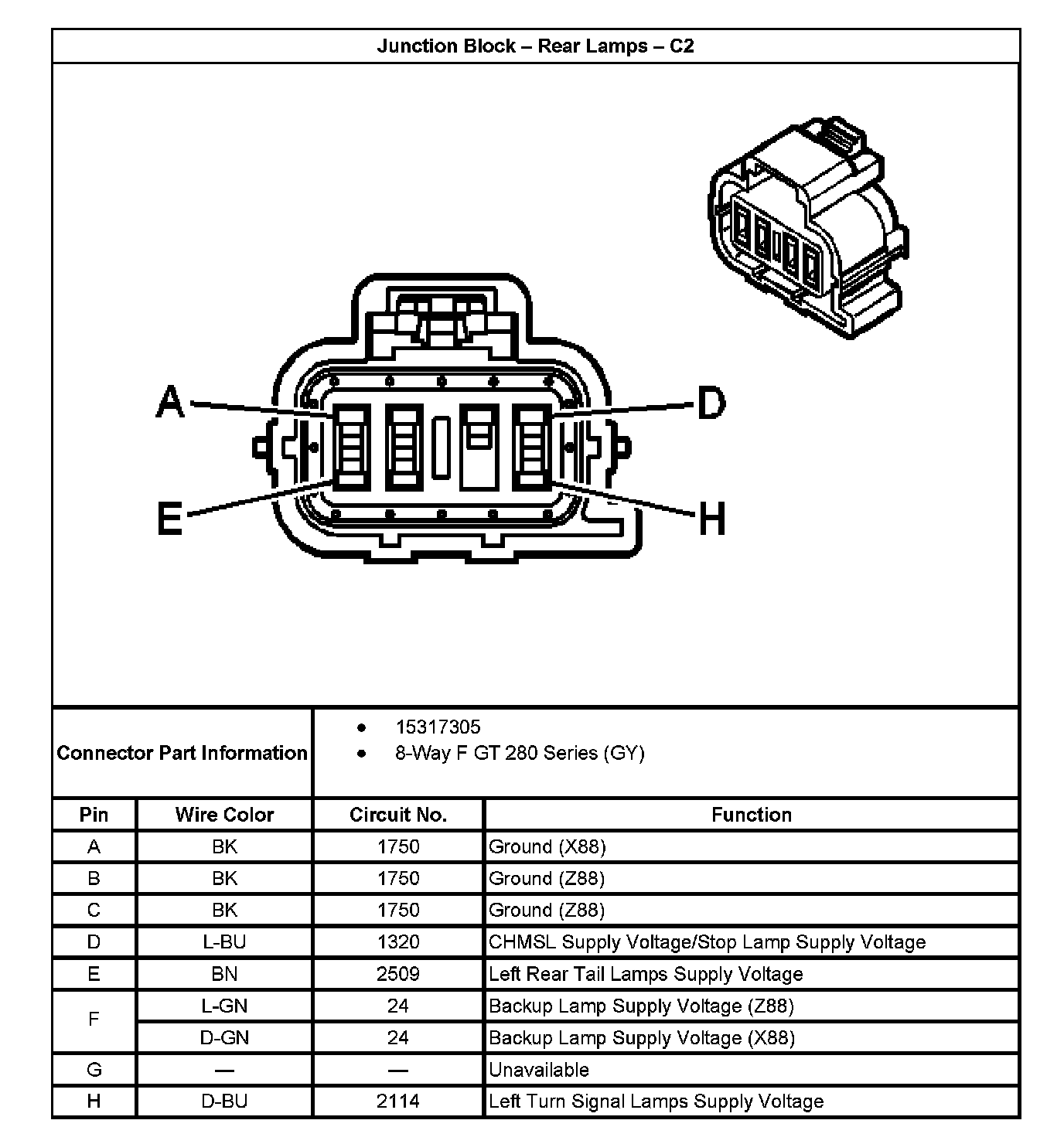

Junction Block - Rear Lamps - C2
Junction Block - Rear Lamps - C2
Junction Block - Rear Lamps - C2:
Junction Block - Rear Lamps - C2:
