Thread Repair
Thread Repair Specifications
Engine Block:
Engine Block - Front View

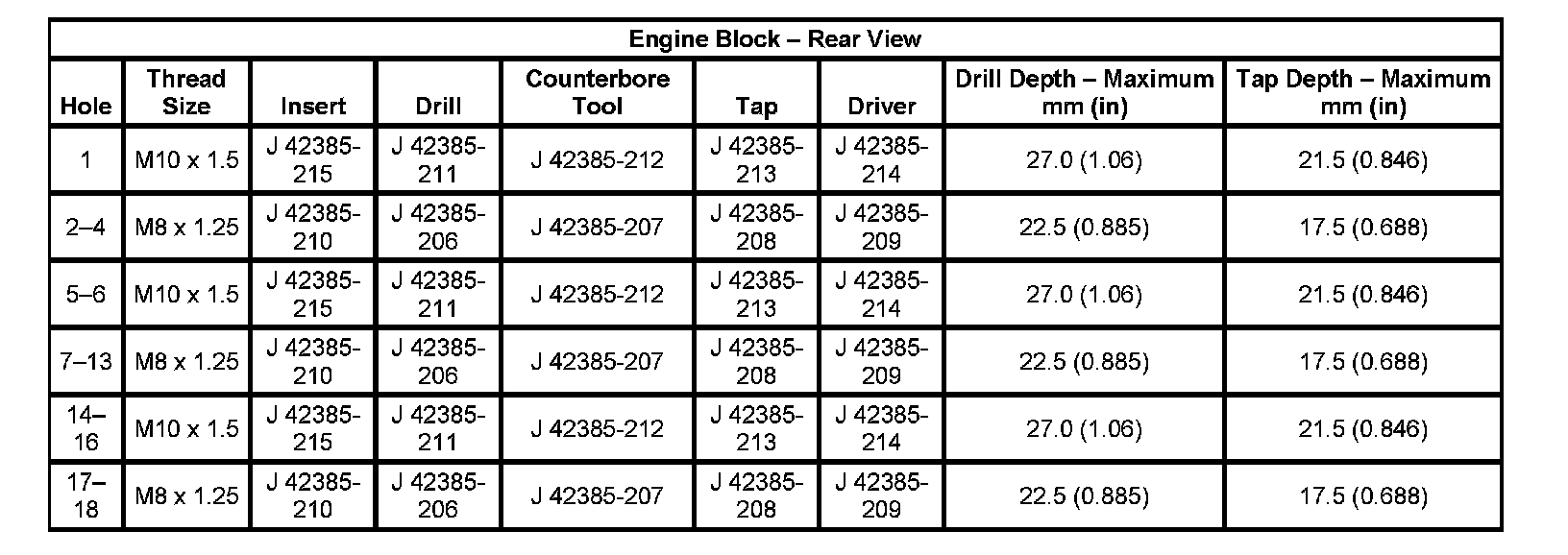

Engine Block:
Engine Block - Rear View

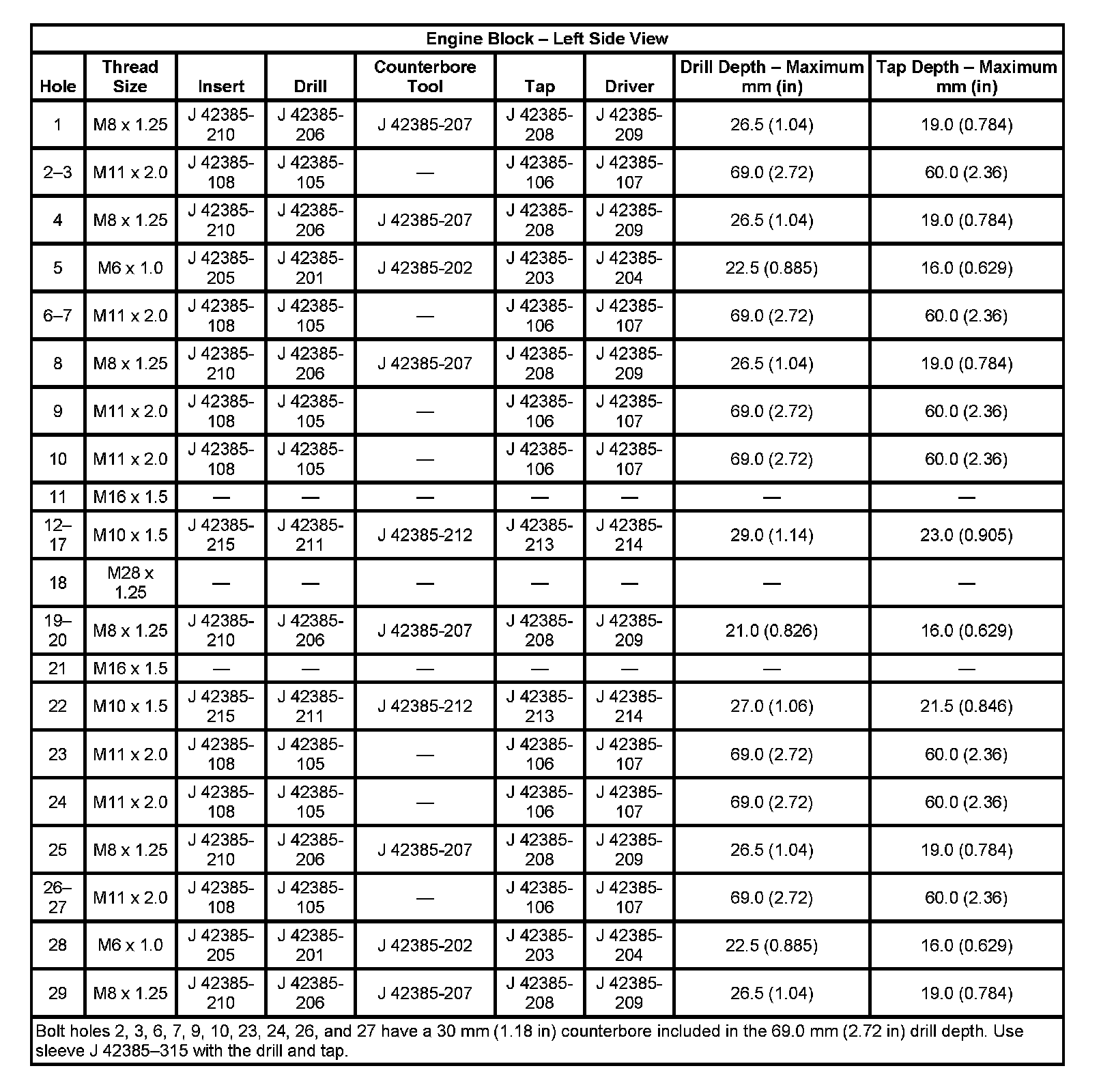

Engine Block:
Engine Block - Left Side View
Engine Block:
Engine Block - Right Side View
Engine Block:
Engine Block - Bottom View
Engine Block:
Engine Block - Top View
Cylinder Head:
Cylinder Head - Top View
Cylinder Head:
Cylinder Head - End View
Cylinder Head:
Cylinder Head - Exhaust Manifold Deck View
Cylinder Head:
Cylinder Head - Intake Manifold Deck View
